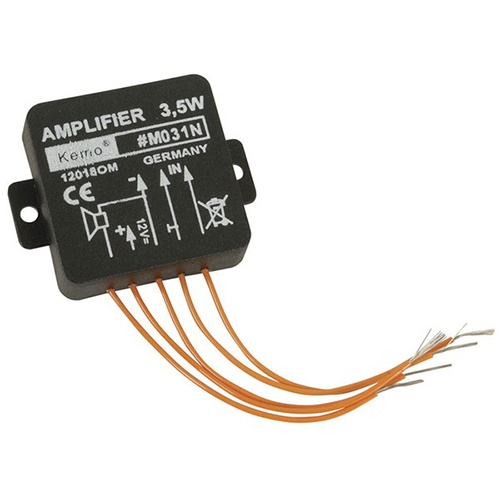

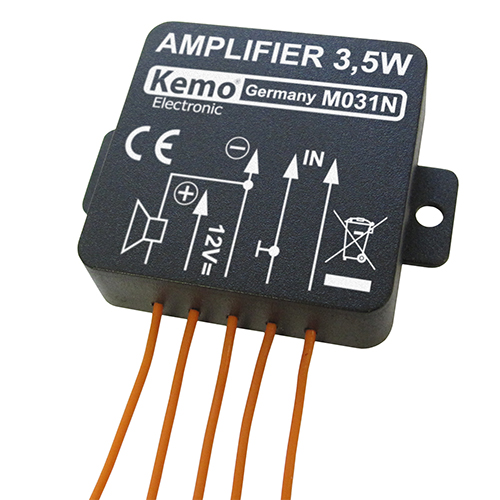

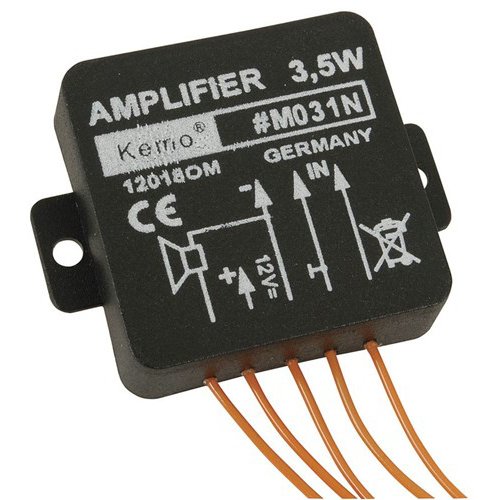

Robust amplifier module for universal use. The module is cast humidity-proof and shake-proof. The casting compound and the module case consist of a special, highly heat-conductive plastic. So no additional heat sinks are needed. The module is protected electronically against overheating and overload.
Specifications:
| Operating voltage |
4.5 - 12 V/DC |
| Output |
max. 3.5 W music power |
| Loudspeaker connection |
4 - 16 ohm |
| Input sensitivity |
< 80 mV |
| Frequency response |
approx. 40 - 20.000 Hz |

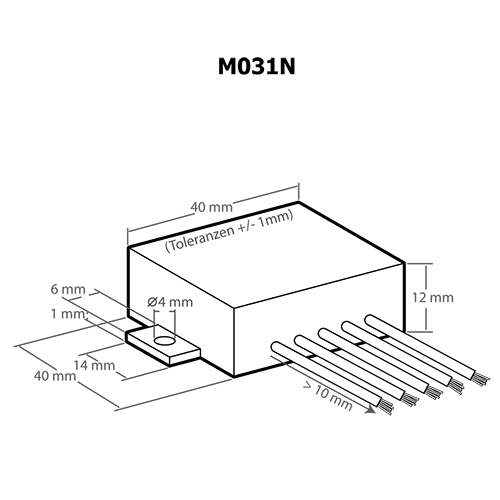

| Dimensions |
approx. 40 x 40 x 12 mm (without fastening straps) |
