JF XY-P15W Bluetooth 5.0 Mini Receiver - 3.5mm AUX DC 8~24v Max 2x30W Output
SKU: WTB0001
Model Name: XY-P15W
Availability:
IN STOCK
Sale Price: $29.50 inc. GST
Quantity:

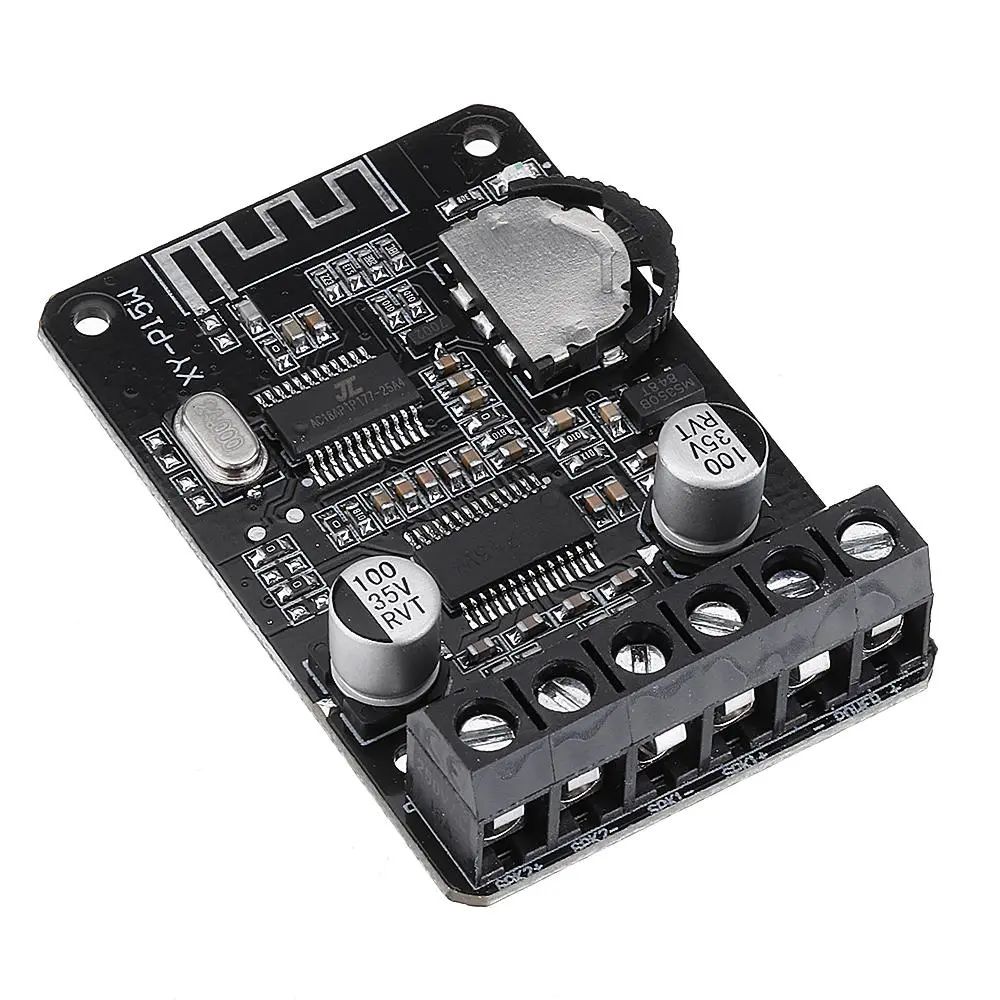

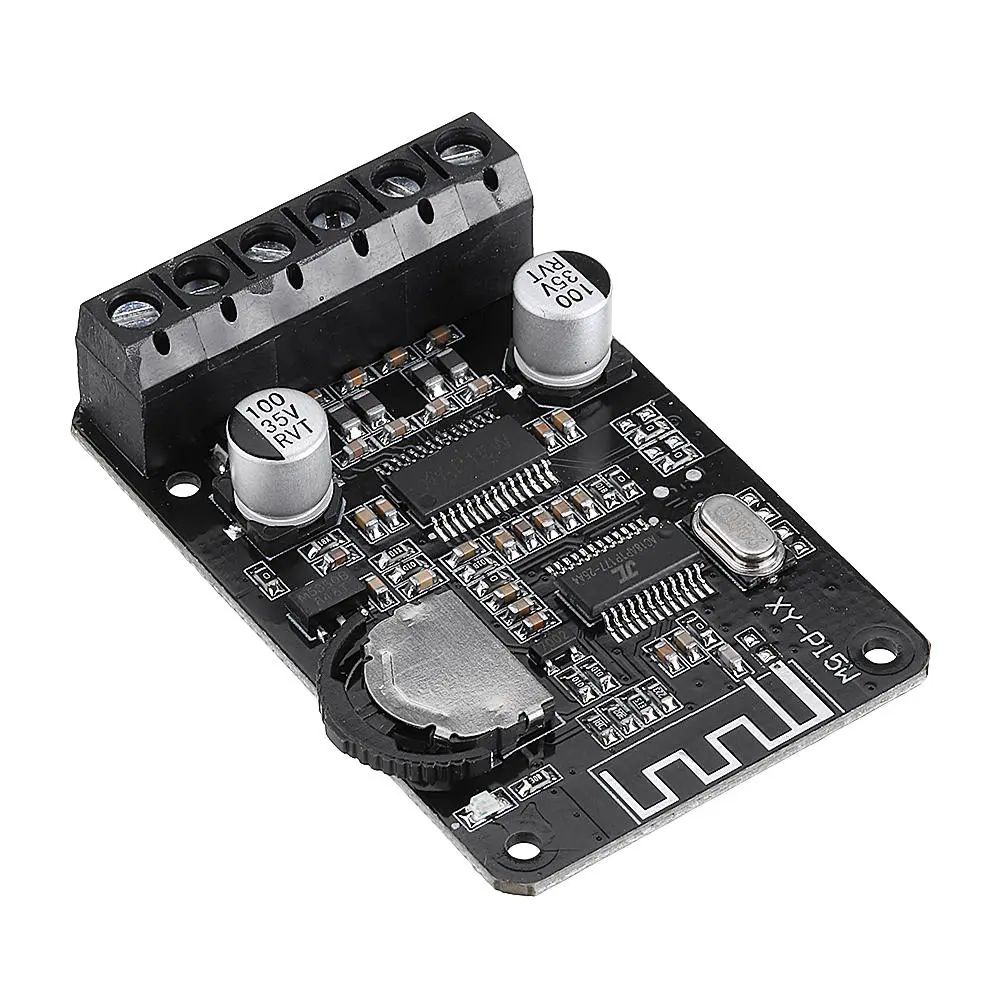

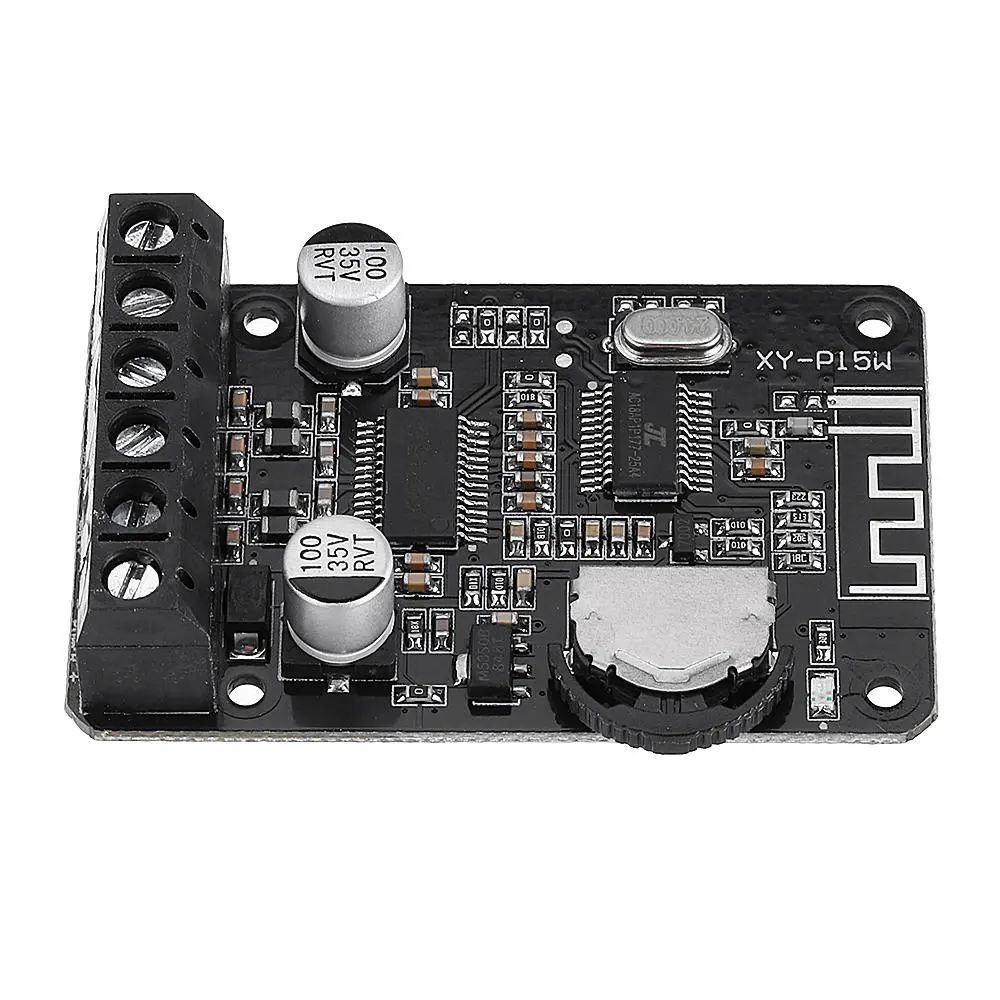

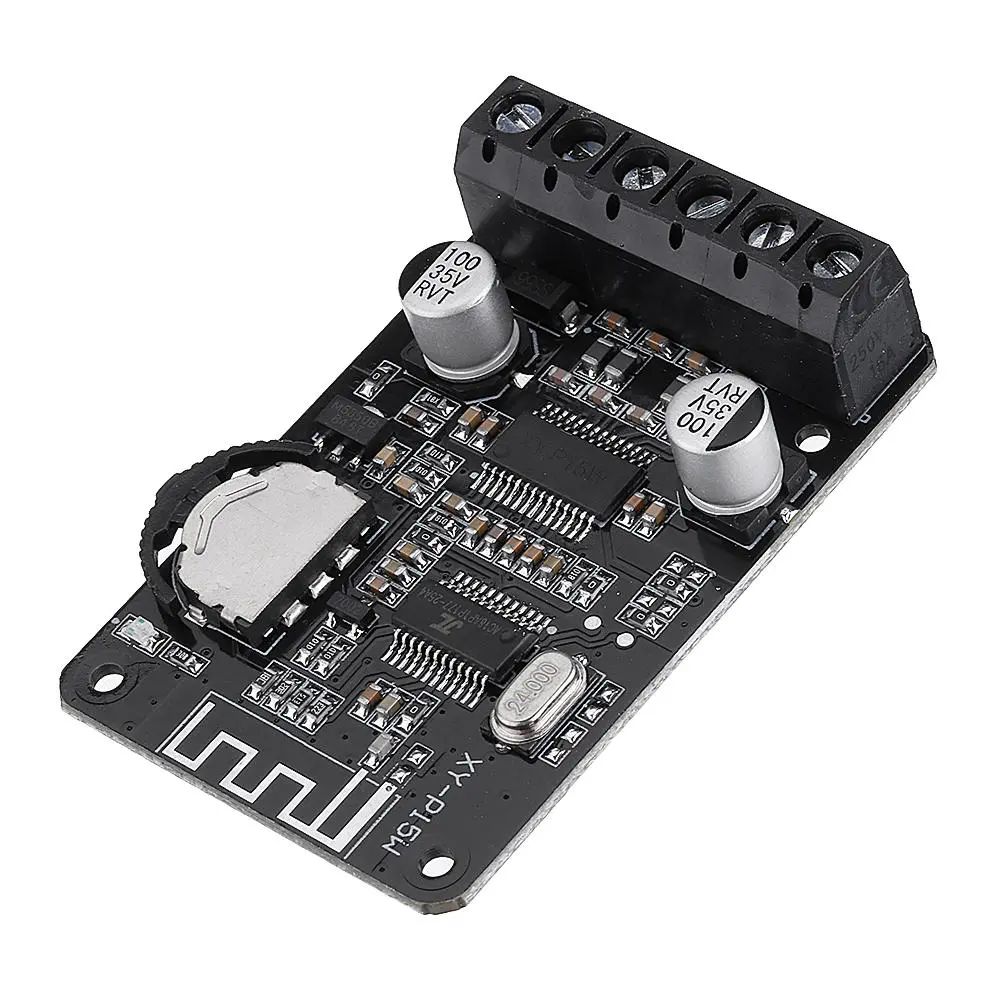

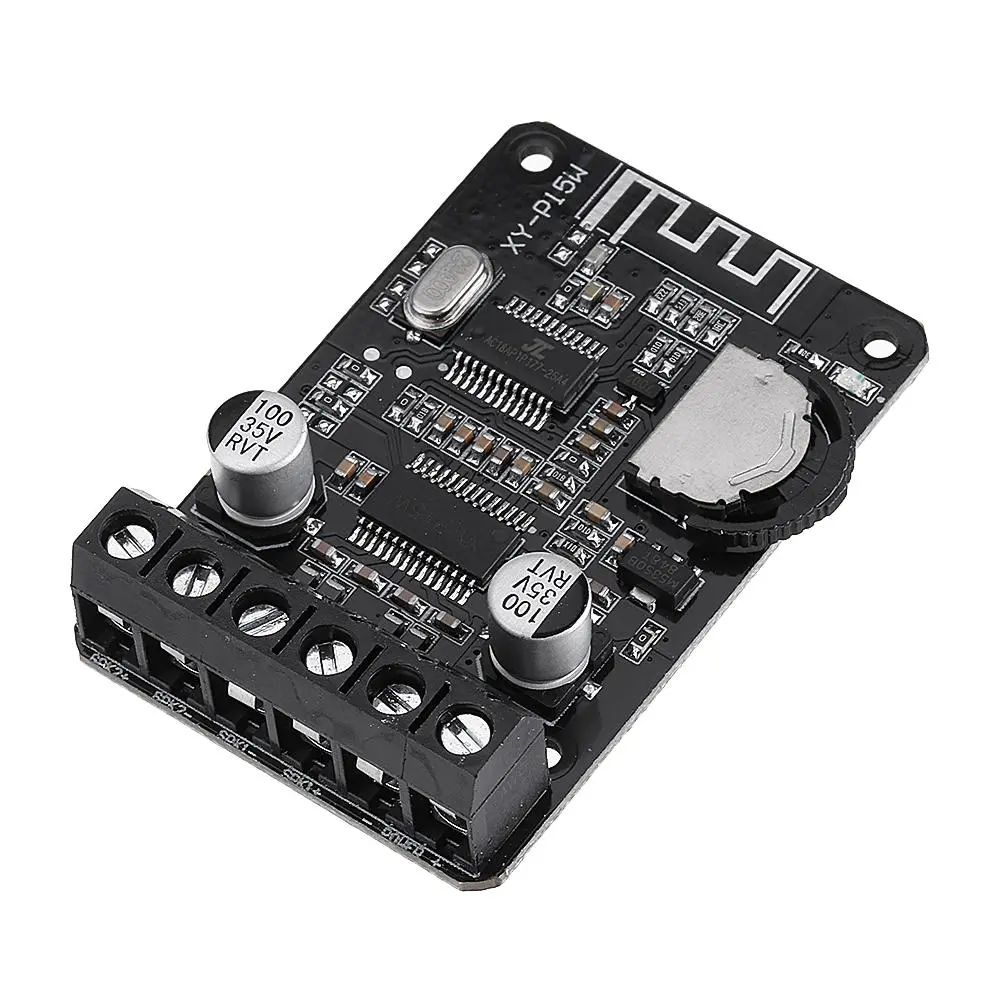

10W 15W 20W XY-P15W Bluetooth 5.0 Amplifier Board 12V 24V Stereo Audio Digital AMP Sound System with Shell Case



Specificaties:
 Product  Bluetooth Digital Power Amplifier Module
 Model  XY-P15W
 Power  DC: 8~24V
 Bluetooth  5.0
 Distance  15 meter (Line-of-sight)
 Chanel  2 (Stereo)
 Output (@1KHz)  16W x 2 @12V 4 ohm
 10W x 2 @12V 8 ohm
 15W x 2 @16V 8 ohm
 20W x 2 @20V 8 ohm
 30W x 2 @24V 8 ohm (Heat Sink Reuiqred)
 Suitable Speakers (30W~150W)  4 ohm (8~12V Power Source)
 8 ohm (8~24V Power Source)
 16 ohm (8~24V Power Source)
 Module Protection  Power Reverse Connection Protection
 Short Circuit Protection
 Self-recovery Overheat Protection

Note:

1). In order to improve the performance of the module, it is recommended to add a heat sink to the power amplifier chip in the reference scenario where the work exceeds 20Wx2.
2). Please read the instruction carefully. We are not responsible for product damage caused by incorrect connection.
