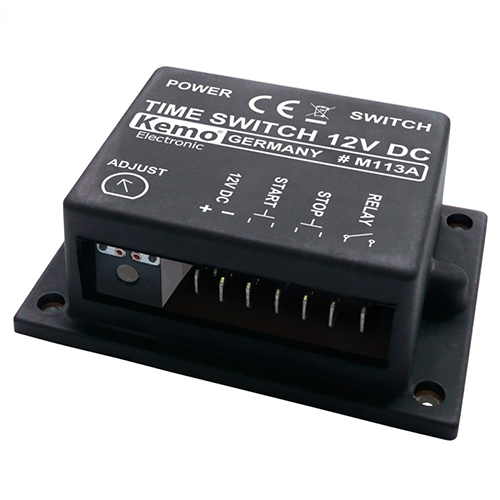

Kemo M113A 12V 3A Timer Module 2 Seconds to 23 Minutes
|
||||||||||||
Time switch approx. 2 sec. up to 23 min. (± 30%)
Switches other devices on after pressing the key and switches them off again automatically by means of the installed relay point 1 x ON (max. 3 A) when the adjusted time has expired. The lapse of time may be interrupted any time with the second key. 2 push-buttons are required for operation.
Datasheet
Specifications:
| Operating voltage | 12 - 15 V/DC |
| Current consumption | approx. 20 mA / 80 mA (relay off / on) |
| Adjustable time | approx. 2 sec. to 23 min., (± 30 %) |
| Connection | via flat-pin plug at the module |
| Displays | 2 (1 x LED operating voltage, 1 x LED relay “ON”) |
| Relay point | 1 x ON, max. 3 A, max 25 V (The installed relay point may also switch up to 230 V/AC, but in this case the safety regulations of VDE like protection against accidental contact, etc. have to be observed) |
| Dimensions | approx. 87 x 60 x 33 mm (with mounting bottom) |
