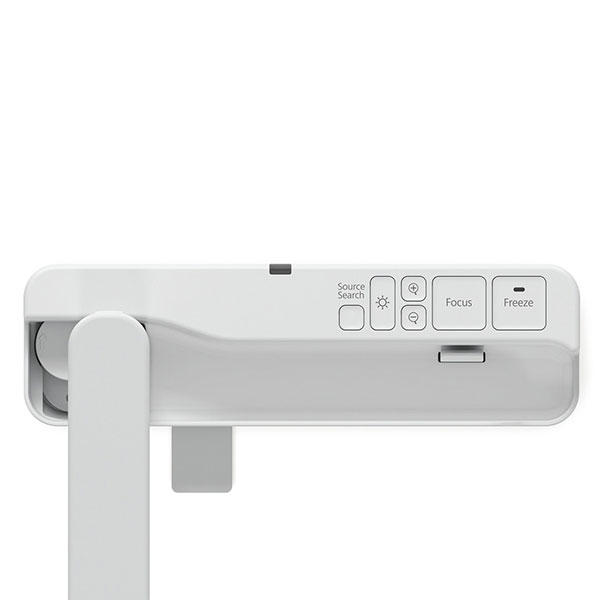

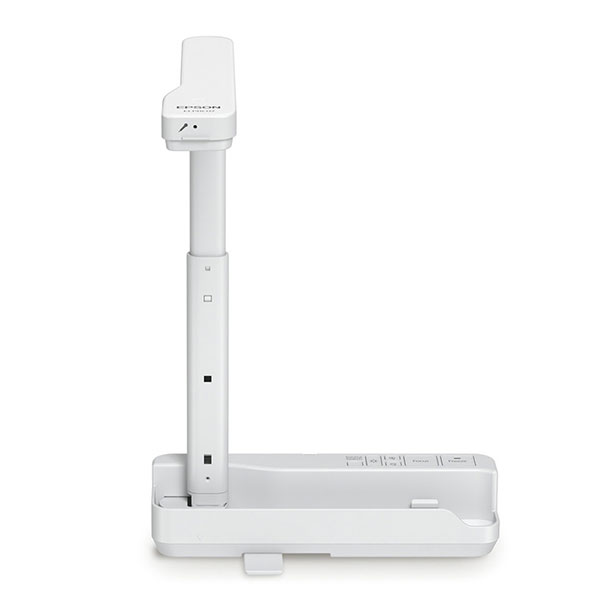

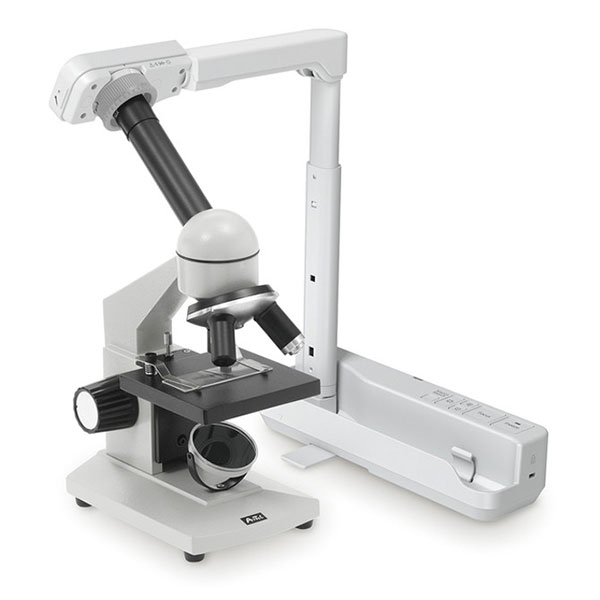

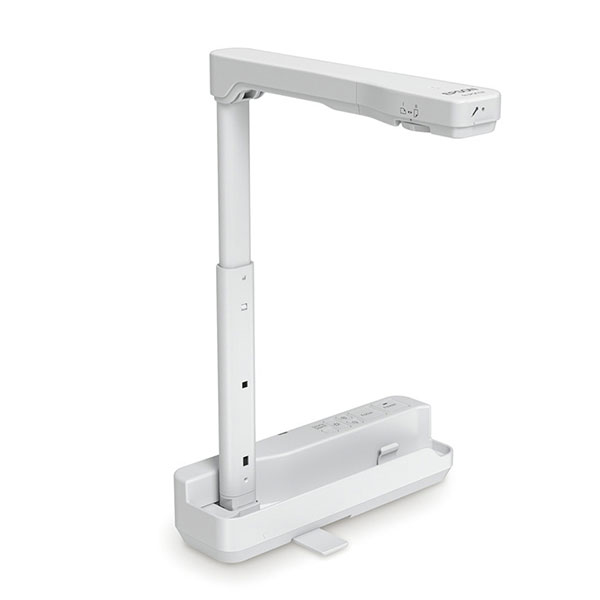

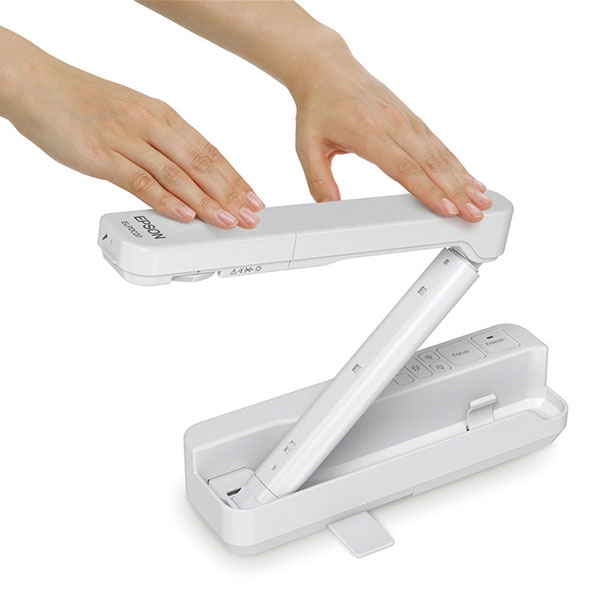

EPSON ELP-DC07 Document Camera (V12H759053)
|
Capture every detail with amazing image quality
Key Features & Benifits
PRODUCT TYPE | Document Camera | |||
---|---|---|---|---|
PRODUCT NAME | ELP-DC07 Document Camera | |||
PRODUCT CODE | V12H759053 | |||
WHAT'S IN THE BOX | Epson ELPDC07 Document Camera, 3m USB Cable, Instruction Sticker, User's Manual Set CD ROM, Quick Start Guide, Warranty Card | |||
SPECIFICATIONS | ||||
CAMERA | Pick-up Device | 1/2.7" CMOS Sensor | ||
Effective Pixels | 2MP* | |||
Native Resolution | 1080p | |||
Aspect Ratio | 16:9 | |||
Frame Rate | Maximum 30fps | |||
Output Resolution |
USB : VGA / SVGA / XGA / SXGA / WXGA / 720p / 1080p |
|||
Illumination | White LED x 2 | |||
Brightness | 100 lx or above (at B4 shooting area) | |||
OPTICS | Lens | Digital Zoom f/2 | ||
Shooting Area | Maximum 275 x 491 mm at 1080p output resolution | |||
Zoom | 8 x Digital Zoom | |||
Illumination | White LED x 2 | |||
Focus | Auto | |||
FUNCTIONS | ||||
White Balance | Yes (Auto) | |||
Exposure | Yes (Auto) | |||
Brightness Control | Yes | |||
Image Rotation | Yes | |||
Image Freeze | Yes | |||
Source Search | Yes | |||
Aspect Ratio | Yes (Auto) | |||
Digital Scroll Pan/Tilt | Yes | |||
Flicker Reduction | Yes (50Hz, 60Hz) | |||
INTERFACE | ||||
Input | In-built MIC | |||
Output | USB-B | |||
DIMENSIONS | ||||
Dimensions (Open) (DxWxH) | 76 x 260 x 388 mm | |||
Dimensions (Closed) (DxWxH) | 76 x 260 x 60 mm | |||
Weight | Approx. 1.0kg | |||
OTHER | ||||
Kensington Lock | Yes | |||
Power Supply Voltage | 5V (USB Bus power) | |||
Power Frequency | 50/60Hz | |||
Output Voltage of AC Power Adapter | DC 12V | |||
Power Consumption | less than 2.5W | |||
PC applications* | Easy Interactive Tools Ver 4.21 (for Windows) Easy Interactive Tools Ver 4.20 (for Mac OS X) |
|||
WARRANTY | ||||
Standard Warranty | 12 months | |||
*N.B. The effective number of pixels is 2.07M (1920x1080p) | ||||
