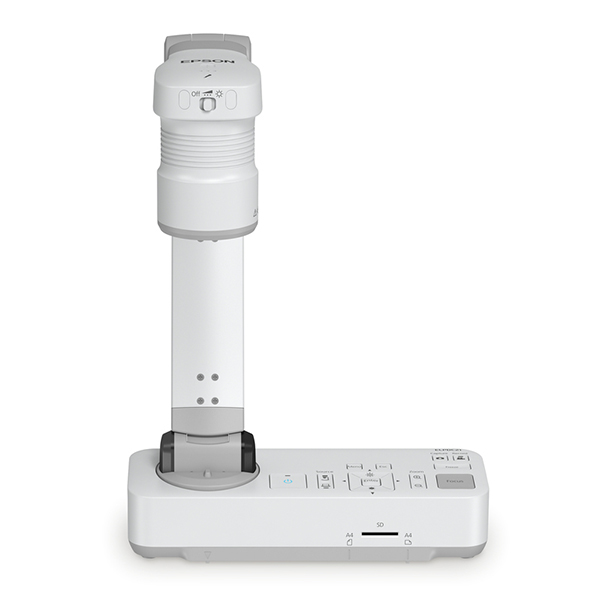

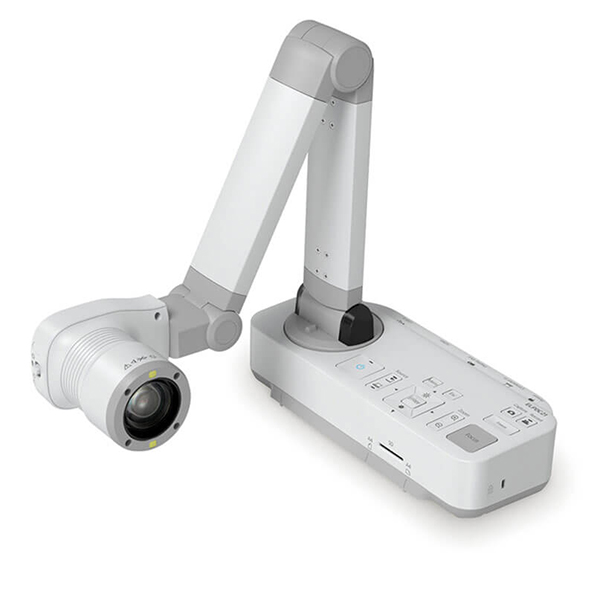

EPSON ELP-DC21 Document Camera (V12H758053)
|
||||||||||||
Take lessons further with the Full HD 1080p resolution Epson ELP-DC21 document camera. This flexible document camera easily captures and displays books, 3D objects and experiments. Simplified connectivity makes installation and control easier than ever before. The ELP-DC21 has a robust and durable design, with great security features allowing it to be permanently placed in a classroom or boardroom. Teachers can use the ELP-DC21 to demonstrate the view from a microscope, a live experiment in science class or display fine prints from an architectural drawing onto the bigger projected screen. Compatible with Epson EIT (Easy Interactive Tools) software, users can take advantage of features such as split screen mode, video recording with audio, image capturing and save recordings to an SD card or computer.
With a large, highly efficient 1/2.7" CMOS imaging sensor, the ELP-DC21 delivers bright images with high quality that will bring life to classroom activities. Paired with 12x optical zoom plus 10x digital zoom capabilities, capturing the finest details of an object is a breeze. Even large objects are no issue for the ELP-DC21. Large capture area (maximum 297 x 526 mm at 1080p resolution) makes it easy to display full A3 sized pages.
At 30 frames per second video playback is seamless. Recording live images and video at Full HD 1080p resolution in any task has never been so ultra-smooth and astonishing.
Connect the ELP-DC21 to an Epson projector, and it automatically detects the projector's native resolution, whether it’s XGA, WXGA, 720p or 1080p and optimises output to suit. One touch auto-focus and an easy to understand control panel make the ELP-DC21 a flexible teaching tool for a more interactive learning experience that will engage students.
The mechanical body structure allows the camera to rotate 90 degrees vertically and horizontally so it can also be used as a webcam to capture classroom activities or for videoconferencing. Capture, store and present images with an SD card or computer.
Capturing audio along with video is simple thanks to the built in microphone, and brightening up an image is as simple as turning on the incorporated LED lighting system.
The ELP-DC21 can easily display two A4 sized documents. The Split Screen function is a great collaboration tool allowing for side-by-side display. Project a live feed from the camera along with a picture or movie file from the SD card.
The ELP-DC21 also features an adapter which enables users to connect to a broad range of microscopes. ELP-DC21 is now compatible with Epson EIT (Easy Interactive Tools), users can take advantage of features such as split screen mode, video recording with audio, image capturing and saving recordings to an SD card or computer.

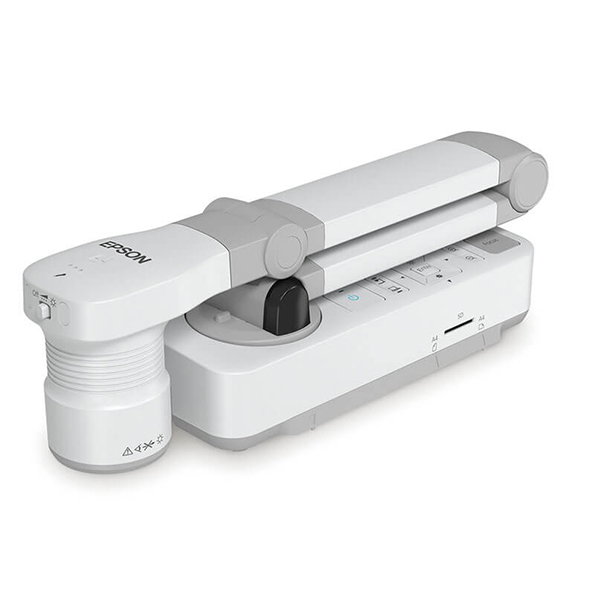

The compact design is ideal for space-constrained areas and the robust metal arm offers durability. Kensington lock, built-in security bar and mounting holes offer added peace of mind.

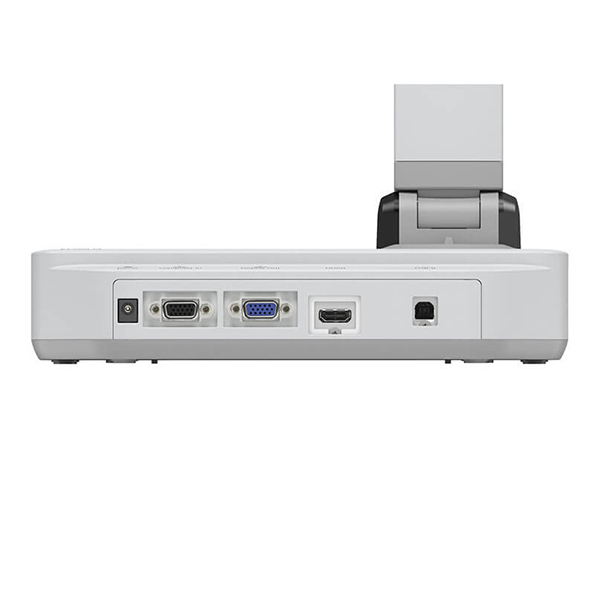

The versatile yet simple connectivity of the ELP-DC21 makes setup quick and easy. USB or VGA for easy connection to a PC/MAC; HDMI and VGA for connecting to a projector; and an SD card slot for opening or saving files directly from the document camera.

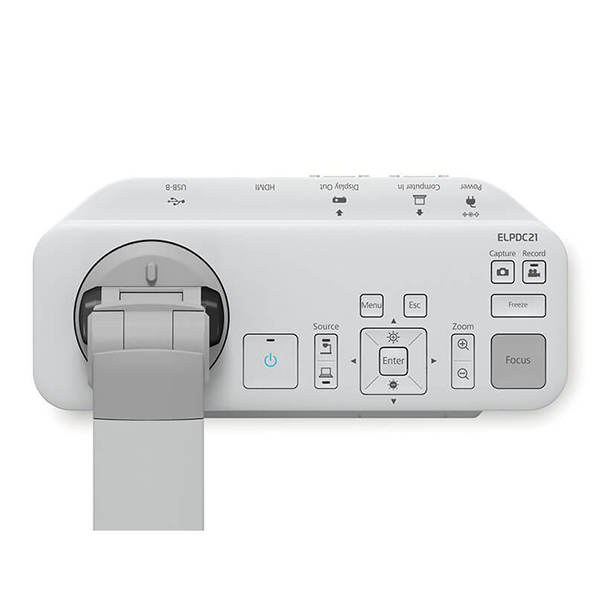

Have all the key functions at your fingertips. The newly added shortcuts allow for quick access to the SD card viewer, image rotation and switching between sources.
| PRODUCT TYPE | Document Camera | |||
|---|---|---|---|---|
| PRODUCT NAME | Epson ELP-DC21 Document Camera | |||
| PRODUCT CODE | V12H758053 | |||
| WHAT'S IN THE BOX | Epson ELPDC21 Document Camera, External AC Power Adaptor with Power Cord, VGA Cable, 3m USB Cable, User's Manual Set CD ROM, Remote Control, 2 x AA Batteries, Microscope Adaptor,Quick Start Guide, Warranty Card | |||
| SPECIFICATIONS | ||||
| CAMERA | Pick-up Device | 1/2.7" CMOS Sensor | ||
| Effective Pixels | 2MP* | |||
| Native Resolution | 1080p | |||
| Aspect Ratio | 16:9 | |||
| Frame Rate | Maximum 30fps | |||
| Output Resolution | Analogue: SXGA / XGA / WXGA / 1080p USB : VGA / SVGA / XGA / SXGA / WXGA / 720p / 1080p HDMI : 480p / 720p / 1080p |
|||
| Illumination | White LED x 2 (Variable LED Light) | |||
| Brightness | 250lx or above (at A3 shooting area) | |||
| OPTICS | Lens | Optical Zoom f/3.4-5 | ||
| Shooting Area | Maximum 297 x 526 mm at 1080p output resolution | |||
| Zoom | 12x Optical Zoom 10x Digital Zoom |
|||
| Illumination | White LED x 2 | |||
| Focus | Auto | |||
| FUNCTIONS | ||||
| White Balance | Yes (Auto) | |||
| Exposure | Yes (Auto) | |||
| Brightness control | Off, Middle, High | |||
| Image Rotation | Yes | |||
| Image Freeze | Yes | |||
| Source Search | Yes | |||
| Aspect Ratio | Yes (Auto) | |||
| Digital Scroll Pan/Tilt | Yes | |||
| Flicker Reduction | Yes (50Hz, 60Hz) | |||
| Negative/Positive Conversion | Yes | |||
| Colour & Black & White Selection | Yes | |||
| Split Screen | Yes | |||
| Time Lapse | Yes | |||
| Microscope View | Yes (Microscope Adaptor Included) | |||
| SD Card Slot | Yes | |||
| Still Image | Saving Formats & Slideshow | Capture: JPEG (Resolution: 1920 x 1080) Slideshow : JPEG (Resolution 7680 x 5760) |
||
| Video Movie | Video Capture & Play | Capture: AVI (Motion JPEG + PCM) Resolution: 720p File size: up to 2GB |
||
| INTERFACE | ||||
| Input | VGA, in-built MIC | |||
| Output | VGA, USB-B, HDMI | |||
| DIMENSIONS | ||||
| Dimensions (Open) (DxWxH) | 502 x 270 x 328 mm | |||
| Dimensions (Closed) (DxWxH) | 120 x 375 x 122 mm | |||
| Weight | 2.6kg | |||
| OTHER | ||||
| Kensington Lock | Yes | |||
| Power Supply Voltage | 100 - 240V AC | |||
| Power Frequency | 50/60Hz | |||
| Output Voltage of AC Power Adapter | DC 12V | |||
| Power Consumption(Standby Mode) | Less than 0.5W | |||
| PC applications* | Easy Interactive Tools Ver 4.11 (for Windows) Easy Interactive Tools Ver 4.10 (for Mac OS X) |
|||
| Warranty | ||||
| Standard Warranty | 12 Months | |||
| *N.B. The effective number of pixels is 2.07M (1920x1080p) | ||||
| Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. | ||||
Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to – do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.
