StarTech PCIUSB3S4 4 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA / SP4 Power
|
||||||||||||
The PCIUSB3S4 4-Port PCI to USB 3.0 Card enables legacy PCI slots to support the SuperSpeed USB 3.0 standard, which is capable of data transfer rates up to 5 Gbps. Using USB 3.0 devices with this card will increase data transfer rates with up to 1.3 Gbps of available bandwidth (PCI bus limit) - more than doubling performance compared to a USB 2.0 connection.
This versatile USB 3.0 adapter includes an optional SATA power connector which allows each USB port to deliver up to 900mA of power to connected USB 3.0 devices - suitable for even the most power hungry devices.
A perfect solution for older PCI-based systems or computers with only PCI expansion slots remaining, the card allows those systems to stay relevant and up-to-date with the latest USB technology. The card is also backward compatible with USB 2.0 and 1.x devices, so it will not only work with any future USB 3.0 devices, but will also support older devices.
The PCIUSB3S4 4-Port PCI USB 3.0 Card is backed by StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage| Warranty Information | |
|---|---|
| Warranty | Lifetime |
| Hardware | |
| Bus Type | PCI / PCI-X (5 / 3.3V) |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | NEC uPD720202 |
| Interface | USB 3.0 |
| Ports | 4 |
| Performance | |
| Maximum Data Transfer Rate | 1.3 Gbps (PCI Bus) |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Connector(s) | |
| Connector Type(s) | 1 - PCI / PCI-X (Universal 3.3 & 5V, 32-bit) |
| External Ports | 4 - USB Type-A (9 pin) USB 3.0 Female |
| Internal Ports | 1 - SATA Power (15 pin) Plug |
| 1 - SP4 (4 pin, Small Drive Power) Plug | |
| Software | |
| OS Compatibility | Windows XP, Vista, 7, 8, 8.1, 10 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016 |
| Special Notes / Requirements | |
| System and Cable Requirements | Available PCI slot |
| Available SATA or Floppy power connector | |
| Environmental | |
| Humidity | 15% ~ 90% RH |
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -25°C to 70°C (13°F to 158°F) |
| Physical Characteristics | |
| Color | Red |
| Product Height | 2.6 in [65 mm] |
| Product Length | 5.2 in [133 mm] |
| Product Weight | 2.8 oz [80 g] |
| Product Width | 0.8 in [20 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 0.5 lb [0.2 kg] |
| What's in the Box | |

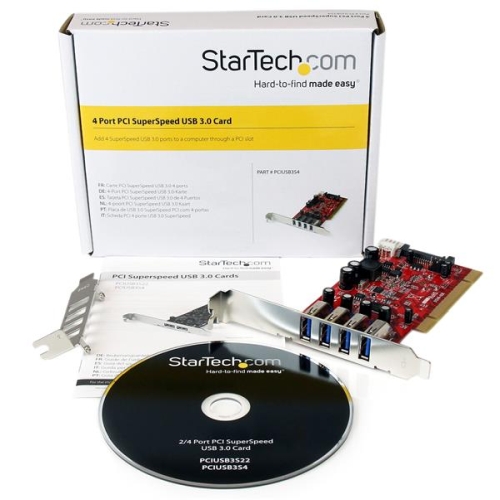

| Included in Package | 1 - PCI USB 3.0 Card |
| 1 - Low Profile Bracket | |
| 1 - Driver CD | |
| 1 - Instruction Manual | |
