StarTech4 PEXUSB4DP 4 Port PCI Express Low Profile High Speed USB Card
SKU: BY00481
Model Name: PEXUSB4DP
Availability:
IN STOCK
Sale Price: $127.70 inc. GST
Quantity:

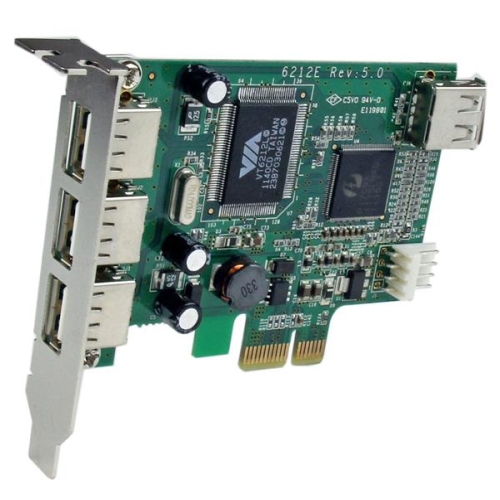

4 Port PCI Express Low Profile High Speed USB Card

The PEXUSB4DP is a low profile 4 port USB card designed for versatility and performance.

Providing simple system expansion for added peripheral connections, this PCI Express USB card adds 3 external USB 2.0 slots and 1 internal USB 2.0 slot, with support for high speed USB 2.0 data transfer rates of up to 480 Mbps, and includes WHQL certified drivers and easy plug and play installation.

Capable of adapting to virtually any PC case form factor, the low profile USB card includes a standard profile bracket for installation in full form factor cases.

The StarTech.com Advantage
  • Add 4 USB 2.0 ports to a low profile/small form factor (SFF) computer system, to conserve expansion port availability
  • Dedicated power input ensures each port receives the full amount of power capable under USB 2.0 specification
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support
Features

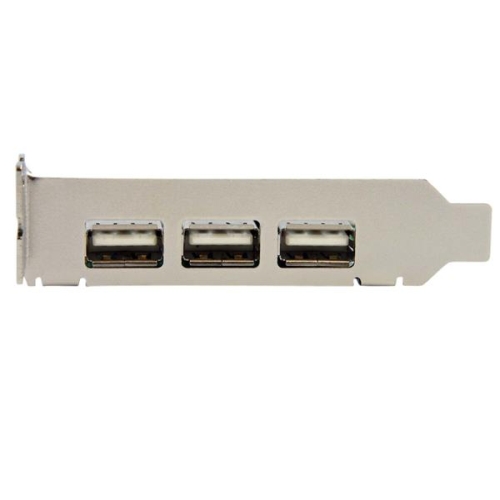

  • 3 external and 1 internal USB 2.0 port
  • High Speed USB 2.0 compliant, with transfer rates up to 480Mbps
  • Backward compatible with USB 1.0/1.1 devices
  • Provide up to 500mA of power per port with dedicated power input
  • Plug-and-Play compatible
  • Includes a full profile installation bracket
Warranty Information
Warranty 2 Years
Hardware
Bus Type PCI Express
Card Type Low Profile (SP bracket incl.)

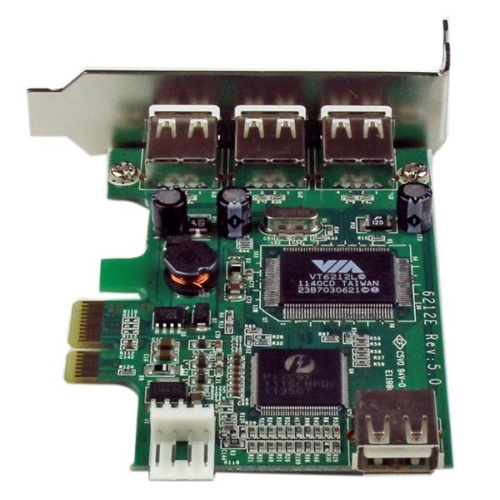

Chipset ID VIA - VT6212
Industry Standards PCI Express One Lane 2.5Gb/s
Interface USB 2.0
Ports 4
Performance
Type and Rate USB 2.0 - 480 Mbit/s
Connector(s)
Connector Type(s) 1 - PCI Express x1 Male
External Ports 3 - USB Type-A (4 pin) USB 2.0 Female
Internal Ports 1 - SP4 (4 pin, Small Drive Power) Male
  1 - USB Type-A (4 pin) USB 2.0 Female
Software
OS Compatibility Windows 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2016
Mac OS X 10.6 to 10.10
Linux 3.5.x to 4.4.x LTS versions only
Special Notes / Requirements
System and Cable Requirements PCI Express enabled computer with an available PCI Express x1 slot or higher
Environmental
Humidity 80% RH
Operating Temperature -0°C to 75°C (32°F to 167°F)
Storage Temperature -40°C to 125°C (-40°F to 257°F)
Physical Characteristics
Product Height 0.8 in [20 mm]
Product Length 3.5 in [90 mm]
Product Weight 1.6 oz [46 g]
Product Width 3.1 in [80 mm]
Packaging Information
Shipping (Package) Weight 0.4 lb [0.2 kg]

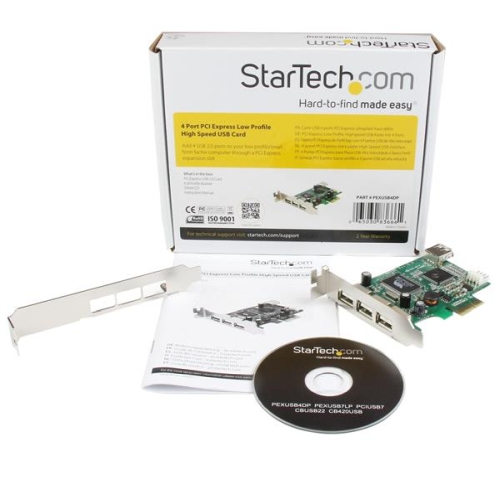

What's in the Box
Included in Package 1 - PCI Express USB 2.0 Card
  1 - Full Profile Bracket
  1 - Driver CD
  1 - Instruction Manual
