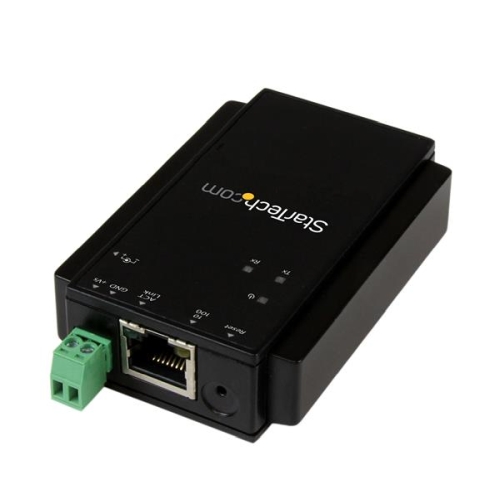

StarTech NETRS232 1 Port RS-232 Serial to IP Ethernet Device Server
|
||||||||||||
This 1-Port Serial Device Server lets you remotely access and manage an RS232 serial device over a local or wide area network (LAN/WAN), for a simple and cost-effective serial-over-IP control solution.
For more control options, the device server is compatible with the free, StarTech.com Serial Device Application Software NETRSAPP. When coupled with the NETRS232, this handy application for iOS, Android, and Chrome Browser lets you build a custom serial control interface that’s tailored to your specific application.
For installation flexibility across a variety of environments, you can power the device server using the provided 12V DC power adapter, or using the integrated 10~30V DC terminal block.
Plus, the device server is DIN rail mountable for out-of-the-way installations.
To help ensure reliable performance and prevent possible damage, the serial device server offers 15KV ESD (Electrostatic Discharge) protection, so you can rest assured that the device server won’t become damaged due to externally generated ESD.
This highly-customizable device server is easy to configure to suit your application. For easy setup, Windows users can use the provided Virtual COM port software, or the versatile web-based interface.
The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux). Plus, it supports VCOM, TCP Server/Client, UDP, HTTP, DHCP, ICMP(PING), Static IP, and ARP protocols
Download the StarTech.com serial control software from the Apple App Store, the Google Play™ Store, or the Chrome Web Store.
The NETRS232 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Features| Warranty Information | |
|---|---|
| Warranty | 2 Years |
| Hardware | |
| Industry Standards | IEEE 802.3, IEEE 802.3u |
| Interface | Serial |
| Ports | 1 |
| Performance | |
| Auto MDIX | Yes |
| Compatible Networks | 10/100 Mbps |
| Data Bits | 5, 6, 7, 8 |
| Flow Control | RTS/CTS, None |
| Max Baud Rate | 230.4 Kbps |
| Parity | None, Even, Odd, Space, Mark |
| Remote Management Ability | Yes |
| Serial Protocol | RS-232 |
| Stop Bits | 1, 1.5, 2 |
| Supported Protocols | VCOM, TCP Server, TCP Client, UDP, HTTP, DHCP, ICMP(PING), Static IP, ARP |
| Surge Protection | 15KV ESD (Electrostatic Discharge) Protection |
| Connector(s) | |
| Connector Type(s) | 1 - DB-9 (9 pin, D-Sub) Male |
| 1 - RJ-45 Female | |
| 1 - Terminal Block (2 Wire) | |
| Software | |
| OS Compatibility | Windows 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016 |
| Indicators | |
| LED Indicators | 1 - Power |
| 1 - Tx | |
| 1 - Rx | |
| 1 - 10/100Mbps LAN | |
| 1 - Link/Activity | |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.5 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 1.2 A |
| Output Voltage | 12 DC |
| Plug Type | H |
| Power Consumption (In Watts) | 14.4 |
| Power Source | AC Adapter Included |
| Environmental | |
| Humidity | 0~90% RH |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 0.9 in [22 mm] |
| Product Length | 3.7 in [95 mm] |
| Product Weight | 2.2 oz [63 g] |
| Product Width | 2.2 in [55 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 15.3 oz [433 g] |

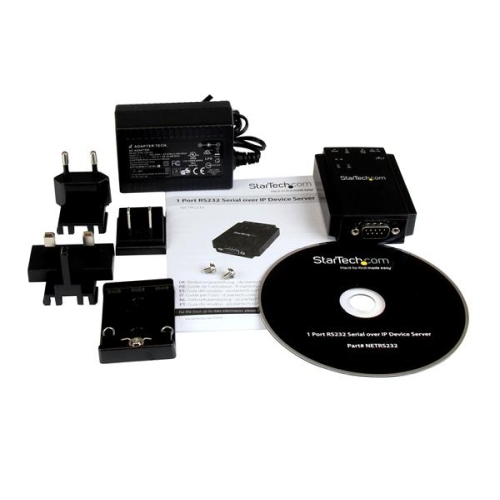

| What's in the Box | |
| Included in Package | 1 - Serial over IP Device Server |
| 1 - DIN Rail Kit | |
| 1 - Terminal Block | |
| 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand | |
| 1 - Software CD | |
| 1 - Instruction Manual | |
