StarTech PEXUSB3S25 2-Port PCIe USB3.0 Card Adapter w/ UASP-LP4 Power
|
||||||||||||

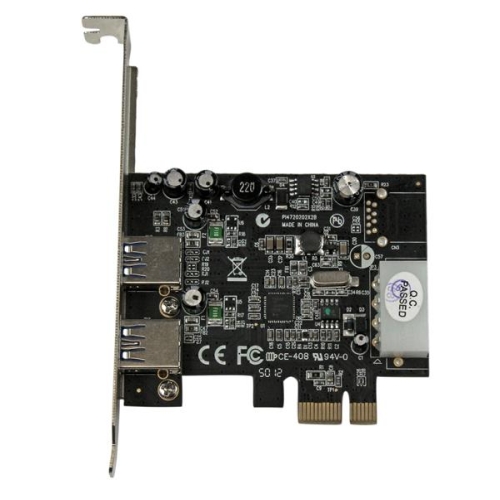

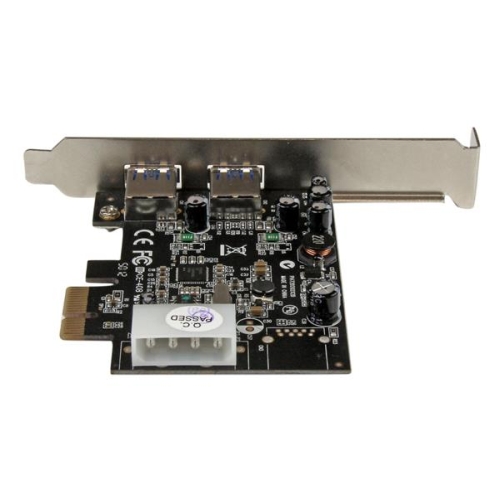

The PEXUSB3S25 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to your PCI Express-enabled computer system, with an optional LP4 power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0).
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
UASP is supported in Windows® 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
The StarTech.com Advantage| Warranty Information | |
|---|---|
| Warranty | 2 Years |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | Renesas / NEC - µPD720202 |
| Industry Standards | USB 3.0 Specification Rev. 1.0 USB Battery Charging Specification Rev. 1.2 PCI Express Base Specification Rev. 2.0 Intel xHCI Specification Rev. 1.0 |
| Interface | USB 3.0 |
| Port Style | Integrated on Card |
| Ports | 2 |
| Performance | |
| Maximum Cable Length | 9.8 ft [3 m] |
| Maximum Data Transfer Rate | 5 Gbps |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Connector(s) | |
| Connector Type(s) | 1 - PCI Express x1 Male |

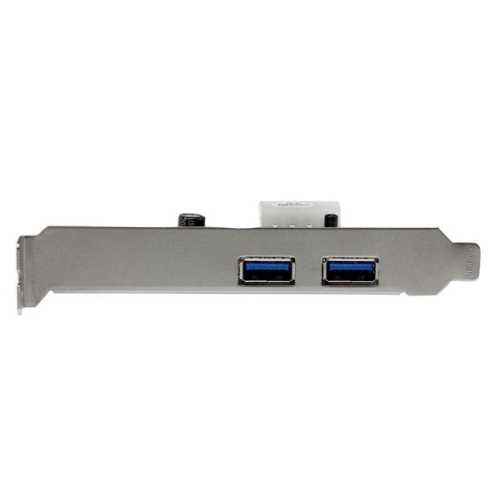

| External Ports | 2 - USB Type-A (9 pin) USB 3.0 Female |
| Internal Ports | 1 - LP4 (4 pin, Molex Large Drive Power) Male |
| Software | |
| OS Compatibility | Windows Vista, 7, 8, 8.1, 10 Windows Server 2008 R2, 2012, 2012 R2, 2016 Linux 2.6.31 to 4.4.x LTS versions only |
| Special Notes / Requirements | |
| Note | Devices that do not comply with the USB Battery Charging Specification may only receive standard USB power. |
| System and Cable Requirements | Available PCI Express slot |
| Environmental | |
| Humidity | 5~85% RH |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Physical Characteristics | |
| Product Height | 4.7 in [120 mm] |
| Product Length | 3.2 in [82 mm] |
| Product Weight | 1.8 oz [51 g] |
| Product Width | 0.7 in [18 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 5.4 oz [153 g] |

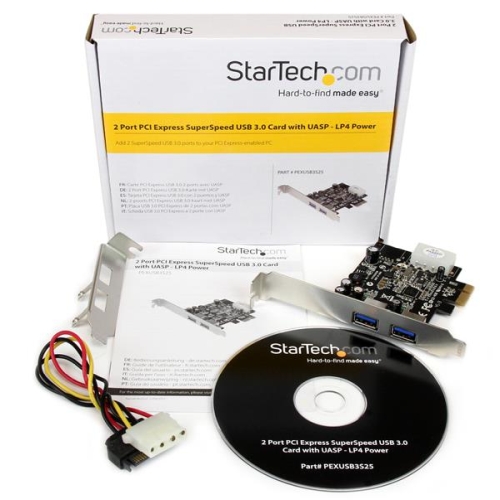

| What's in the Box | |
| Included in Package | 1 - PCIe USB 3.0 Card |
| 1 - Low Profile Bracket | |
| 1 - SATA to LP4 Cable | |
| 1 - Driver CD | |
| 1 - Instruction Manual | |
