StarTech PEXUSB3S23 2 Port PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power
SKU: BF01921
Model Name: PEXUSB3S23
Availability:
IN STOCK
Sale Price: $76.70 inc. GST
Quantity:

2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power

The PEXUSB3S23 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to any PCI Express-enabled computer system. The USB card requires SATA power for functionality, and delivers 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0) via your computers SATA power connector.

The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.

The StarTech.com Advantage
  • Increase efficiency of your USB 3.0 devices with up to 5 Gbps of bandwidth
  • Fits into full or low profile/small form factor (SFF) systems, with a dual profile design
Features
  • Provides two external USB 3.0 connections
  • Supports data rates up to 5 Gbps
  • SATA power connector (required) provides up to 900mA per USB port
  • Compliant with PCI Express 2.0 specifications
  • Fully compliant with USB 3.0 rev 1.0 and Intel xHCI rev 1.0 specifications
  • Backward compatible with USB 2.0 and USB 1.0/1.1 devices
  • Includes a Low Profile/half-height installation bracket
Warranty Information
Warranty 2 Years
Hardware
Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Chipset ID Etron - EJ168A
Interface USB 3.0
Port Style Integrated on Card
Ports 2
Performance
Maximum Cable Length 9.8 ft [3 m]
Type and Rate USB 3.0 - 5 Gbit/s
UASP Support No
Connector(s)
Connector Type(s) 1 - PCI Express x1 Male
External Ports 2 - USB Type-A (9 pin) USB 3.0 Female
Internal Ports 1 - SATA Power (15 pin) Plug
Software
OS Compatibility Windows XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016
Special Notes / Requirements
System and Cable Requirements Available 15-pin SATA power connector
  Available PCI Express slot
Environmental
Humidity 10~90% RH, Non-condensing
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature 0°C to 80°C (32°F to 176°F)
Physical Characteristics
Product Height 4.7 in [120 mm]
Product Length 3.1 in [80 mm]
Product Weight 2.1 oz [60 g]
Product Width 0.8 in [21 mm]
Packaging Information
Shipping (Package) Weight 4.6 oz [130 g]

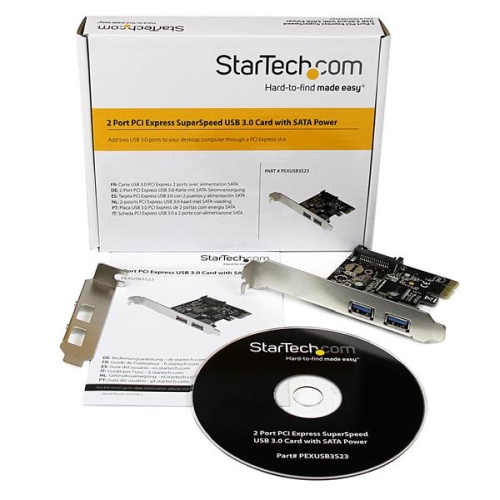

What's in the Box
Included in Package 1 - PCI Express USB 3.0 card
  1 - Low Profile Bracket
  1 - Driver CD
  1 - Instruction Manual
