StarTech PCI1PEX1 PCI to PCI Express Adapter Card
SKU: AA85527
Model Name: PCI1PEX1
Availability:
IN STOCK
Sale Price: $118.80 inc. GST
Quantity:

PCI to PCI Express Adapter Card

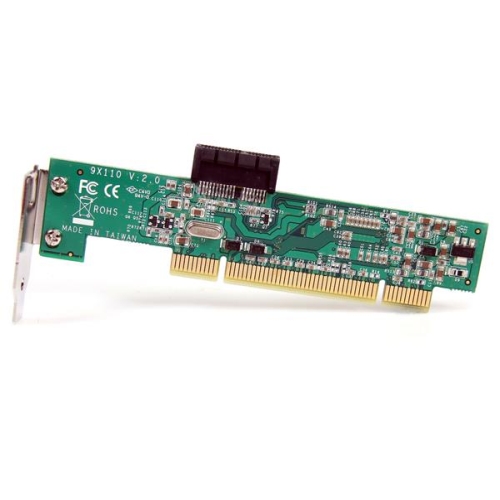

The PCI1PEX1 PCI to PCI Express Adapter card lets you use low profile PCIe expansion cards in a server/desktop motherboard PCI slot. The adapter connects through a 32-bit PCI slot to provide a low profile PCIe x1 slot in its place; a spare, full size bracket is included for installation in larger desktop or server expansion slots that can accommodate a full-sized card.

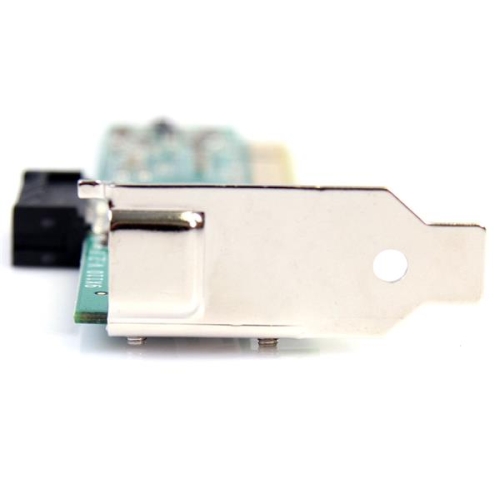

The PCI to PCI Express Adapter features an innovative bracket design that adapts and secures the low profile PCI Express card into the converted slot, ensuring a versatile and economical solution for extending the usability of older PCI motherboards or using low profile PCIe cards that do not have PCI equivalents.

The StarTech.com Advantage
  • The unique bracket design allows a low profile/half-height PCI Express card to work seamlessly in a PCI-based expansion slot
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support
Features
  • Innovative bracket design adapts and secures the existing low profile/half-height bracket of the PCI Card
  • PCI revision 2.3 compliant with up to 133MBps of available bandwidth
  • LP4 Power Connector Included for Universal Voltage PCI Cards (3.3V/5V)
  • Compliant with PCI-to-PCIe Bridge Architecture Spec Revision 1.2
  • No driver or software installation
Warranty Information
Warranty 2 Years
Hardware
Bus Type PCI / PCI-X (5 / 3.3V)
Card Type Standard Profile
Chipset ID Pericom - PI7C9X111SL
Interface PCI Express
Ports 1
Connector(s)
Connector Type(s) 1 - PCI / PCI-X (Universal 3.3 & 5V, 32-bit) Male
Internal Ports 1 - PCI Express x1 Slot Female
Software
OS Compatibility OS Independent; No additional drivers or software required
Environmental
Humidity 0~95% RH
Operating Temperature 0°C to 85°C(32°F to 185°F)
Storage Temperature -10°C to 95°C(14°F to 203°F)
Physical Characteristics
Product Height 0.8 in [20 mm]
Product Length 5.3 in [135 mm]
Product Weight 1 oz [27 g]
Product Width 2.4 in [60 mm]
Packaging Information
Shipping (Package) Weight 4.2 oz [120 g]

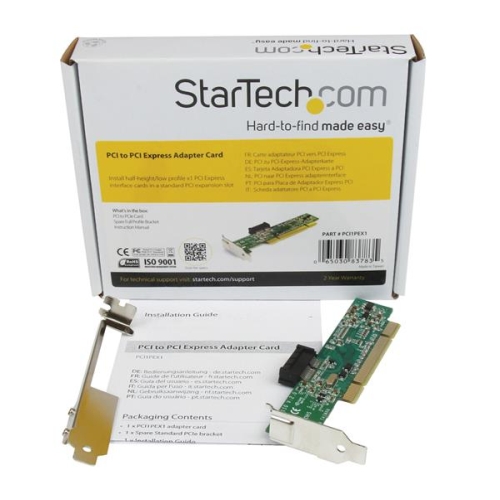

What's in the Box
Included in Package 1 - PCI to PCIe Card
  1 - Spare Full Profile Bracket
  1 - Instruction Manual
