StarTech PCI2S1P 2S1P PCI Serial Parallel Combo Card with 16550 UART
SKU: 1555418
Model Name: PCI2S1P
Availability:
IN STOCK
Sale Price: $119.20 inc. GST
Quantity:

2S1P PCI Serial Parallel Combo Card with 16550 UART

The PCI2S1P PCI Serial/Parallel Combo Card turns a PCI slot into two external 16C550 serial ports and one external EPP/ECP parallel port - an all-in-one solution that gives you both parallel and serial connections while taking up only one PCI slot.

Suitable for installation in a small form factor computer, the PCI serial/parallel card includes an optional low profile/half-height mounting bracket that makes installation easy.

The serial/parallel combo card is PCI plug and play ready and supports IRQ sharing for fast, simple installation. The combo card is supported in virtually any Microsoft Windows operating environment (Windows 7, Server 2008 R2, Vista, XP, ME, 2000, 98, 95 and NT4), and is backed by a StarTech.com Lifetime Warranty and free lifetime technical support.

The StarTech.com Advantage
  • Guaranteed compatibility with any PC running Windows, DOS or Linux for simple integration into your application
  • All three ports share only one IRQ, minimizing system resources required for the card
  • Easy to install and use with full step-by-step instruction providing a hassle free serial solution
Features
  • Two 16C550 serial ports with data transfer up to 115.2 Kbits/sec
  • One EPP/ECP parallel port with data transfer up to 1.5 Mbits/sec
  • Includes optional low profile/half-height mounting bracket
  • Parallel port supports EPP, ECP, SPP and BPP
  • IRQ sharing eliminates conflicts between multiple cards
Warranty Information
Warranty Lifetime
Hardware
Bus Type PCI / PCI-X (5 / 3.3V)
Card Type Standard Profile (LP bracket incl.)
Chipset ID ASIX/MosChip - MCS9835CV
Interface Parallel
  Serial
Port Style Integrated on Card
Ports 2
Performance
FIFO Serial: 32 Bytes
Parallel: 16-Bytes
Max Baud Rate 115.2 Kbps
Maximum Data Transfer Rate Up to 1.5 Mbits/sec.
Serial Protocol RS-232
Connector(s)
Connector Type(s) 1 - PCI / PCI-X (Universal 3.3 & 5V, 32-bit) Male

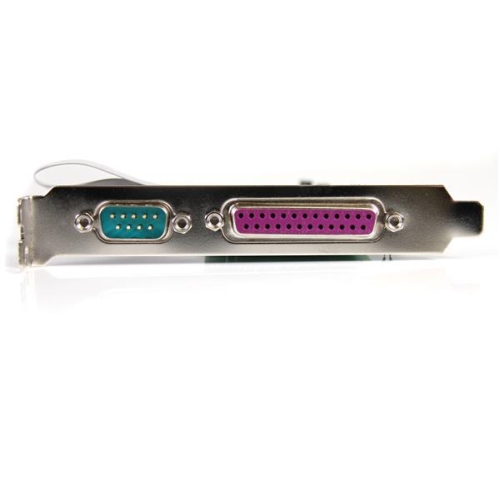

External Ports 1 - DB-25 (25 pin, D-Sub) Female
  2 - DB-9 (9 pin, D-Sub) Male
Software
OS Compatibility Windows DOS, 95, 98SE, 2000, CE 5.0 / 6.0, Embedded System 2009, XP Embedded, POS Ready 2009, XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2016
Linux 3.5.x to 4.4.x LTS Versions only
Environmental
Humidity 5~85% RH
Operating Temperature -10°C to 80°C (14°F to 176°F)
Storage Temperature -20°C to 100°C (-4°F to 212°F)
Physical Characteristics
Product Height 4.7 in [120 mm]
Product Length 4.7 in [120 mm]
Product Weight 2.5 oz [70 g]
Product Width 0.8 in [20 mm]
Packaging Information
Shipping (Package) Weight 0.5 lb [0.2 kg]

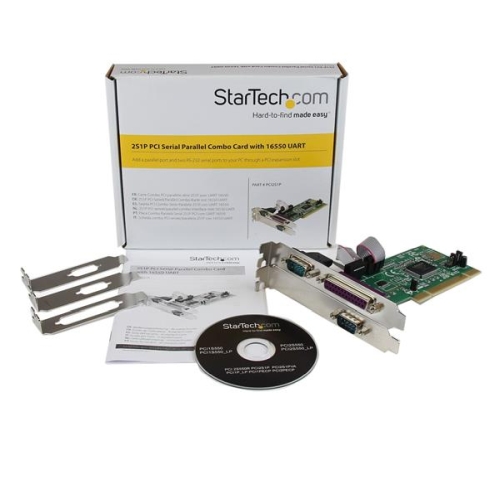

What's in the Box
Included in Package 1 - PCI 2S1P Card
  1 - DB9 Ribbon Cable
  3 - Low Profile Brackets
  1 - Driver CD
  1 - Instruction Manual
