mbeat 15-in-1 Triple Display USB-C Dock (MB-UCD-X15)
SKU: WAW0694
Model Name: MB-UCD-X15
Availability:
IN STOCK
Sale Price: $196.80 inc. GST
Quantity:

Check out the mbeat 15-in-1 Triple Display USB-C Docking Station – the perfect all-in-one USB-C solution to unleash your laptop’s maximum potential! With blazing fast 10Gbps data transfer, triple HD video out, 100W PD and Gigabit Ethernet, as well as premium features such as 4 more USB ports, SD/MicroSD card reader, anodised aluminium casing and a Kensington lock slot for added security, you won’t want to miss out on this one!

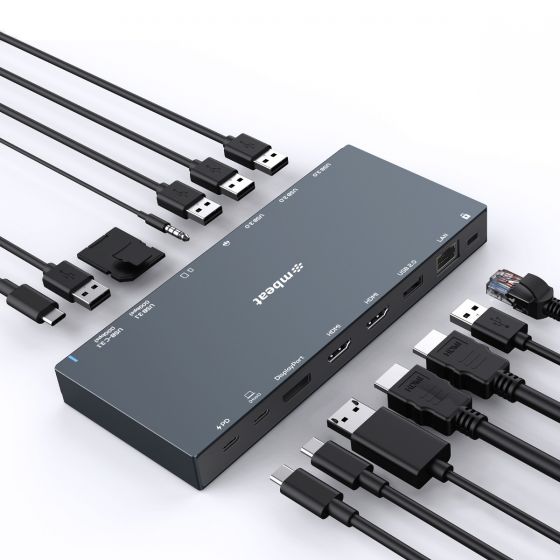

All in One USB-C Solution
15-in-1 USB-C dock with a full array of ports and connections in a sleek and durable anodised aluminium finish, all to unleash your USB-C laptop’s maximum potential.

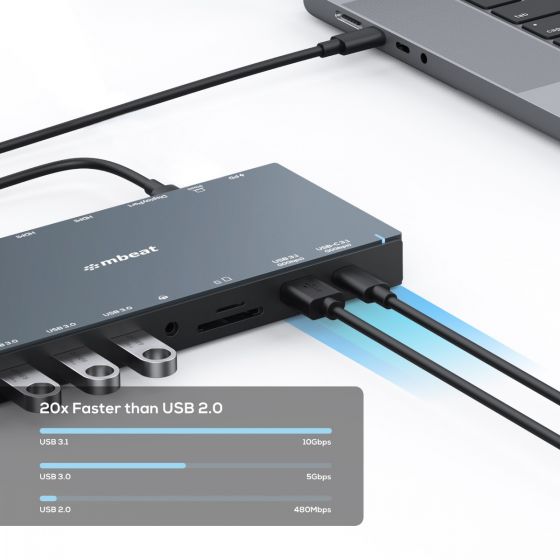

Blazing Fast Data Transfer
Featuring 10Gbps USB 3.1 Gen 2 data ports in both USB-C and A configurations, ideal for high-speed external storage devices such as NVMe SSDs; don’t compromise on transfer speeds with slower hubs.

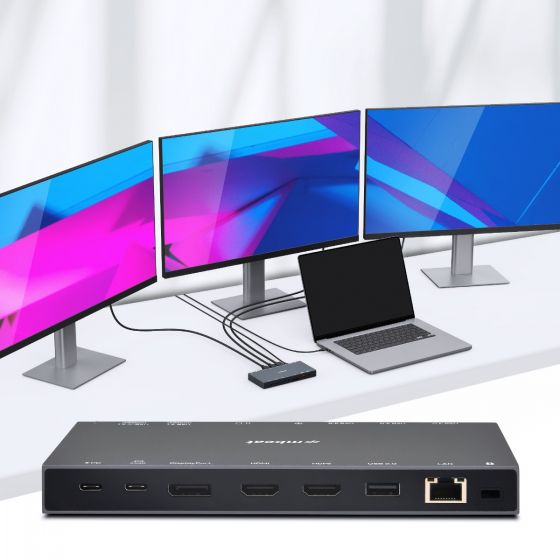

Triple HD Video Out
Featuring HDMI 2.0 (4K@60Hz), HDMI 1.4 (4K@30Hz) and DisplayPort 1.4 (4K@60Hz) for unparalleled video connectivity. Extend/duplicate your laptop display to external HD monitors, ideal for multiple screens or presentations.

100W PD and Gigabit Ethernet
High specifications to drive your productivity with lightning-fast pass-through charging and network transfer speeds.

Additional Premium Features
4 more USB ports (3.0×3, 2.0×1), SD/MicroSD card reader, 100cm long data cable, anodised aluminium casing and a Kensington lock slot for added security.

Additional Premium Features
4 more USB ports (3.0×3, 2.0×1), SD/MicroSD card reader, 100cm long data cable, anodised aluminium casing and a Kensington lock slot for added security.

Specifications:

  • USB-C Host: 1 × USB-C 3.1 Gen 2 full function port
  • HDMI (1): 1 × HDMI 2.0 port, supports resolution up to 4K/60Hz
  • HDMI (2): 1 × HDMI 1.4 port, supports resolution up to 4K/30Hz
  • DisplayPort: 1 × DP 1.4 port, supports resolution up to 4K/60Hz
  • USB-C PD: 1 × PD 3.0 port, supports Max. 20V/5A, 100W Charging
  • USB-C 3.1: 1 × USB-C 3.1 Gen 2 port, supports 10Gbps data transfer, backward compatible with USB-C 3.1 Gen 1 / 3.0 / 2.0
  • USB 3.0: 3 × USB 3.0 port, supports 5Gbps data, backward compatible with USB 2.0
  • USB 3.1: 1 × USB 3.1 Gen 2 port, supports 10Gbps data transfer, backward compatible with USB 3.1 Gen 1 / 3.0 / 2.0
  • USB 2.0: 1 × USB 2.0 port, supports 480Mbps data transfer
  • SD Card: 1 × SD 4.0 slot, supports SDXC, SDHC, SD card
  • MicroSD Card: 1 × MicroSD 3.0 slot, supports MicroSDXC, MicroSDHC, MicroSD card
  • Networking: 1 × RJ45 port, supports Gigabit Ethernet up to 10/100/1000Mbps
  • Audio & Mic: 1 × 3.5mm Jack, supports audio 192KHz/16bit and microphone input
  • Device Lock: 1 × K-Slot, supports Kensington Lock Cable Length: 100cm

Compatibility and Limitation:

  • Product is compatible with WindowsTM 7, 8, 10, 11 and MacTM OS 10.12+

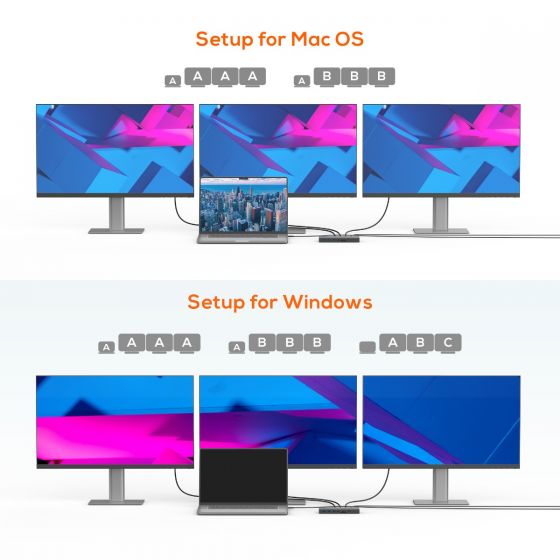

  • WindowsTM OS supports MST, MacTM OS only supports SST in USB-C Display Alt mode, MacBookTM (2020) with M1 CPU currently only supports 1 external monitor display.
  • Product does not include USB-C power supply.

Product and Package:

  • Product Dimension: 18cm × 7.98cm × 1.9cm
  • Product Weight: 0.31kg
  • Package Dimension: 23.1cm × 12.5cm × 4.3cm
  • Package Weight: 0.5kg

Package Contents:

  • USB-C Dock
  • 100cm USB-C to USB-C Cable
  • Instruction Manual
  • Product Registration Card
