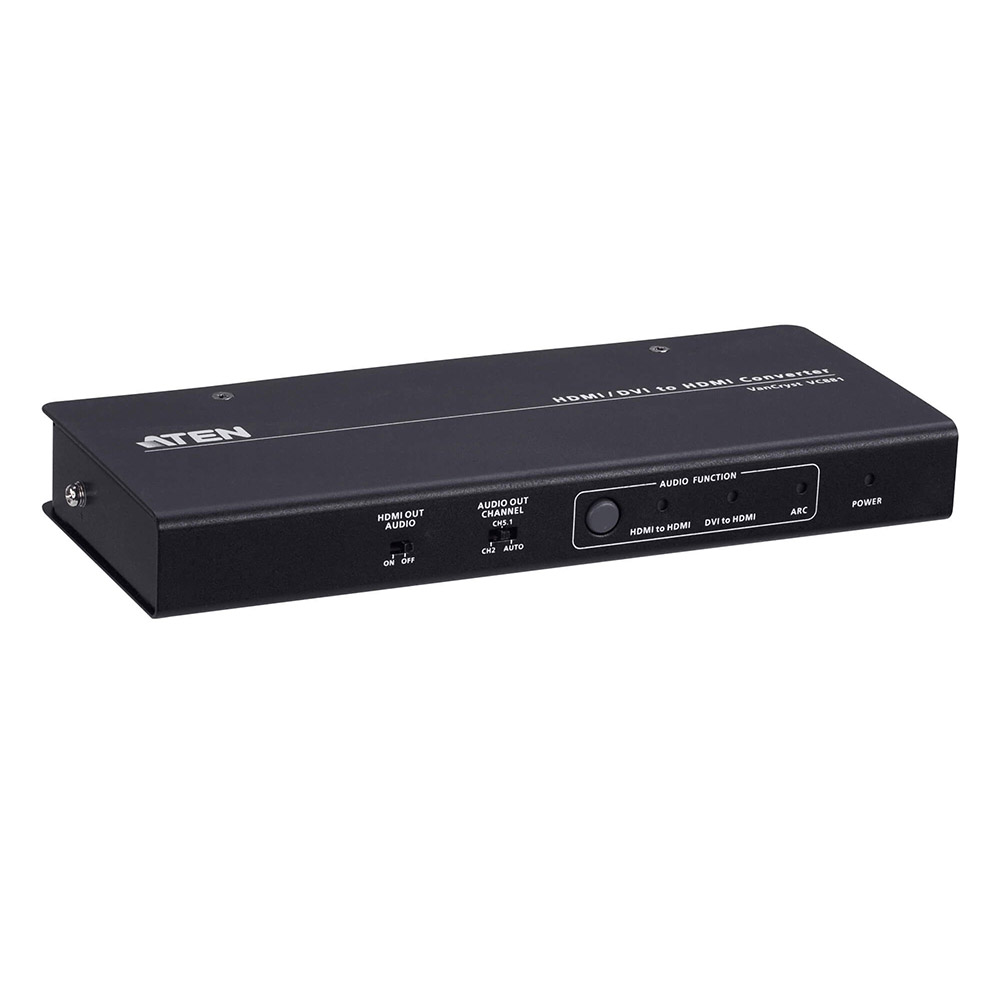

ATEN VC881 4K HDMI/DVI to HDMI Converter with Audio De-embedder
|
||||||||||||
ATEN VC881 is a high-quality HDMI/DVI to HDMI converter with audio de-embedding function. Input a DVI signal and it converts the signal to HDMI signal or input an HDMI signal and it extracts the HDMI audio signal. Advanced video support provides a better-defined connection with video resolutions up to 4K and complies with HDCP 1.4.
The VC881 offers the fl exibility to support signal interface conversion (DVI to HDMI) and HDMI audio de-embedding. For HDMI audio de-embedding function, the VC881 splits the audio from HDMI video and converts it to S/PDIF, Coaxial, or a RCA Stereo Audio signal to support an audio system that is separate from the display. This allows HDMI video to continue to the display while supplying audio to an audio system near the HDMI source. In addition, the VC881 supports ARC to simplify the setting by eliminating the need for any separate S/PDIF audio connection.
The compact enclosure design and audio de-embedding capability make the VC881 ideal for bars, public transportation stations, and home theater settings.
Diagram
Specifications:
| Switches | |

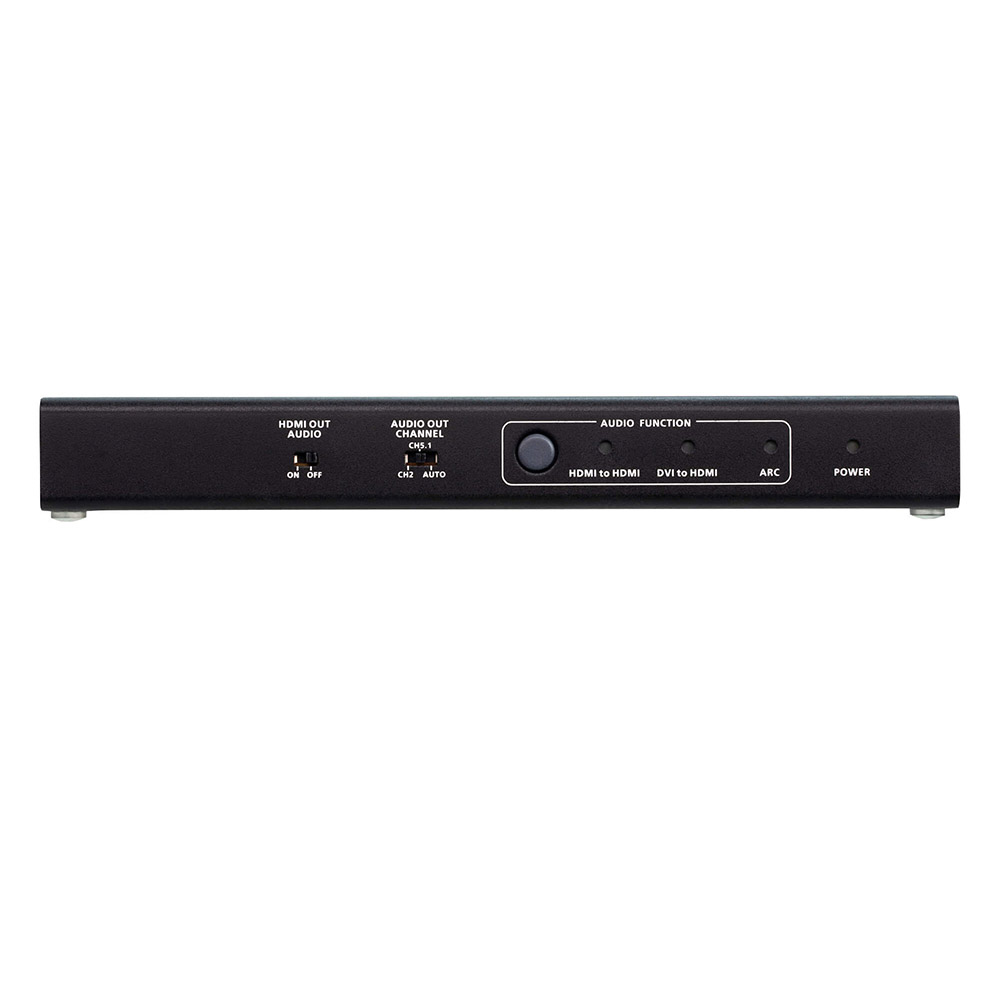

| Mode Selection | Side Switch x 1 (HDMI Audio Out - ON/OFF) Side Switch x 1 (Audio Out Channel - AUTO/CH 5.1/CH 2) Push Button x 1 (Audio Function Selection) 1. HDMI to HDMI 2. DVI to HDMI 3. ARC(Audio Return Channel) |
| Video Input | |

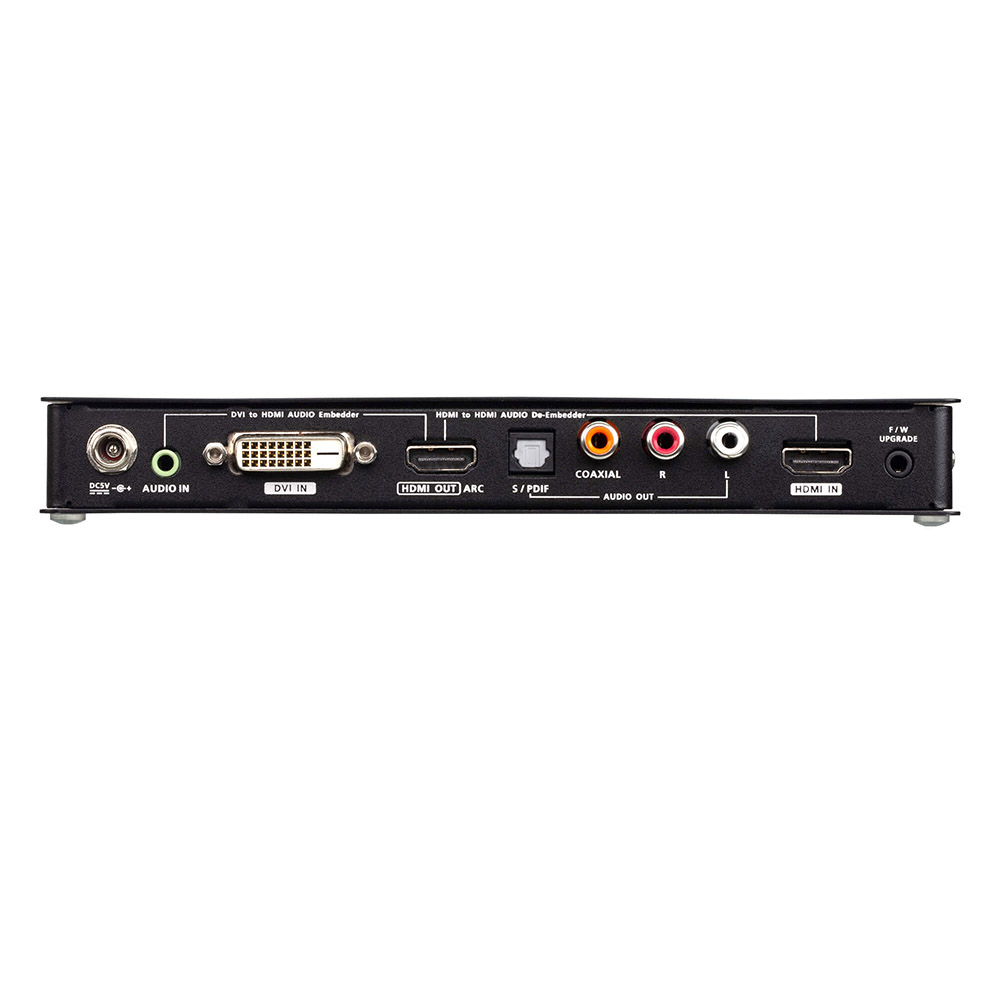

| Interfaces | 1 x HDMI Type A Female (Black) 1 x DVI-D Female (White) |
| Impedance | 100 Ω |
| Max. Distance | HDMI: 3M DVI: 1.8M |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) with ARC |
| Impedance | 100 Ω |
| Max. Distance | 3M |
| Video | |
| Max. Data Rate | 10.2 Gps (3.4 Gbps Per Lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI 1.4 (3D, Deep Color) HDCP 1.4 Compatible |
| Max. Resolution | HDMI 3840 X 2160@30HZ DVI 1920 x 1200 |
| Audio | |
| Output | Optical Audio: 1 x Toslink (Black) Coaxial Audio: 1 x RCA female (Orange) Stereo Audio: 2 x RCA female (White / Red) |
| Input | Stereo Audio: 1 x 3.5mm jack (Green) |
| Connectors | |
| Power | 1 x DC Jack, 5V, Lockable |
| Firmware Upgrade | 1 x 3.5mm jack (FW upgrade) |
| Power Consumption | DC5V:1.767W:8BTU |
| Environmental | |
| Operating Temperature | 0 - 40 ºC |
| Storage Temperature | -20 - 60 ºC |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.47 kg ( 1.04 lb ) |
| Dimensions (L x W x H) | 20.20 x 8.49 x 2.50 cm (7.95 x 3.34 x 0.98 in.) |
| Carton Lot | 20 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
