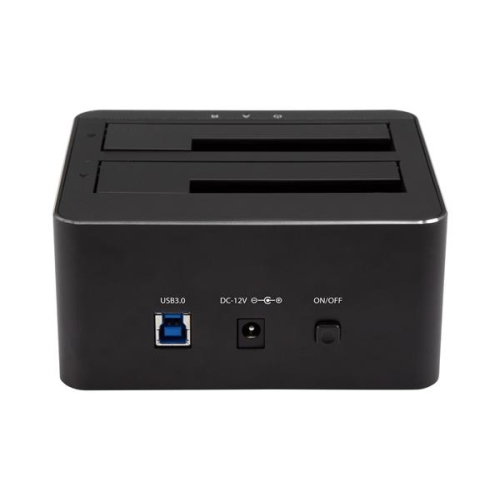

StarTech SDOCK2U33V Dual-Bay SATA HDD Docking Station for 2 x 2.5/3.5" SATA SSDs/HDDs - USB 3.0
|
||||||||||||
This dual-bay SATA HDD/SSD docking station lets you dock and swap drives from your desktop or laptop computer simultaneously, using a single USB port. It supports two 2.5/3.5” SATA hard drives or solid-state drives.
The dual-bay docking station supports USB 3.0, also known as USB 3.1 Gen 1, providing fast data transfer speeds of up to 5Gbps. It also supports UASP, for enhanced performance.
Ideal for IT professionals, such as system administrators and technicians, the hard drive dock enables you to complete device-management tasks more efficiently, such as disk image duplication, data recovery, backing up and archiving hard drives, and transferring content between drives and devices. It also enhances your workflow, by providing quick access to your hard drives, with the ability to easily swap drives in and out as needed.
Designed for easy drive access, the hard drive dock enhances your workflow, by providing quick access to two hard drives, with the ability to easily swap drives in and out as needed. The hard drive dock features a convenient top-loading design with independent drive doors that make it easy to add or remove drives.
The dual-bay SATA HDD/SSD docking station is OS independent, with no drivers or software installation required, for easy setup.
The SDOCK2U33V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Features| Warranty Information | |
|---|---|
| Warranty | 2 Years |
| Hardware | |
| Bus Type | USB 3.0 |
| Chipset ID | ASMedia - ASM1153E |
| Compatible Drive Types | SATA |
| Drive Installation | Removable |
| Drive Size | 2.5in & 3.5in |
| Fan(s) | No |
| Interface | USB 3.0 |
| Number of Drives | 2 |
| Performance | |
| 4Kn Support | Yes |
| Max Drive Capacity | Currently tested with hard drives up to 10TB at 7200 RPM |
| Port Multiplier | No |
| RAID | No |
| S.M.A.R.T. Support | Yes |
| TRIM Support | Yes |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| SATA III (6 Gbps) | |
| UASP Support | Yes |
| Connector(s) | |
| Drive Connectors | 2 - SATA Data & Power Combo (7+15 pin) Receptacle |
| Host Connectors | 1 - USB 3.1 USB Type-B (9 pin, Gen 1, 5 Gbps) Female Output |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Indicators | |
| LED Indicators | 2 - drive activity LED |
| 1 - power LED | |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 1.5 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 3 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 36 |
| Power Source | AC Adapter Included |
| Environmental | |
| Humidity | 20%RH~80%RH |
| Operating Temperature | 5°C to 35°C (41°F to 95°F) |
| Storage Temperature | -20°C to 50°C (-4°F to 122°F) |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum and Plastic |
| Product Height | 2.4 in [62 mm] |
| Product Length | 4.5 in [114 mm] |
| Product Weight | 13.1 oz [370 g] |
| Product Width | 5.1 in [130 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 1.7 lb [0.8 kg] |
| What's in the Box | |
| Included in Package | 1 - drive docking station |
| 1 - 1.2 m USB 3.0 cable | |
| 1 - universal power adapter (NA/JP, UK, EU, ANZ) | |
| 1 - quick-start guide | |
