StarTech USB2004EXTV 4-Port USB 2.0-Over-Cat5-or-Cat6 Extender - 50m
SKU: AA93725
Model Name: USB2004EXTV
Availability:
IN STOCK
Sale Price: $375.30 inc. GST
Quantity:

4-Port USB 2.0-Over-Cat5-or-Cat6 Extender - 165ft (50m)

This 4-port USB 2.0 extender is an easy and inexpensive solution for creating workspace freedom. Now you can extend the distance of your USB 2.0 devices over a single Ethernet cable, up to 130ft (40m) over Cat5, or 165ft (50m) over Cat6.

Go the extra distance for increased productivity

Overcome the 16ft USB cable length limitation to create a more flexible and efficient workspace. Now you can place up to four USB devices in remote locations away from the host computer system. Position your hard drive enclosure, printer, scanner, webcam and other popular peripherals right where you need them, to save time and enhance your productivity.

Port location enables fast and easy connections

Gain quick access to the USB devices you use most frequently. Often on the go? Use the two top ports for fast, easy connections to portable devices like flash drives, smartphones and tablets. Plus, you still have two front-facing ports for printers or other devices requiring a more permanent set-up.

Supports any operating system and older devices

The versatile USB2004EXTV supports Windows®, Mac® and Linux systems. Set-up is easy with no additional drivers or software required, and the extender is backward compatible with USB 1.1 and 1.0 peripherals.

Features
  • Place your devices where you need them with this cost-effective USB extender

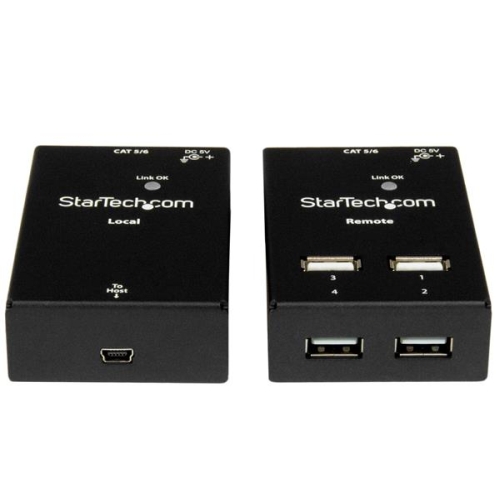

  • Unique 4-port design with 2 ports on top for easy access
  • OS independent for fast, hassle-free set-up
  • Kit includes a transmitter and a 4-port hub receiver
  • Supports transfer rates of up to 480 Mbps
  • Plug-and-play and hot-swap compatible
Warranty Information
Warranty 2 Years
Hardware
Cabling Cat 5 UTP or better
Ports 4
Performance
Max Distance 50 m / 165 ft
Maximum Data Transfer Rate 480Mbps

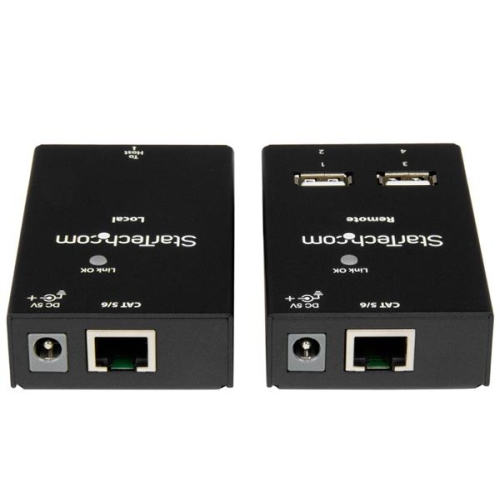

Connector(s)
Local Unit Connectors 1 - USB Mini-B (5 pin) Female
  1 - RJ-45 Female
Remote Unit Connectors 4 - USB Type-A (4 pin) USB 2.0 Female
  1 - RJ-45 Female
Software
OS Compatibility OS Independent; No additional drivers or software required
Special Notes / Requirements
System and Cable Requirements USB-enabled computer system with an available USB port
  RJ45 terminated Cat5 or higher Ethernet cabling
Indicators
LED Indicators 1 - Power / Link
Power
Center Tip Polarity Positive
Input Current 0.4 A
Input Voltage 100 ~ 240 AC
Output Current 2.0 A
Output Voltage 5 DC
Plug Type N
Power Consumption (In Watts) 10
Power Source AC Adapter Included
Environmental
Humidity 0~80% RH
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Physical Characteristics
Color Black
Enclosure Type Steel
Product Height 0.9 in [22 mm]
Product Length 3.1 in [80 mm]
Product Weight 11.4 oz [324 g]
Product Width 2 in [52 mm]
Packaging Information
Shipping (Package) Weight 27.3 oz [774 g]

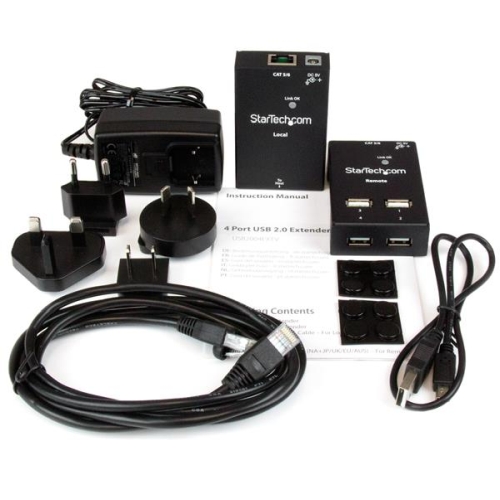

What's in the Box
Included in Package 1 - USB 2.0 Local Extender
  1 - USB 2.0 Remote Extender
  1 - 0.5m (1.5ft) Mini-USB to USB 2.0 A Cable
  1 - 1.5m (5ft) RJ45 Ethernet Cable
  8 - Rubber Feet
  1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
  1 - Instruction Manual
