ATEN CS-82U 2-Port PS/2-USB VGA KVM Switch
SKU: PJ11120
Model Name: CS-82U
Availability:
IN STOCK
Sale Price: $107.20 inc. GST
Quantity:

The CS82U PS/2-USB KVM Switch is a desktop control unit that allows users to access two computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS82U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.

Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS82U intercepts keyboard input directly, it will work on multiple computing platforms.

  • One PS/2-USB VGA console controls two VGA interface computers.
  • Dual Interface - supports computers with PS/2 or USB keyboards and mice

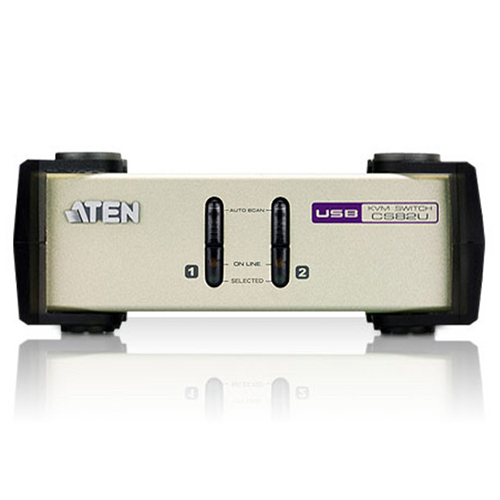

  • Computer selection via front panel pushbuttons, hotkeys, and mouse
  • Multiplatform support - Windows, Linux, Mac, and Sun
  • Superior video quality - 2048 x 1536; DDC2B
  • Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Complete keyboard emulation for error-free booting
  • Mac/Sun keyboard support and emulation*
  • Multilingual keyboard mapping - supports English, Japanese, and French keyboards
  • Gaming keyboard support
  • Auto Scan Mode for monitoring all computers
  • Firmware upgradable
  • Non-powered

    * 1. PC keyboard combinations emulate Mac/Sun keyboards
    2. Mac/Sun keyboard work only with their own computers

Package Contents

  • 1x CS82U PS/2-USB KVM Switch
  • 2x Custom KVM Cable (VGA, USB, PS/2; 1.2m/4ft)
  • 1x User Instructions
Computer Connections 2
Port Selection Hotkey, Pushbutton, USB Mouse

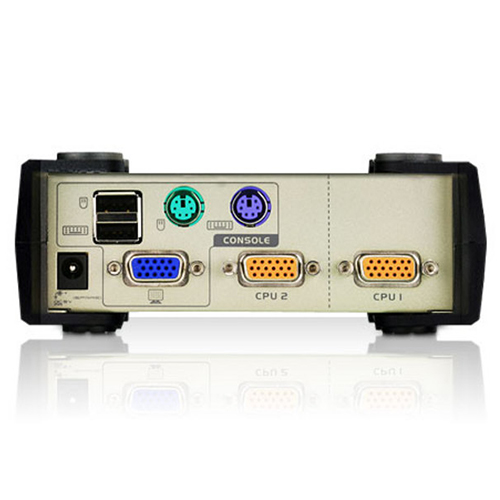

Connectors
Console Ports 2 x USB Type A Female (Black)
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
1 x HDB-15 Female (Blue)
KVM Ports 2 x SPHD-18 Female (Yellow)
Power 1 x DC Jack
Switches
Selected 2 x Pushbutton
LEDs
Online 2 (Orange)
Selected 2 (Green)
Emulation
Keyboard / Mouse PS/2, USB
Video 2048 x 1536 @ 60 Hz; DDC2B
Scan Interval 3, 5, 10, 20 secs. (5 secs. default)
Power Consumption DC 5V, 1.1W
Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.54 kg ( 1.19 lb )
Dimensions (L x W x H) 14.00 x 8.80 x 5.55 cm
(5.51 x 3.46 x 2.19 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
