StarTech USB3S2SAT3CB USB3.0 to 2.5inch SATA III Hard Drive Adapter w/ UASP
SKU: BG02817
Model Name: USB3S2SAT3CB
Availability:
IN STOCK
Sale Price: $71.30 inc. GST
Quantity:

USB 3.0 to 2.5” SATA III Hard Drive Adapter Cable w/ UASP – SATA to USB 3.0 Converter for SSD / HDD

The USB3S2SAT3CB USB 3.0 to SATA adapter cable lets you connect a 2.5" SATA hard drive or solid state drive to your computer through an available USB port -- the easiest way to upgrade the hard drive in your laptop by adding an external SSD via USB 3.0.

The cable supports UASP, allowing for transfer speeds up to 70% faster than conventional USB 3.0, which enables you to utilize the full potential of your SATA III SSD/HDD, when paired with a UASP-enabled host controller. See our UASP testing results below for further details.

This portable adapter features a lightweight design with no external power required, for easy storage in a laptop bag or carrying case. Plus, the cable-style adapter makes it easy to swap between hard drives without having to install your drives into an enclosure. Perfect for easy drive access for data migration, drive cloning and data backup applications.

The USB3S2SAT3CB is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Connection Diagram



Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

UASP Speed Diagram

At the same peak in testing, UASP also shows an 80% reduction in required processor resources.

UASP Speed Diagram

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

The StarTech.com Advantage
  • Maximum portability with cable-style adapter, and no external power adapter required
  • Time-saving file transfers, up to 70% faster than traditional USB 3.0 when used with a UASP-supported host
Features
  • Cable-style adapter
  • UASP Support (Attached SCSI Protocol Specification Revision 1.0)
  • Compatible with USB 3.0/2.0/1.1 (5Gbps/480Mbps/12Mbps)
  • Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps)
  • USB powered
Warranty Information
Warranty 2 Years
Hardware
Bus Type USB 3.0
Chipset ID ASMedia - ASM1153E
Compatible Drive Types SATA
Drive Size 2.5in
Fan(s) No
Interface USB 3.0
Number of Drives 1
Performance
General Specifications Max power of the attached drive is 900 mA
Max Drive Capacity Currently tested with up to 2TB 5900 RPM hard drives
Type and Rate USB 3.0 - 5 Gbit/s
  SATA III (6 Gbps)
UASP Support Yes
Connector(s)

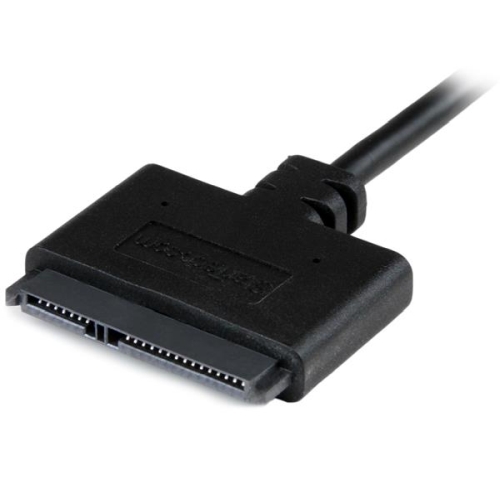

Drive Connectors 1 - SATA Data & Power Combo (7+15 pin) Receptacle

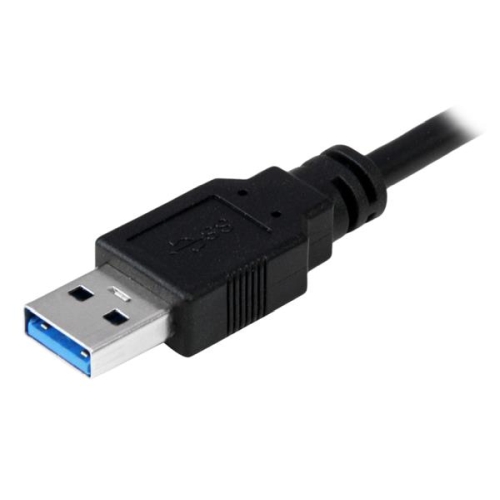

Host Connectors 1 - USB Type-A (9 pin) USB 3.0 Male
Software
OS Compatibility OS independent; No software or drivers required
Special Notes / Requirements
Note Cable will work only with 2.5" SATA drives
3.5"/5.25" drives are not supported
Power
Power Source USB-Powered
Environmental
Humidity 40%-85%RH
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Physical Characteristics
Product Height 0.4 in [9 mm]
Product Length 19.7 in [500 mm]
Product Weight 1.4 oz [41 g]
Product Width 1.9 in [49 mm]
Packaging Information
Shipping (Package) Weight 2.2 oz [61 g]
What's in the Box

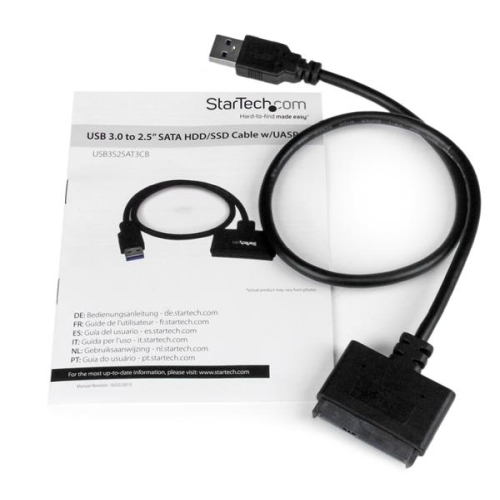

Included in Package 1 - USB 3.0 to SATA 2.5" HDD Adapter Cable
  1 - Instruction Manual
