StarTech ICUSB232INT1 24in Internal USB Motherboard Header to Serial RS232 Adapter
SKU: BX07378
Model Name: ICUSB232INT1
Availability:
IN STOCK
Sale Price: $102.20 inc. GST
Quantity:

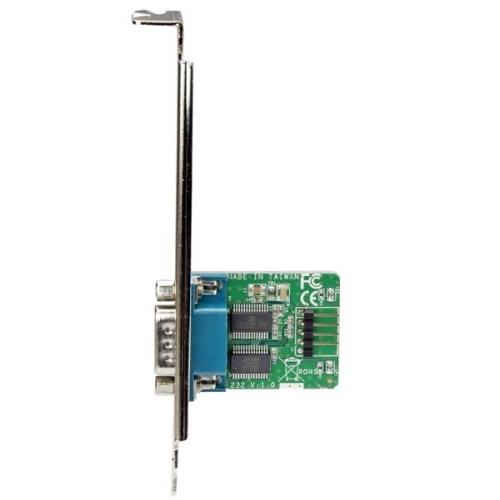

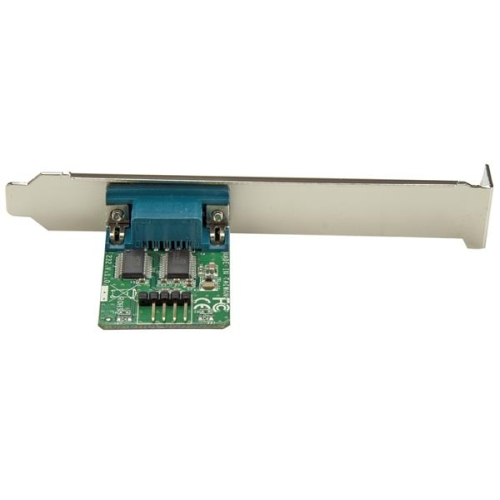

24in Internal USB Motherboard Header to Serial RS232 Adapter

The ICUSB232INT1 USB to RS232 Serial Adapter lets you add an RS232 port to any desktop system that is equipped with an available USB motherboard header.

Unlike standard USB to serial cables, this cable is designed for use inside the PC case, affording an entirely internal solution with no mess or extra adapters needed.

This compact and simple USB adapter offers a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.

The StarTech.com Advantage
  • Direct connection from the motherboard header allows for a clean and completely contained setup, without taking up a PCI/PCI-Express slot in your system
  • Standard and low profile/half-height bracket included to ensure fitment in any system
  • Extensive list of OS support and Microsoft WHQL certified drivers makes for maximum compatibility and simple installation
Features
  • USB Header to Straight-Through RS232 Serial
  • Bus-Powered – no separate power supply or battery required
  • Supports COM port retention
  • Single chip USB to asynchronous serial data transfer interface
  • UHCI/OHCI/EHCI host controller compatible
  • USB 2.0 Full Speed compatible
  • Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
  • FIFO receive and transmit buffers for high data throughput.
Warranty Information
Warranty 2 Years
Hardware
Bus Type Motherboard Header
Card Type Standard Profile (LP bracket incl.)
Chipset ID FTDI - FT232RL
Interface Serial
Port Style Integrated on Card
Ports 1
Performance
Data Bits 7, 8
FIFO 256 Bytes
Max Baud Rate 115.2 Kbps
Parity None, Odd, Even, Space, Mark
Serial Protocol RS-232
Stop Bits 1, 2
Connector(s)

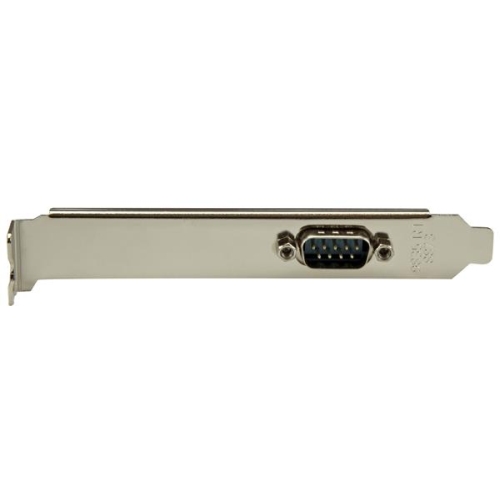

External Ports 1 - DB-9 (9 pin, D-Sub) Male
Internal Ports 1 - IDC (10 pin, Motherboard Header) Female
Software
Microsoft WHQL Certified Yes
OS Compatibility Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS 10.6 to 10.12
Linux 2.4.x to 4.4.x LTS Versions only
Environmental
Humidity 5~85% RH
Operating Temperature -10°C to 80°C (14°F to 176°F)
Storage Temperature -20°C to 100°C (-4°F to 212°F)
Physical Characteristics
Cable Length 2 ft [0.6 m]
Product Height 0.5 in [12 mm]
Product Length 1.8 in [45 mm]
Product Weight 1.1 oz [31 g]
Product Width 4.8 in [123 mm]
Packaging Information
Shipping (Package) Weight 0.4 lb [0.2 kg]

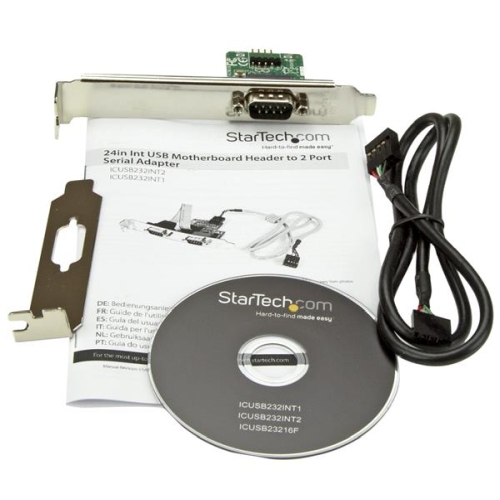

What's in the Box
Included in Package 1 - USB to RS232 Serial Adapter
  1 - Low profile bracket
  1 - Driver CD
  1 - Instruction Manual
