StarTech S2510BPU33 2.5in USB 3.0 External SATA III SSD Hard Drive Enclosure with UASP
SKU: AA85590
Model Name: S2510BPU33
Availability:
IN STOCK
Sale Price: $77.90 inc. GST
Quantity:

2.5in USB 3.0 External SATA III SSD Hard Drive Enclosure with UASP – Portable External HDD

The S2510BPU33 USB 3.0 Hard Drive Enclosure with UASP lets you connect a 2.5in SATA III hard drive (HDD) or solid state drive (SSD) through an available USB port.  The enclosure delivers optimal performance with a USB 3.0 connection, but is backward compatible with USB 2.0/1.1 host connections as well.

Enhanced with UASP (USB Attached SCSI Protocol), this 2.5" SATA III enclosure performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP reduces latency, significantly increasing transfer speeds and reducing processor usage to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.

With support for SATA I/II/III, and large capacity drives (tested up to 1TB) this HDD enclosure is compatible with virtually any 2.5in SATA hard drive, and greatly increases the storage/backup capabilities of your computer.

For added portability the USB 3.0/SATA III enclosure features tool-less HDD installation, and requires no external power adapter.

To ensure compatibility with your computer system, the S2510BPU33 supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

UASP Speed Diagram

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

UASP Speed Diagram

Testing results were obtained using an Intel® Ivy Bridge system, a UASP enabled StarTech.com Enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
  • 70% Faster than traditional USB 3.0, with UASP Transfer Protocol
  • Maximum portability, with USB powered enclosure and Tool-less HDD installation
Features
  • Compliant with USB Attached SCSI Protocol (UASP) Transport Specifications
  • Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives

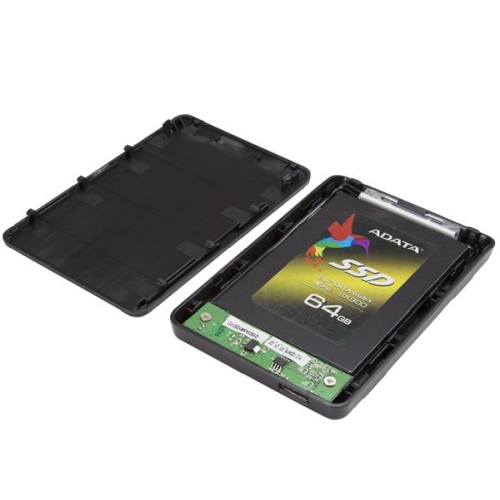

  • Tool-less installation
  • Powered directly from the USB port
  • Compatible with USB revision 3.0/2.0/1.1 (5 Gbps/480 Mbps/1.5 Mbps)
  • Power/Activity LED indicator
  • Plug-and-Play and Hot-Swap compatible
Warranty Information
Warranty 2 Years
Hardware
Chipset ID ASMedia - ASM1053
Compatible Drive Types SATA
Drive Installation Fixed
Drive Size 2.5in
Fan(s) No
Interface USB 3.0
Number of Drives 1
Performance
Max Drive Capacity Currently tested with up to 1TB 5400 RPM hard drives
RAID No
Type and Rate USB 3.0 - 5 Gbit/s
  SATA III (6 Gbps)
UASP Support Yes
Connector(s)
Drive Connectors 1 - SATA Data & Power Combo (7+15 pin)

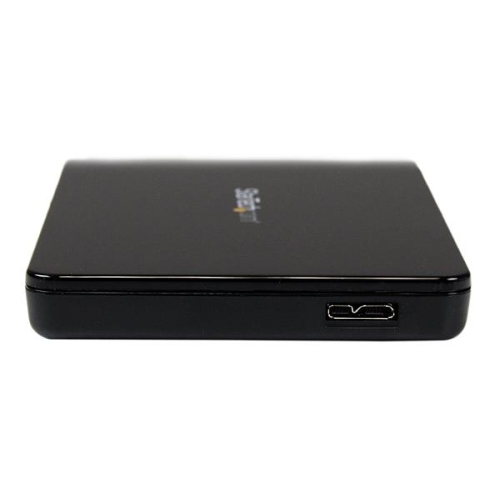

Host Connectors 1 - USB 3.0 Micro-B (10 pin, SuperSpeed)
Software
OS Compatibility OS independent; No software or drivers required
Special Notes / Requirements
System and Cable Requirements Available USB port
Indicators
LED Indicators 1 - Power & Activity
Power
Power Source USB-Powered
Environmental
Humidity Operation Humidity: 10% ~ 90% RH
Storage Humidity: 5% ~ 95% RH
Physical Characteristics
Color Black
Enclosure Type Plastic
Max Drive Height 0.4 in [9.5 mm]
Product Height 0.6 in [15 mm]
Product Length 5.2 in [131.9 mm]
Product Weight 2.5 oz [70.1 g]
Product Width 3.5 in [88 mm]
Packaging Information
Shipping (Package) Weight 0.4 lb [0.2 kg]

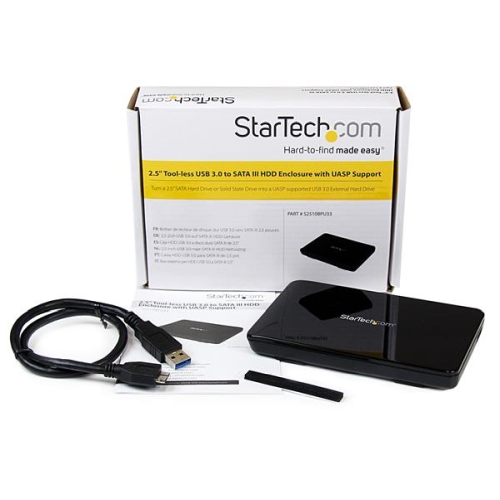

What's in the Box
Included in Package 1 - 2.5" USB 3.0 to SATA III HDD Enclosure
  1 - HDD Pad
  1 - 18" USB 3.0 Cable
  1 - Product Manual
