StarTech 35BAYCF2IDE 3.5in Drive Bay IDE to Single CF SSD Adapter Card Reader
SKU: BL11625
Model Name: 35BAYCF2IDE
Availability:
IN STOCK
Sale Price: $99.70 inc. GST
Quantity:

3.5in Drive Bay IDE to Single CF SSD Adapter Card Reader

This Compact Flash IDE adapter is a perfect solution for accessing CompactFlash (CF I, CF II) and IBM Micro Drive media, allowing you to access the flash/micro drive media as if it were an IDE hard drive.

The CF/IDE adapter can be installed in the computer case through simple mounting in an available 3.5in drive bay, for connection to the computer IDE bus through either a 40 or 44-pin connection.

Designed and constructed to provide a reliable media card platform, the CF IDE adapter is backed by StarTech.com's 2-year warranty.

The StarTech.com Advantage
  • Quick and driver free installation into any IDE 40 pin and 44 pin slot
  • Easily swap cards in and out with built-in push button ejector
Features
  • Quick and driver free installation into any IDE 40 pin and 44 pin slot
  • Fully compatible with Compact Flash Type I/II and IBM Micro-drive
  • Allows Compact flash card to be used as bootable storage
  • Easy to use jumpers offer simple master/slave drive setting
  • Can be mounted in the front or rear panel of your case, to fit into any 3.5” bay or available expansion slot
  • Easily swap cards in and out with built-in push button ejector
Warranty Information
Warranty 2 Years
Hardware
Interface IDE
Performance
Maximum Data Transfer Rate 133 MBps
Memory Media Type CF (Compact Flash I/II Card)
Connector(s)
Drive Connectors 1 - CompactFlash (50 pin) Slot
Host Connectors 1 - IDE (40 Pin, EIDE/PATA) Male
  1 - SP4 (4 pin, Small Drive Power) Male
Software
OS Compatibility OS independent; No software or drivers required
Special Notes / Requirements
Note This product does not support hot-swapping of flash cards while the PC is powered on. You must turn-off your computer to switch cards.
Environmental
Humidity 5% ~ 85% RH
Operating Temperature -55°C to 85°C (-67°F to 185°F)
Storage Temperature -55°C to 85°C (-67°F to 185°F)
Physical Characteristics
Product Height 1 in [25 mm]
Product Length 3.8 in [97 mm]
Product Weight 5.1 oz [145 g]
Product Width 3.9 in [100 mm]
Packaging Information
Shipping (Package) Weight 0.6 lb [0.3 kg]

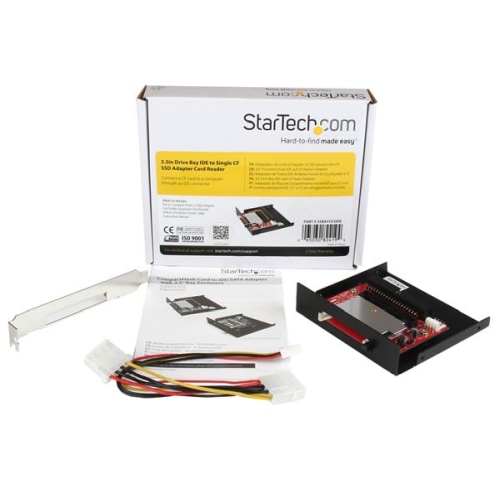

What's in the Box
Included in Package 1 - Compact Flash to IDE Adapter
  1 - 3.5” Enclosure
  1 - Full Profile Expansion Slot Bracket
  1 - SP4 to LP4 Molex Power Cable
  1 - Instruction Manual
