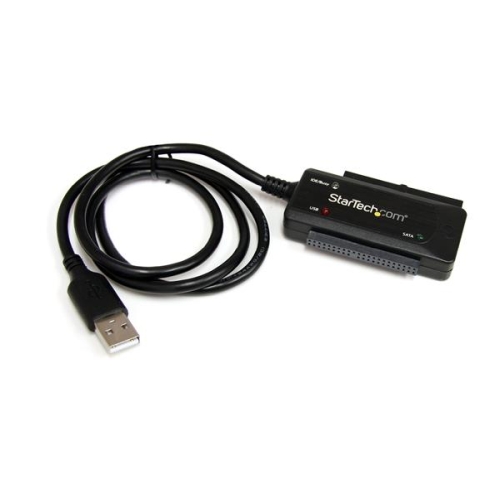

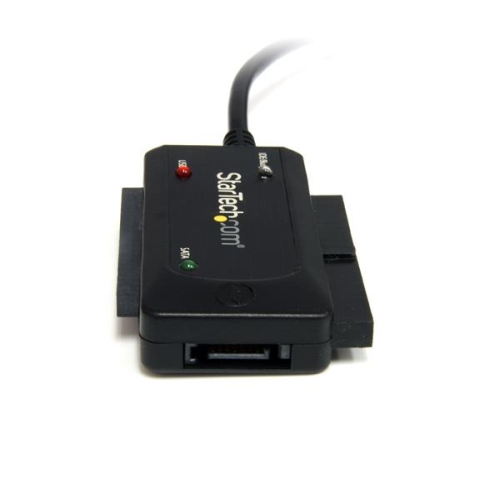

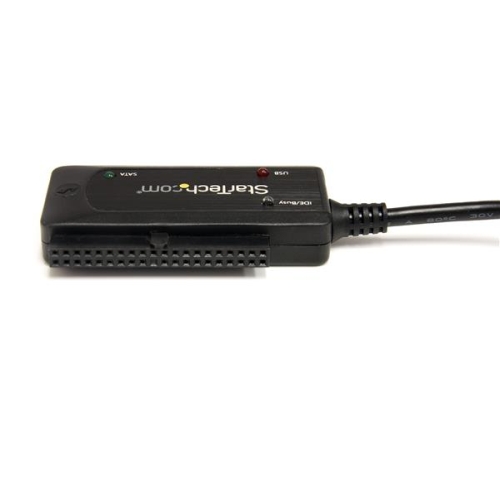

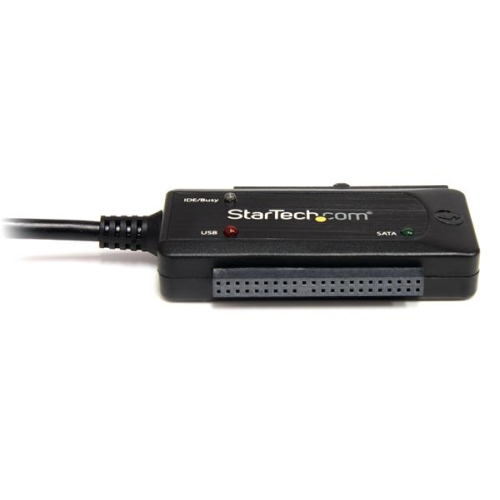

StarTech USB2SATAIDE USB 2.0 to SATA/IDE Combo Adapter for 2.5/3.5" SSD/HDD
|
||||||||||||
This USB 2.0 to IDE/SATA Adapter Cable connects any standard 2.5in or 3.5in SATA or IDE hard drive to a computer through USB 2.0. The adapter lets you connect a bare drive with no enclosure, saving time and hassle.
The USB 2.0 SATA/IDE Adapter features LED indicators that allow you to easily monitor status and activity updates, and is designed for durability and reliability.
The StarTech.com Advantage| Warranty Information | |
|---|---|
| Warranty | 2 Years |
| Hardware | |
| Chipset ID | JMicron - JM20337 |
| Compatible Drive Types | SATA & IDE |
| Drive Size | 2.5in & 3.5in |
| Performance | |
| ATAPI Support | Yes |
| Maximum Data Transfer Rate | 480 Mbps |
| Type and Rate | USB 2.0 - 480 Mbit/s |
| Connector(s) | |
| Drive Connectors | 1 - IDE (40 Pin, EIDE/PATA) Female |
| 1 - IDE (44 Pin, EIDE/PATA, 2.5" HDD) Female | |
| 1 - LP4 (4 pin, Molex Large Drive Power) Female | |
| 1 - SATA (7 pin, Data) Plug | |
| 1 - SATA Power (15 pin) Receptacle | |
| Host Connectors | 1 - USB Type-A (4 pin) USB 2.0 Male |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| Note | Backwards compatible with USB 1.1 standard, but not recommended due to slow transfer rate. Tested with 6TB 4Kn 7200 RPM drive in Mac OS 10.12 and Windows 10 |
| Indicators | |
| LED Indicators | 1 - IDE Detect/Activity |
| 1 - SATA Detect/Activity | |
| 1 - USB Link | |
| Power | |
| Input Current | 1A |
| Input Voltage | 110V-240V AC |
| Output Current | 2A |
| Output Voltage | 12/5V DC |
| Plug Type | Custom |
| Power Consumption (In Watts) | 24 |
| Power Source | AC Adapter Included |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 0.6 in [15 mm] |
| Product Length | 2.8 in [70 mm] |
| Product Weight | 1.9 oz [54 g] |
| Product Width | 1.7 in [43 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 16.1 oz [456 g] |
| What's in the Box | |
| Included in Package | 1 - USB 2.0 to SATA/IDE converter |
| 1 - SATA data cable | |

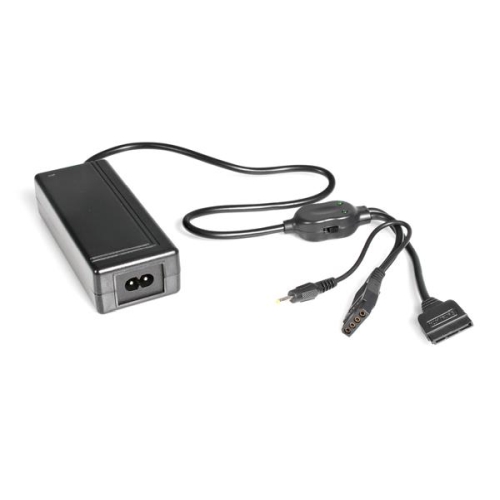

| 1 - power adapter breakout cable | |
| 1 - universal power adapter (NA/JP, UK, EU, AU) | |
| 1 - instruction manual | |
