> Computer Parts & Aces. / KVM, Cables & Connectors
StarTech SAT2M2NGFF25 M.2 SSD to 2.5in SATA III Adapter - NGFF Solid State Drive Converter with Protective Housing
SKU: AA93820
Model Name: SAT2M2NGFF25
Availability:
IN STOCK
Sale Price: $93.00 inc. GST
Quantity:

M.2 SSD to 2.5in SATA III Adapter – NGFF Solid State Drive Converter with Protective Housing

Vastly increase system performance by replacing your 2.5” SATA hard drive with an M.2 solid state drive, using the SAT2M2NGFF25 M.2 SSD to SATA adapter.

The M.2 to SATA adapter features an enclosed housing that adds protection to your NGFF (Next Generation Form Factor) SSD. The added protection gives you the peace of mind to confidently use your M.2 drive in applications that require an added level of durability such as hot-swap drive bays, or external SATA docking stations.

Using an M.2 SSD in place of a platter drive better utilizes the full potential of your SATA III controller, by reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps -- an ideal solution for further increasing the performance of a HyperDuo array.

For wide compatibility with all of the common M.2 solid state drives, the SAT2M2NGFF25 supports multiple drive heights including: 2242, 2260, 2280.

The SAT2M2NGFF25 is backed by a StarTech.com 2-year warranty, and lifetime technical support.

The StarTech.com Advantage
  • Added protection for your SSD with enclosed housing
  • Maximize system performance by replacing you 2.5in SATA platter drive with an M.2 SSD
  • Broad compatibility with support for the most common M.2 NGFF SSD heights (2242, 2260, 2280)
Features
  • Protect your M.2 (NGFF) SSD in any 2.5in application with enclosed housing
  • Add M.2 SSD performance to any computer system by converting M.2 to SATA
  • Broad compatibility with support for the most common SATA M.2 SSDs (2242, 2260, 2280)
  • Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
  • Supports 9.5mm or larger 2.5in SATA form factor housing
Warranty Information
Warranty 2 Years
Hardware
Compatible Drive Types M.2 (NGFF, B-Key)
Drive Installation Fixed
Interface SATA
Number of Drives 1
Supported Drive Height(s) 2242
  2260
  2280
Performance
Hot Swap Capability No
Maximum Data Transfer Rate 6 Gbps
Type and Rate SATA III (6 Gbps)
Connector(s)
Drive Connectors 1 - M.2 (NGFF, B-Key) Receptacle

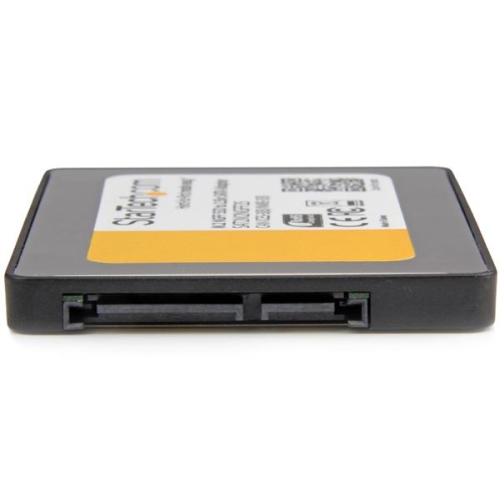

Host Connectors 1 - SATA Data & Power Combo (7+15 pin) Receptacle
Software
OS Compatibility OS independent; No software or drivers required
Environmental
Humidity 5% to 95% RH
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -10°C to 85°C (14°F to 185°F)
Physical Characteristics
Color Black
Enclosure Type Aluminum and Plastic
Product Height 0.3 in [8 mm]
Product Length 3.9 in [98 mm]
Product Weight 1.8 oz [50 g]
Product Width 2.7 in [68 mm]
Packaging Information
Shipping (Package) Weight 0.2 lb [0.1 kg]

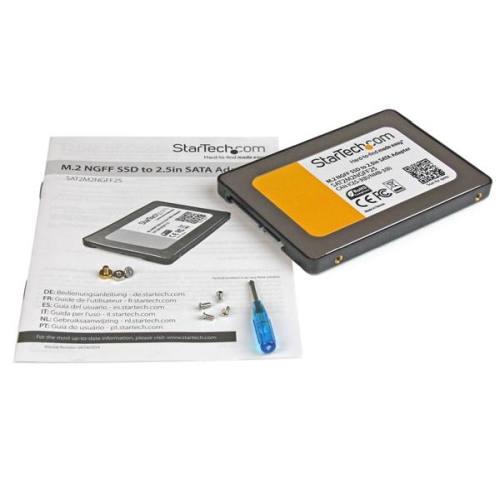

What's in the Box
Included in Package 1 - M.2 NGFF SSD to 2.5" SATA Adapter
  1 - SSD mounting kit
  1 - Housing mounting kit
  1 - Mini screw driver
  1 - Instruction manual
