StarTech USB31000SPTB Black USB 3.0 to Gigabit Ethernet Adapter NIC w/ USB Port
SKU: AA93811
Model Name: USB31000SPTB
Availability:
IN STOCK
Sale Price: $108.70 inc. GST
Quantity:

USB 3.0 to Gigabit Ethernet Adapter NIC w/ USB Port - Black

The USB31000SPTB USB 3.0 to Gigabit Ethernet Adapter lets you add a Gigabit network port to your laptop or Ultrabook™ computer through a USB 3.0 port, and features an integrated USB 3.0 pass-through port that keeps your USB port available for use with other peripherals. The RJ45 port supports 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3i/u/ab standards. The network adapter is the ideal laptop accessory for your Microsoft Surface™ Pro 4, Surface Pro 3, Surface 3, Surface Pro 2 or Surface Book.

An ideal replacement LAN adapter or laptop accessory, this compact USB 3.0 NIC leverages the 5 Gbps speed of USB 3.0 to provide full gigabit bandwidth and also offers backward compatibility with USB 2.0 systems (speed limited by USB bus).

The adapter supports features such as IPv4/IPv6 packet Checksum Offload Engine (COE) and TCP large send offload to reduce the load on your CPU. Jumbo Frames, full-duplex operation with 802.3x flow control and VLAN tagging are also supported, making this an efficient and full-featured USB network adapter.

The StarTech.com Advantage
  • Full Gigabit bandwidth support through a USB 3.0 host connection
  • Conserve available USB 3.0 ports with USB pass-through
  • Take the adapter anywhere with a portable, USB-powered design
Features
  • Gigabit Ethernet port through a USB 3.0 / 2.0 connection

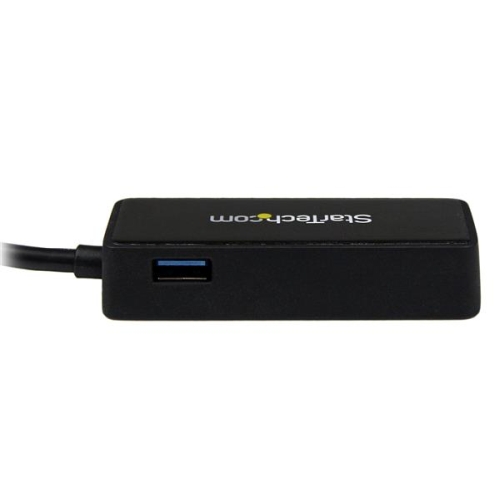

  • Integrated USB 3.0 pass-through port
  • IEEE 802.3, 802.3u and 802.3ab (10BASE-T, 100BASE-TX, and 1000BASE-T) compatible
  • Crossover Detection & Auto-Correction (Auto MDIX)
  • IEEE 802.1Q VLAN Tagging support
  • Up to 4K Jumbo Frame support
  • Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload
  • Compact, lightweight design for maximum portability
Warranty Information
Warranty 2 Years
Hardware
Bus Type USB 3.0
Chipset ID ASIX - AX88179
VIA - VL811
Industry Standards IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az

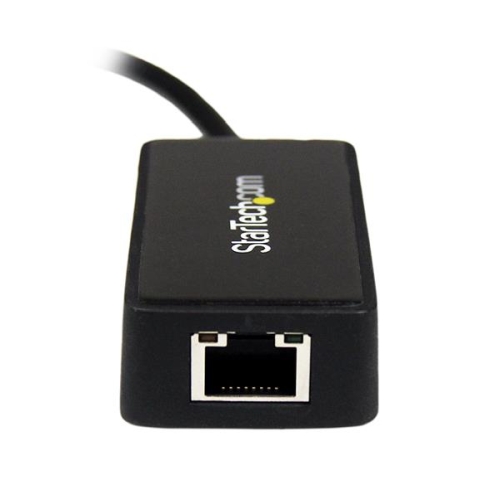

Interface RJ45 (Gigabit Ethernet)
Ports 1
USB Pass-Through Yes
Performance
Auto MDIX Yes
Compatible Networks 10/100/1000 Mbps
Full Duplex Support Yes
Jumbo Frame Support 4K max.
Max Distance 100 m / 330 ft
Maximum Data Transfer Rate 5 Gbps (USB 3.0)
2 Gbps (Ethernet - Full-Duplex)
Type and Rate USB 3.0 - 5 Gbit/s
Connector(s)
Connector Type(s) 1 - RJ-45 Female
  1 - USB Type-A (9 pin) USB 3.0 Female

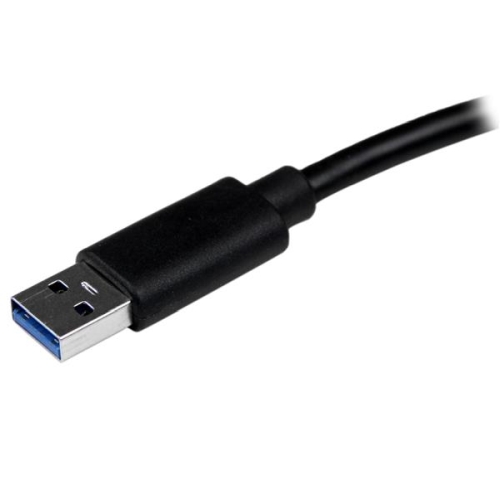

  1 - USB Type-A (9 pin) USB 3.0 Male
Software
OS Compatibility Windows XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS 10.6 to 10.12 - VLAN tagging is currently not supported in Mac OS
Linux Kernel 2.6.25 to 4.4.x LTS Versions only
Special Notes / Requirements
System and Cable Requirements Available USB Port
Indicators
LED Indicators 1 - 10/100 Link/Activity (Green)
  1 - Gigabit Link/Activity (Amber)
Power
Power Source USB-Powered
Environmental
Humidity 5~85% RH
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Cable Length 6.1 in [155 mm]
Color Black
Enclosure Type Plastic
Form Factor Attached Cable
Product Height 0.7 in [17 mm]
Product Length 5 in [126 mm]
Product Weight 1.5 oz [42 g]
Product Width 1.4 in [35 mm]

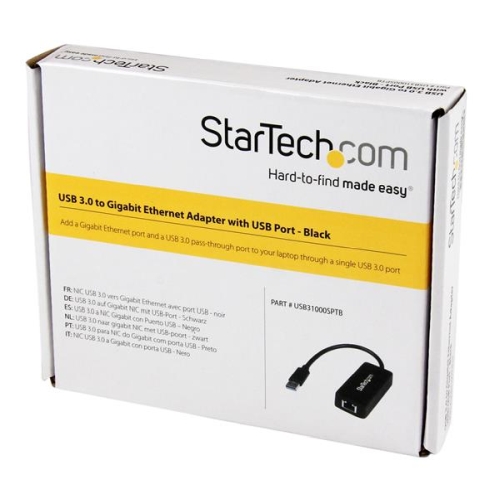

Packaging Information
Shipping (Package) Weight 4.5 oz [127 g]

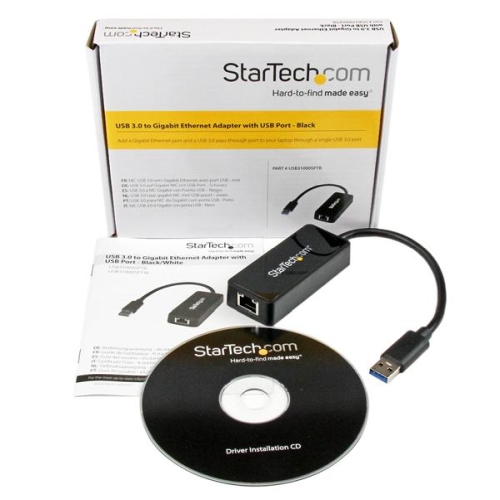

What's in the Box
Included in Package 1 - USB 3.0 Network Adapter
  1 - Driver CD
  1 - Instruction Manual
