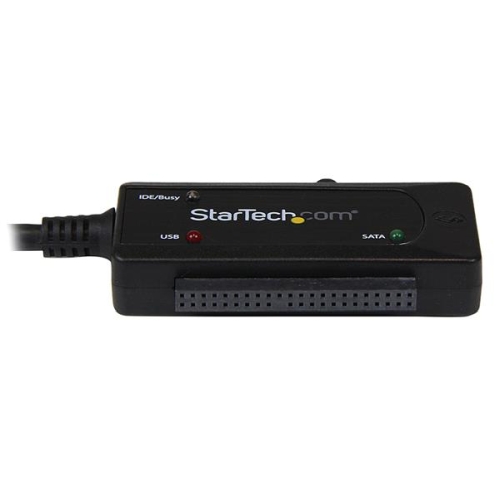

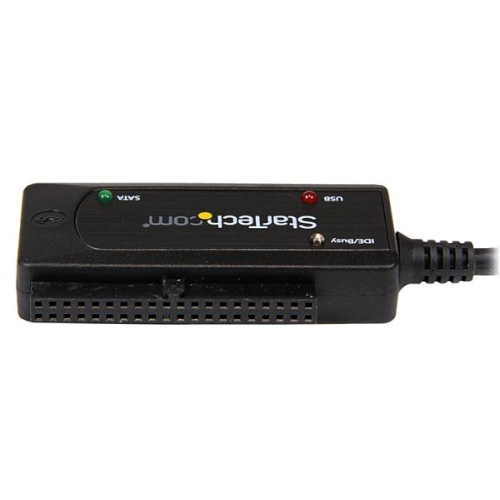

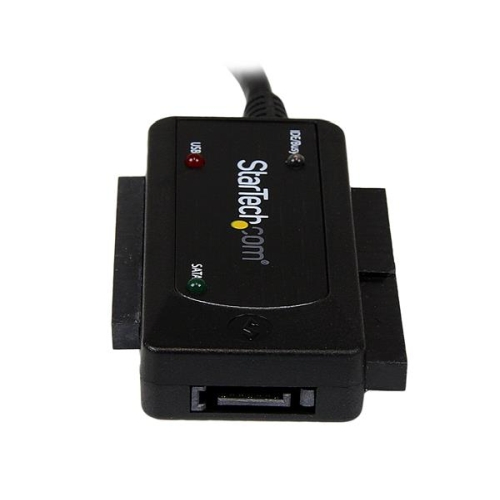

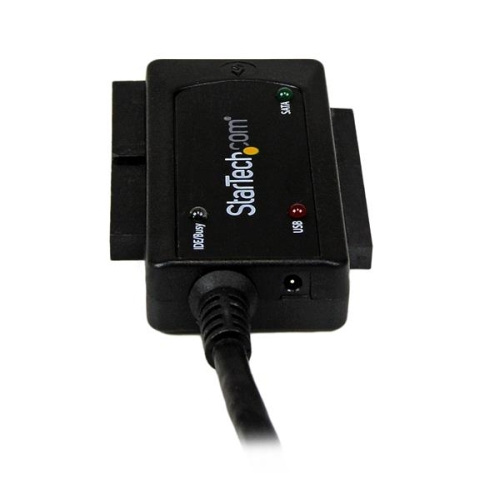

StarTech USB3SSATAIDE USB 3.0 to SATA or IDE Hard Drive Adapter / Converter
SKU: AA85615
Model Name: USB3SSATAIDE
Availability:
IN STOCK
Sale Price: $144.90 inc. GST
Quantity:

USB 3.0 to SATA or IDE Hard Drive Adapter / Converter

The USB3SSATAIDE USB 3.0 to IDE/SATA Adapter Cable connects any standard 2.5in or 3.5in SATA or IDE hard drive to a computer through an available USB 3.0 Port (Backward compatible with USB 2.0). The adapter lets you connect a bare drive with no enclosure, saving time and hassle.

The USB 3.0 SATA/IDE Adapter lets you externally connect a bare drive with no drive enclosure or HDD dock required, and features LED indicators that allow you to easily monitor status and activity updates.

The adapter cable works with Windows, Linux, and Mac computers and does not require any software or driver installation - a true plug-and-play solution for adding cost-effective external storage, or overcoming incompatibility between all hard drives and USB enabled motherboards that may not be SATA or IDE-equipped.

Backed by our 2-year warranty, the USB3SSATAIDE USB 3.0 to IDE/SATA Adapter Cable comes complete with universal adapter and power cords, providing the additional power required to connect 3.5-inch and larger capacity 2.5-inch hard drives.

The StarTech.com Advantage
  • Versatile adapter, supports both 2.5in/3.5in SATA, and IDE hard drives
  • USB 3.0, for fast access to external storage at up to 5Gbps
  • Backward compatible with USB 2.0 and 1.1
Features
  • Built in connectors for both 2.5in and 3.5in SATA Hard Drives (HDDs) and SATA Solid State Drives (SSDs) and IDE hard drives
  • LED indicators provide status and activity updates
  • Maximum transfer rate of 5Gbps using USB 3.0; 480Mbps with USB 2.0
  • Compact, portable form factor
  • Compliant with USB specification Rev 2.0 and 3.0
  • Hot swap and plug and play compatible
Warranty Information
Warranty 2 Years
Hardware
Bus Type USB 3.0
Chipset ID Innostor - IS611
Compatible Drive Types SATA & IDE
Drive Size 2.5in & 3.5in
Interface SATA & IDE
Number of Drives 1
Performance
ATAPI Support Yes
Maximum Data Transfer Rate 4.8 Gbps
MTBF 35,000 hours
Type and Rate USB 3.0 - 4.8 Gbit/s
Connector(s)
Drive Connectors 1 - IDE (40 Pin, EIDE/PATA) Female
  1 - IDE (44 Pin, EIDE/PATA, 2.5" HDD) Female
  1 - LP4 (4 pin, Molex Large Drive Power) Male
  1 - SATA (7 pin, Data) Female
  1 - SATA Power (15 pin) Female

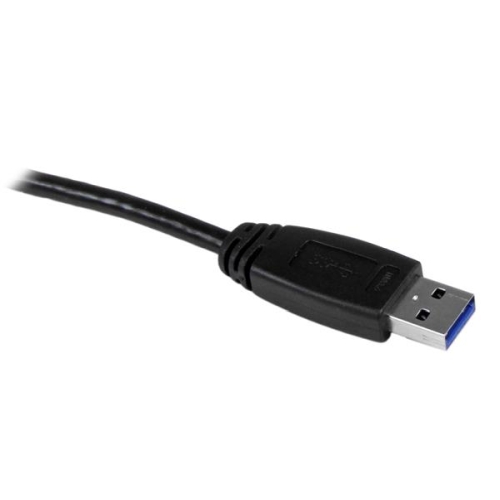

Host Connectors 1 - USB Type-A (9 pin) USB 3.0 Male
Software
OS Compatibility OS independent; No software or drivers required
Special Notes / Requirements
Note Backwards compatible with USB 1.1 standard, but not recommended due to slow transfer rate.
Indicators
LED Indicators 1 - IDE Detect/Activity
  1 - SATA Detect/Activity
  1 - USB Link
Power
Output Current 2A
Power Source AC Adapter Included
Environmental
Humidity 5% ~ 85% RH
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Color Black
Enclosure Type Plastic
Product Height 0.7 in [18 mm]
Product Length 2.8 in [70 mm]
Product Weight 2.2 oz [62 g]
Product Width 1.7 in [43 mm]
Packaging Information
Shipping (Package) Weight 23.1 oz [653 g]
What's in the Box
Included in Package 1 - USB 3.0 to SATA/IDE converter
  1 - SATA data cable
  1 - power adapter breakout cable
  1 - universal power adapter (NA/JP, UK, EU, AU)
  1 - instruction manual
