StarTech 35BAYUSB3S4 USB 3.0 Front Panel 4 Port Hub – 3.5in or 5.25in Bay
SKU: AA84223
Model Name: 35BAYUSB3S4
Availability:
IN STOCK
Sale Price: $154.70 inc. GST
Quantity:

USB 3.0 Front Panel 4 Port Hub – 3.5in or 5.25in Bay

The 35BAYUSB3S4 3.5-inch Front Bay to 4-Port USB 3.0 Panel Hub turns any available 3.5-inch computer case front bay into a 4-Port USB 3.0 hub.

Using only a single USB connection, this front panel hub adds four easily accessible USB ports to the front of your computer case through a 3.5-inch bay, or through a 5.25-inch bay using the optional Front Bay Bracket Adapter (BRACKETFDBK) accessory. Each of the added ports is compliant with the USB 3.0 standard which supports up to 5 Gbps of bandwidth (10x faster than the USB 2.0 standard) and up to 900mA of power.

Accessorize with the PEXUSB3S11 PCI Express card to provide an internal USB 3.0 port, so as to keep the external ports free for external devices. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
  • Connect up to four USB 3.0/2.0/1.x devices simultaneously, through your computers front 3.5" bay
  • SuperSpeed USB 3.0 supports up to 5 Gbps of bandwidth and up to 900mA of power per port to support faster and more powerful devices
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support
Features

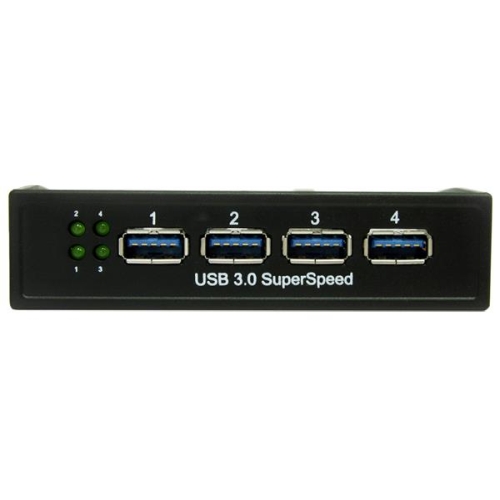

  • Four front accessible USB type-A ports
  • Fits into any 3.5" computer case front bay
  • SuperSpeed USB 3.0 compliant, supporting data transfer rates up to 5 Gbps
  • Backward compatible with USB 2.0 and USB 1.0/1.1 specifications and devices
  • Provides up to 900mA of power per port
  • USB Link LED indicator for each port
Warranty Information
Warranty 2 Years
Hardware

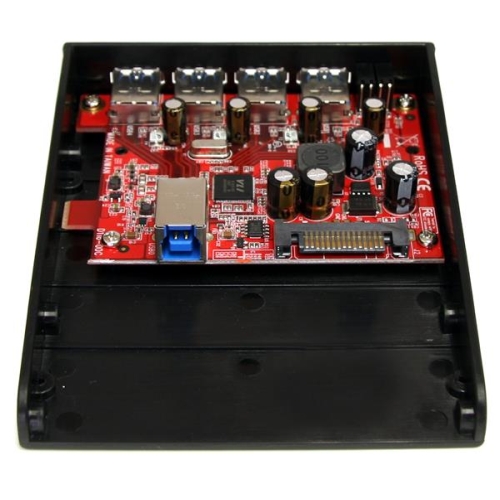

Chipset ID VLI - VL811+
Fast-Charge Port(s) No
Interface USB 3.0
Ports 4
USB-C Device Port(s) No
USB-C Host Connection No
Performance
Type and Rate USB 3.0 - 5 Gbit/s
Connector(s)
External Ports 4 - USB Type-A (9 pin) USB 3.0 Female
Internal Ports 1 - SATA Power (15 pin) Plug
  1 - USB Type-B (9 pin) USB 3.0 Female
Software
OS Compatibility OS Independent; No additional drivers or software required
Special Notes / Requirements
System and Cable Requirements Available 3.5 inch front bay
  Available USB 3.0 type A port
Indicators
LED Indicators 4 - USB Device Link (Green)
Power
Power Source USB-Powered
Environmental
Humidity 20% ~ 80% RH
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Physical Characteristics
Color Black
Enclosure Type Plastic
Form Factor Drive Bay
Product Height 1 in [25 mm]
Product Length 4.7 in [120 mm]
Product Weight 3.5 oz [100 g]
Product Width 3.9 in [100 mm]
Packaging Information
Shipping (Package) Weight 7.6 oz [214 g]

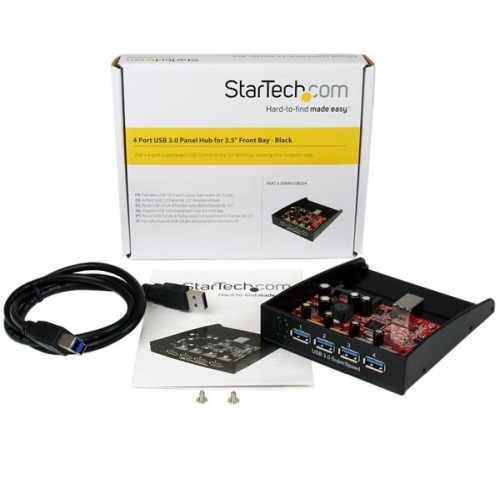

What's in the Box
Included in Package 1 - 3.5" Front Panel
  1 - USB 3.0 Cable
  1 - Mounting Screw Kit
  1 - Instruction Manual
