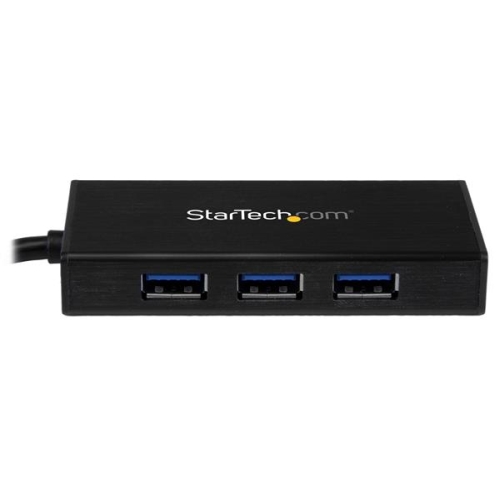

StarTech ST3300GU3B 3-Port Portable USB 3.0 Hub plus Gigabit Ethernet - Aluminum with Built-in Cable
|
||||||||||||
The ST3300GU3B Portable USB 3.0 Hub features an integrated GbE port, enabling you to expand your laptop connectivity by adding three external USB 3.0 ports, as well as a Gigabit network port via a single USB 3.0 connection. This hub is an ideal laptop accessory for your Microsoft Surface™ Pro 4, Surface Pro 3, Surface Book, Dell™ XPS 13, and many other devices.

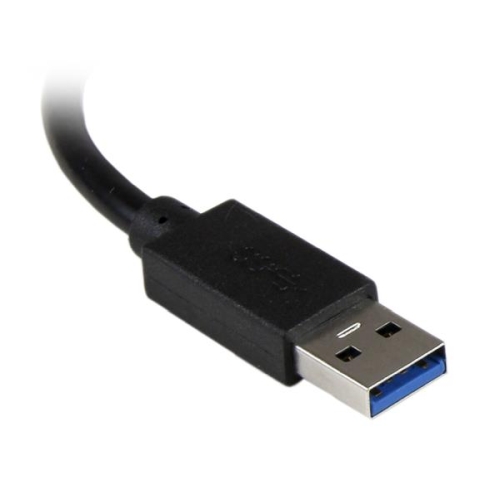

The hub merges Gigabit network support and USB 3.0 hub access into lightweight yet sturdy aluminum casing, providing vital connectivity ports that are often limited or nonexistent on modern mobile computers, while remaining compact and travel-friendly. Plus, with an attached USB 3.0 host connection cable there’s no need to carry a separate cable with you, so you can tuck the hub neatly into your laptop bag for maximum portability.

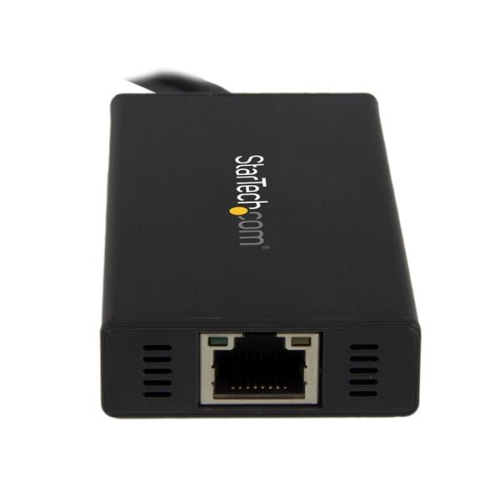

For faster and more consistent network connections, the integrated Ethernet port leverages the 5Gbps capabilities of the USB 3.0 interface to provide wired Gigabit access that is fully compatible with IEEE 802.3/u/ab standards. Plus, the GbE port supports Wake-on-LAN (WOL), so you can remotely wake your computer over your network.
An ideal laptop accessory, this mobile USB hub is great for connecting low-power peripherals like a mouse, keyboard or USB flash drive, and also includes a universal power adapter for connecting devices such as external hard drive enclosures.
The StarTech.com Advantage| Warranty Information | |
|---|---|
| Warranty | 2 Years |
| Hardware | |
| Bus Type | USB 3.0 |
| Chipset ID | Genesys Logic - GL3522 (USB 3.0) ASIX - AX88179 (LAN) |
| Fast-Charge Port(s) | No |
| Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, 802.1q VLAN Tagging, 802.1p Layer 2 Priority Encoding | |
| USB 3.0 - Backward compatible with USB 2.0 and 1.1 | |
| Interface | USB 3.0 |
| USB 3.1 Gen 1 | |
| RJ45 (Gigabit Ethernet) | |
| Ports | 3 |
| USB-C Device Port(s) | No |
| USB-C Host Connection | No |
| Performance | |
| Auto MDIX | Yes |
| Auto-Negotiation | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Flow Control | Full duplex flow control |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 4K max. |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| Connector(s) | |
| Connector Type(s) | 3 - USB Type-A (9 pin) USB 3.0 Female |
| 1 - RJ-45 Female | |
| 1 - USB Type-A (9 pin) USB 3.0 Male | |
| Software | |
| OS Compatibility | Windows XP, Vista, 7, 8, 8.1, 10 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS 10.6 to 10.12 Chrome OS™ Linux 2.6.x to 4.4.x LTS versions only |
| Special Notes / Requirements | |
| Note | If connected to a USB 2.0 host port, performance may be limited |
| System and Cable Requirements | Available USB 3.0 port |
| Indicators | |
| LED Indicators | 1 - Link |
| 1 - Activity | |

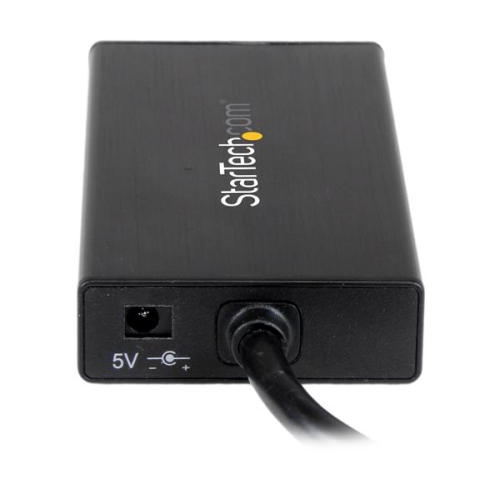

| Power | |
| Center Tip Polarity | Positive |
| Input Current | 300 mA |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 2 A |
| Output Voltage | 5 DC |
| Plug Type | H |
| Power Consumption (In Watts) | 10 |
| Power Source | AC Adapter Included |
| Environmental | |
| Humidity | 0~85% RH (Non-Condensing) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 75°C (14°F to 167°F) |
| Physical Characteristics | |
| Cable Length | 5.8 in [148 mm] |
| Color | Black |
| Enclosure Type | Aluminum |
| Form Factor | Compact |
| Product Height | 0.6 in [14 mm] |
| Product Length | 3.4 in [87 mm] |
| Product Weight | 2.2 oz [62 g] |
| Product Width | 1.7 in [43 mm] |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 12.9 oz [366 g] |

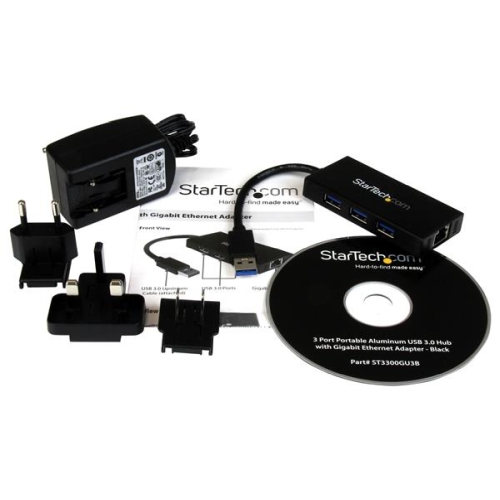

| What's in the Box | |
| Included in Package | 1 - Aluminum USB 3.0 Hub w/ GbE Adapter |
| 1 - Universal Power Adapter (NA/JP, EU, UK, ANZ) | |
| 1 - Driver CD | |
| 1 - Instruction Manual | |
