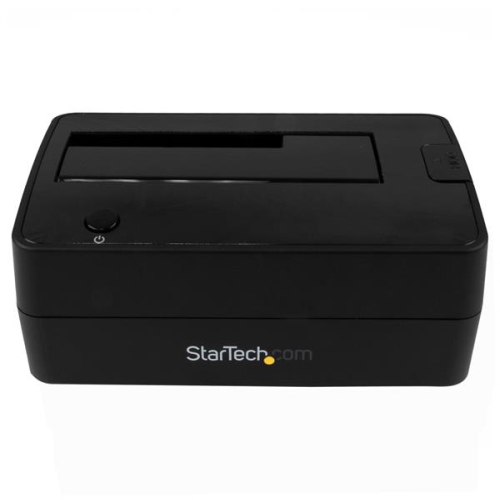

StarTech SDOCKU313 USB 3.1 (10Gbps) Single-Bay Dock for 2.5"/3.5" SATA SSD/HDD
SKU: BF42729
Model Name: SDOCKU313
Availability:
IN STOCK
Sale Price: $210.10 inc. GST
Quantity:

USB 3.1 (10Gbps) Single-Bay Dock for 2.5"/3.5" SATA SSD/HDD

Unleash the power of USB 3.1 Gen 2 (10 Gbps) with this single-drive docking station. It supports both 2.5” and 3.5” form factors for solid-state and hard drives, with a high drive capacity of 6TB.

Harness the speed of USB 3.1 Gen 2

USB File Transfer Rates diagram shows USB 3.1 Gen 2 at 10 Gbps is twice the speed of USB 3.0  at5 Gbps

USB 3.1 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.

Top-loading design for easy drive access

Top-loading design allows easy access to your drive

It’s never been easier to dock and swap drives from your desktop computer or laptop. Simply insert your drives into the top loading slot, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.

Convenient compatibility

The docking station comes with a USB Type-A to B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices.  It also supports UASP for enhanced performance.

The SDOCKU313 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features
  • Access data from one 2.5 or 3.5” SATA SDD/HDD over ultra-fast USB 3.1 Gen 2
  • Access drives at full speed with support of SATA I, II and III (up to 6 Gbps)
  • Top-loading design with built-in ejection button for easy drive access
  • UASP support for enhanced performance
  • Supports large drive capacity of up to 6TB
  • Multi-function LED indicators
  • Backward compatible with USB 3.0, 2.0 and 1.x
Warranty Information
Warranty 2 Years
Hardware
Bus Type USB 3.1 Gen 2
Chipset ID ASMedia - ASM1351
Compatible Drive Types SATA
Drive Installation Removable
Drive Size 2.5in & 3.5in
Fan(s) No
Interface USB 3.1 Gen 2
Number of 2.5 inch bays 2
Number of Drives 1
Performance
Max Drive Capacity Currently tested with hard drives up to 6TB at 7200 RPM
Maximum Data Transfer Rate 10 Gbps
TRIM Support Yes
Type and Rate USB 3.1 Gen 2 - 10 Gbit/s
  SATA III (6 Gbps)
UASP Support Yes

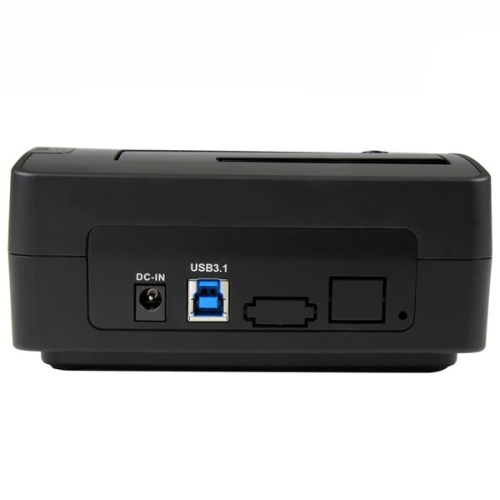

Connector(s)
Drive Connectors 1 - SATA Data & Power Combo (7+15 pin) Receptacle
Host Connectors 1 - USB 3.1 USB Type-B (9 pin, Gen 2, 10 Gbps) Female
Software
OS Compatibility OS independent; No software or drivers required
Indicators
LED Indicators 1 - Power & Activity
Power
Center Tip Polarity Positive
Input Current 0.8
Input Voltage 100 ~ 240 AC
Output Current 2A
Output Voltage 12 DC
Plug Type M
Power Consumption (In Watts) 24
Power Source AC Adapter Included
Environmental
Humidity 20% ~ 80% RH
Operating Temperature 5°C to 35°C (35°F to 95°F)
Storage Temperature -20°C to 50°C (-4°F to 122°F)
Physical Characteristics
Color Black
Enclosure Type Plastic
Product Height 2.5 in [63.6 mm]
Product Length 5.7 in [144.8 mm]
Product Weight 14 oz [398 g]
Product Width 3.6 in [92.7 mm]
Packaging Information
Shipping (Package) Weight 28.4 oz [804 g]

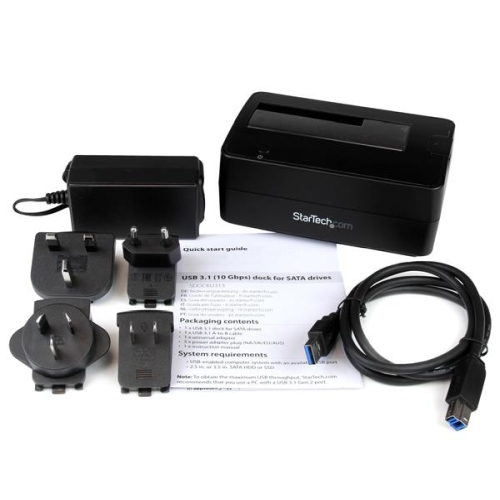

What's in the Box
Included in Package 1 - USB 3.1 HDD Dock
  1 - USB Cable
  1 - Universal Power Adapter
  4 - Power Adapter Plugs (NA,EU,UK,ANZ)
  1 - Quick Install Guide
