StarTech ST4300USBM Mountable 4 x Port Rugged Industrial SuperSpeed USB3.0 Hub
SKU: AA85347
Model Name: ST4300USBM
Availability:
IN STOCK
Sale Price: $253.80 inc. GST
Quantity:

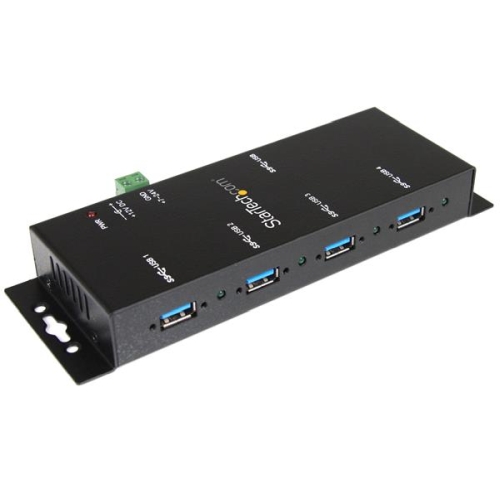

4-Port Industrial USB 3.0 Hub - Mountable

The ST4300USBM Mountable 4-Port Industrial USB Hub (USB 3.0) offers a simple way to expand a systems current USB capability by providing 4 additional external USB 3.0 ports from a single USB 3.0 host connection, with speeds up to 5 Gbps.

Diagram of the hub mounted to a surface underneath a desk

Designed for extreme operating environments, this industrial-grade hub provides reliability under almost any condition and can be securely mounted to most surfaces.

Fully compliant with the SuperSpeed USB 3.0 specification, this industrial USB hub is backward compatible with USB 2.0 and 1.x specifications for simultaneous support of older USB peripherals or even older systems without USB capabilities.

The StarTech.com Advantage
  • Four USB 3.0 compliant ports with support for speeds up to 5 Gbps, while still compatible with USB 2.0/1.x devices at the same time
  • An all metal chassis, built-in surface mounting brackets and choice of power input method makes this versatile enough for almost any environment
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support
Features
  • SuperSpeed USB 3.0 compliant, supporting transfer rates up to 5 Gbps
  • Backwards compatible with USB 2.0 and 1.x specifications and devices
  • Fully supports USB 3.0 and 2.0/1.x devices simultaneously
  • Support for screw-locking USB cables (sold separately)
  • Internal dual-regulator power circuits provide up to 900mA of stable and reliable power per port
  • Bus power, coaxial power adapter and terminal block style power input options supported
  • All metal construction
  • Built-in surface mounting brackets
  • Plug-and-Play and hot-swap compatible
Warranty Information
Warranty 2 Years
Hardware
Chipset ID VIA - VL811+
Fast-Charge Port(s) No
Interface USB 3.0
Ports 4
USB-C Device Port(s) No
USB-C Host Connection No
Performance
Maximum Data Transfer Rate 5 Gbps
MTBF 245,881 Hours

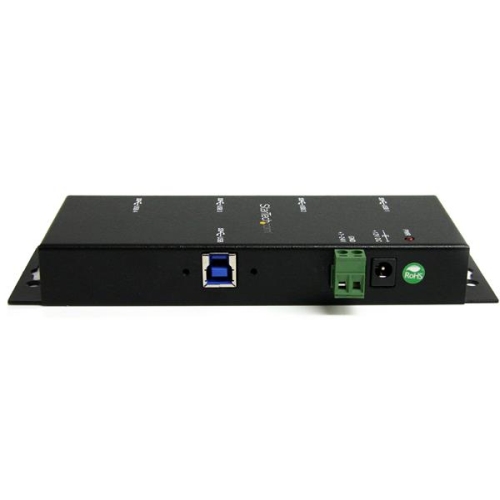

Connector(s)
External Ports 1 - Terminal Block (2 Wire)
  1 - USB Type-B (9 pin) USB 3.0 Female

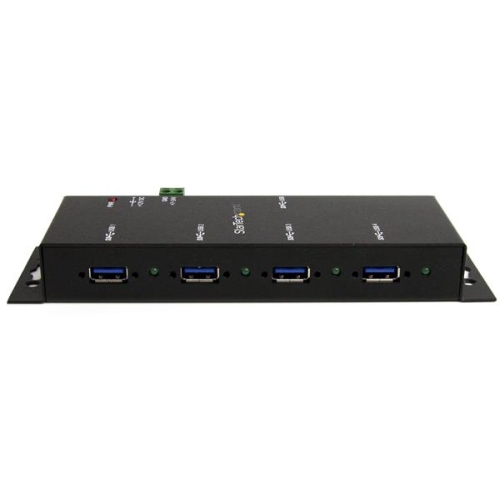

  4 - USB Type-A (9 pin) USB 3.0 Female
Software
OS Compatibility OS Independent; No additional drivers or software required
Special Notes / Requirements
System and Cable Requirements Available USB 3.0 port
Indicators
LED Indicators 1 - Power (Red)
  4 - USB Device Connection (Green)
Power
Center Tip Polarity Positive
Output Current 3A
Output Voltage 12 DC
Plug Type M
Power Consumption (In Watts) 36
Power Source AC Adapter Included
Environmental
Humidity 5~95% RH
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Physical Characteristics
Color Black
Enclosure Type Steel
Form Factor Industrial
Product Height 0.9 in [23.5 mm]
Product Length 6 in [152 mm]
Product Weight 16.9 oz [480 g]
Product Width 2.3 in [59.6 mm]
Packaging Information
Shipping (Package) Weight 47.7 oz [1350 g]

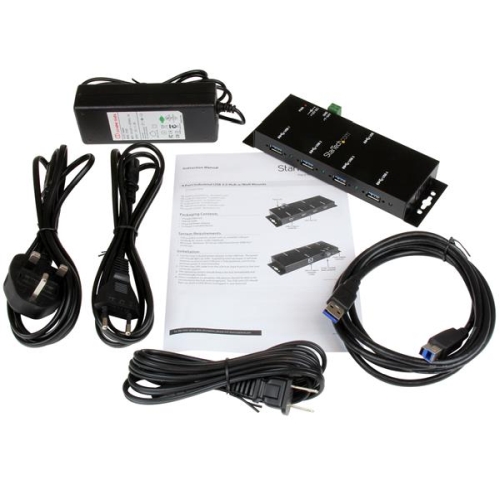

What's in the Box
Included in Package 1 - Industrial USB 3.0 Hub
  1 - USB 3.0 cable (non-locking)
  1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
  1 - Instruction Manual
