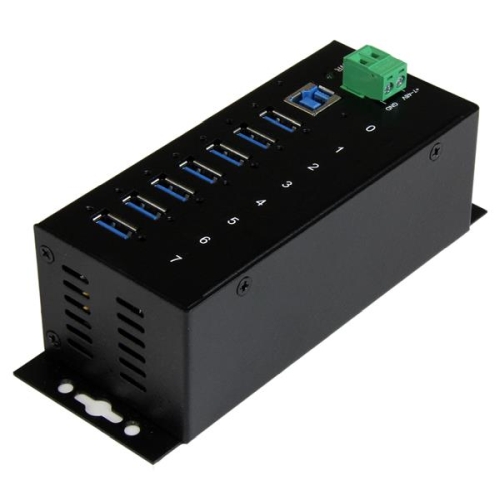

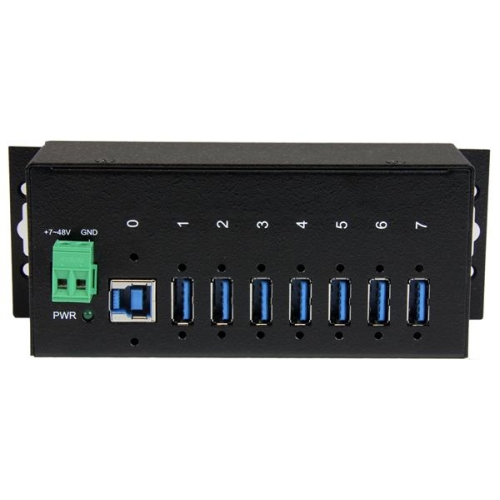

StarTech ST7300USBME 7-Port Industrial USB 3.0 Hub with ESD Protection
|
||||||||||||
Engineered to meet the challenges of tough industrial environments, this USB 3.0 hub lets you expand your connectivity options by adding seven external USB 3.0 ports to your computer.
Now you can increase your everyday productivity by gaining powerful and convenient access to your external hard drives, printers, mobile devices and other peripherals.
Designed for performance and durability, the industrial-grade hub features a rugged, metal housing. Its wide-range 7-48V DC terminal block input gives you the flexibility to power the hub as required, based on your own power input capabilities. Plus, it supports an extended operating temperature range (0°C to 70°C), helping to ensure reliable performance even in the most demanding factory and industrial environments.
The rugged hub also offers ESD protection to each USB port, which can help safeguard your investments by preventing damage to your connected devices.
This wall-mountable USB 3.0 hub can be securely mounted to surfaces, under desks, and in other high traffic areas where there is a concern that USB connections may become unplugged. Plus, it also includes optional DIN rail mounts for use with equipment rack installations.
Compliant with SuperSpeed USB 3.0, this industrial hub supports 5Gbps bandwidth. It's also backward compatible with USB 2.0 and 1.x specifications, simultaneously supporting older USB peripherals or legacy systems that lack USB 3.0 capabilities.
The ST7300USBME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Features| Warranty Information | |
|---|---|
| Warranty | 2 Years |
| Hardware | |
| Bus Type | USB 3.0 |
| Chipset ID | Genesys Logic - GL3520 |
| Fast-Charge Port(s) | Yes |
| Industry Standards | USB Battery Charging Specification Rev. 1.2 USB 3.0 - Backward compatible with USB 2.0 and 1.1 |
| Interface | USB 3.0 |
| Ports | 7 |
| USB-C Device Port(s) | No |
| USB-C Host Connection | No |
| Performance | |
| Maximum Data Transfer Rate | 5 Gbps |
| MTBF | 126,106 Hours |
| Surge Protection | 15kV ESD protection |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| Connector(s) | |
| Connector Type(s) | 7 - USB Type-A (9 pin) USB 3.0 Female |
| 1 - USB Type-B (9 pin) USB 3.0 Female | |
| 1 - Terminal Block (2 Wire) | |
| Software | |
| OS Compatibility | OS Independent; No additional drivers or software required |
| Special Notes / Requirements | |
| Note | If connected to a USB 2.0 host port, performance may be limited |
| This product is intended for use with terminal block power only – Standard AC adapter not available | |
| System and Cable Requirements | Host computer with an available USB 3.0 port |
| Indicators | |
| LED Indicators | 1 - Power (Green) |
| Power | |
| Input Voltage | 7 ~ 48 DC |
| Power Source | Terminal Block |
| Environmental | |
| Humidity | 5%~95% RH (Non-condensing) |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Form Factor | Industrial |
| Product Height | 1.8 in [45 mm] |
| Product Length | 5.7 in [145 mm] |
| Product Weight | 11.5 oz [325 g] |
| Product Width | 2.1 in [54 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 21.5 oz [610 g] |

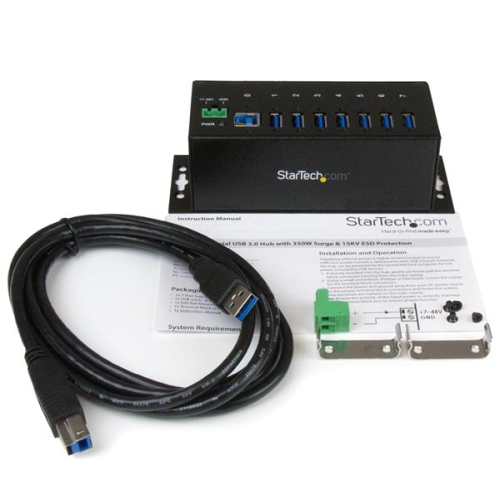

| What's in the Box | |
| Included in Package | 1 - 7 Port Industrial USB 3.0 Hub |
| 1 - USB 3.0 A - B Cable | |
| 1 - DIN Rail Mounting Kit | |
| 1 - Terminal Block (2 Wire) | |
| 1 - Instruction Manual | |
