ATEN UC-232A USB-to-Serial Converter
SKU: WAW0220
Model Name: UC-232A
Availability:
IN STOCK
Sale Price: $25.70 inc. GST
Quantity:

UC232A is a USB to RS232 serial port converter. It provides PCs, notebooks and handheld computing devices using USB an external PnP RS232 port.

  • Support the RS232 Serial interface.
  • Full compliance with the USB Specification.
  • Up to 230Kbps data transfer rate.
  • Works with cellular phones, PDAs, digital cameras, modems or ISDN terminal adapter.
  • OS Compatibility: WIN98, WIN ME, WIN 2K, WIN 2003, WIN XP, WIN Vista, WIN 7, WIN 8, LINUX and Mac OS 8.6/9/10.

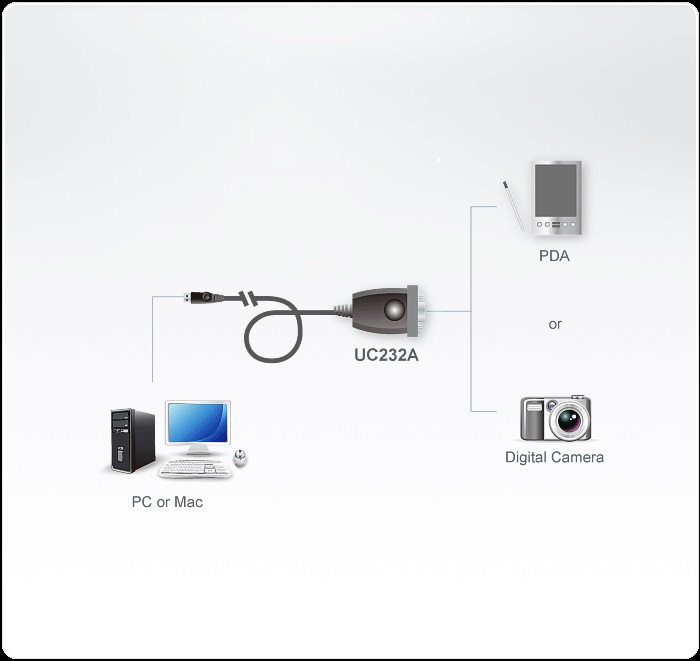

Diagram:

Specifications:
Connectors
USB Port 1 x USB Type A Male (White)
Serial 1 x DB-9 Male (Silver)
Data Rate Up to 230 KBps
Cable Length 35cm
LEDs Data Transfer / Handshaking (Orange)
Power Mode Bus Powered
USB Specification USB compliant
Environmental
Operating Temperature 0–40°C
Storage Temperature -20–60°C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.04 kg ( 0.09 lb )
Dimensions (L x W x H) 6.59 x 3.40 x 1.60 cm
(2.59 x 1.34 x 0.63 in.)
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
The UC232A now supports Android 3.2 and above. To download the UC232A App from the Google Play, please scan the QRCode.

Package Contents:
  • 1x USB-to-Serial Converter
  • 1x Driver Disk
  • 1x User Instructions
