StarTech ICUSB422IS 1 Port Metal Industrial USB to RS422/485 Serial Adapter
SKU: BY20363
Model Name: ICUSB422IS
Availability:
IN STOCK
Sale Price: $229.50 inc. GST
Quantity:

1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation

The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block.

The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices.

The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere.

The StarTech.com Advantage
  • Supports RS-485 and RS-422 serial interfaces via DB9 or Terminal Block connections for versatile connection options
  • Circuit isolation provides electrical protection for sensitive, and often expensive industrial equipment
  • Rugged, USB Bus powered enclosure requiring no external power adapter for simple integration into harsh industrial environments
Features
  • Provides one RS422/485 port while powering the device through USB
  • RS-485 mode supports Auto Transceiver Turn Around (ATTA)
  • Compatible with both USB 2.0 and USB 1.1
  • RS422/485 Baud rate up to 921.6 Kbps
  • Supports DB9 and terminal block connector
  • Optical Isolation and Surge Protection (2500 Vrms)
  • Supports 4-wire RS422 and 2-wire RS485 applications
Warranty Information
Warranty 2 Years
Hardware
Bus Type USB 2.0
Chipset ID FTDI - FT232RL
Interface Serial
Port Style External Hub
Ports 1
Performance
Data Bits 7, 8
FIFO 256 Bytes
Isolation 2500 Vrms
Max Baud Rate 921.6 Kbps
Parity Even, Odd, Mark, Space, None
Serial Protocol RS-422/485
Stop Bits 1, 2
Surge Protection 500W
Connector(s)

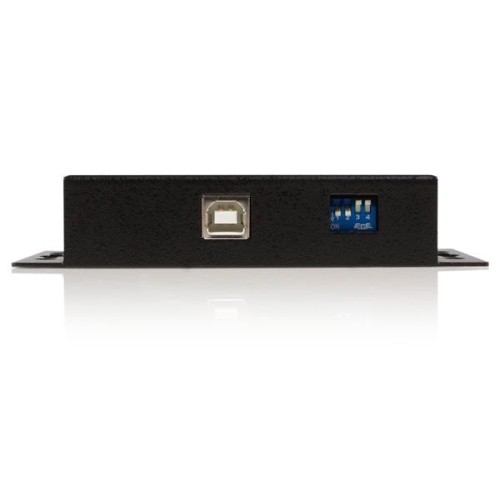

Connector Type(s) 1 - USB B (4 pin) Female

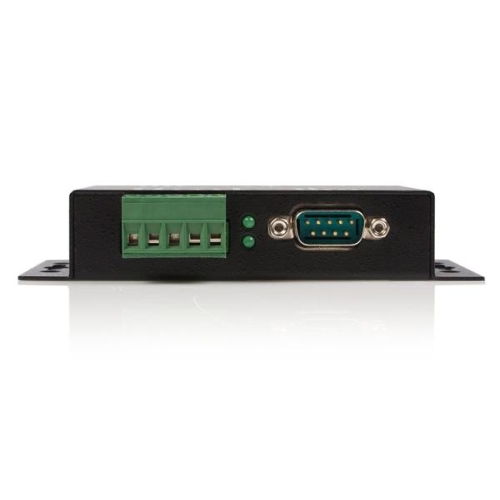

External Ports 1 - DB-9 (9 pin, D-Sub) Male
  1 - Terminal Block (5 Wire)
Software
OS Compatibility Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS 10.6 to 10.13
Linux 2.4.x to 4.11.x LTS Versions only
Power
Input Current 200mA
Input Voltage 5 DC
Power Source USB-Powered
Environmental
Humidity 5~95% RH
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Physical Characteristics
Cable Length 6 ft [1.8 m]
Color Black
Enclosure Type Steel
Product Height 0.9 in [23 mm]
Product Length 4.6 in [118 mm]
Product Weight 6.4 oz [180 g]
Product Width 2.5 in [64 mm]
Packaging Information
Shipping (Package) Weight 0.9 lb [0.4 kg]

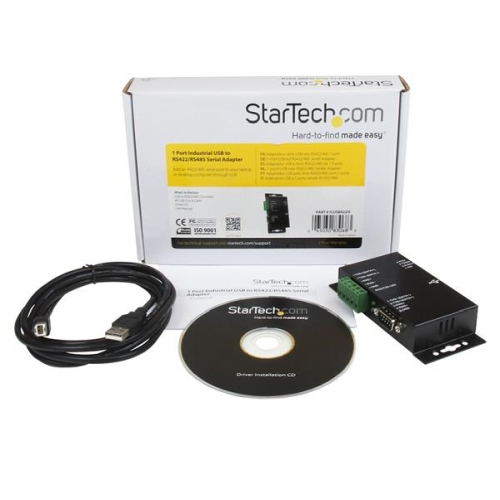

What's in the Box
Included in Package 1 - USB to RS422/485 Converter
  1 - 6ft USB A to B Cable
  1 - Driver CD
  1 - User Manual
