StarTech ICUSB232DB25 USB to RS232 DB9/DB25 Serial Adapter Cable - M/M
|
||||||||||||

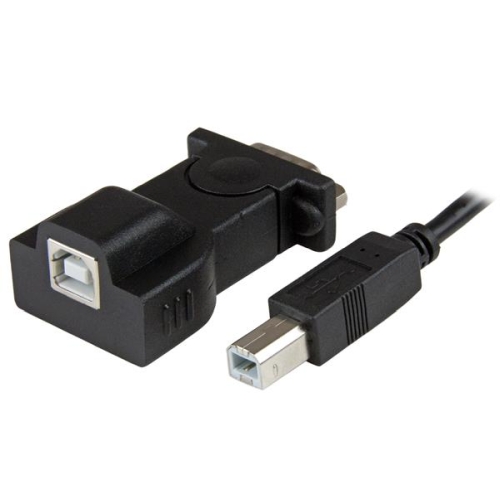

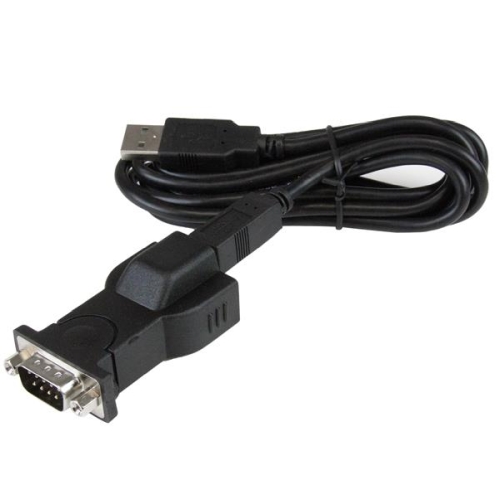

The ICUSB232D 1 Port USB to Serial Adapter lets you add an RS232 DB9 serial port to your laptop or desktop computer through USB, so you can connect to, monitor and control a serial device. For easy connections, the adapter features a female USB type-B port, so you can choose the length of USB cable needed to reach your serial device (6ft / 1.8m USB A-B cable included).
The USB to RS232 adapter is a convenient and cost-saving solution for providing legacy serial connectivity to devices such as point-of-sale terminals, serial modems, industrial equipment and a wide variety of other RS232 peripherals.
The USB to serial converter is easy to install and offers broad operating system compatibility including Windows®, Mac OS® and Linux for easy integration into mixed environments, and offers support for transfer rates up to 128 Kbps.
The StarTech.com Advantage| Warranty Information | |
|---|---|
| Warranty | 2 Years |
| Hardware | |
| Bus Type | USB 2.0 |
| Chipset ID | Prolific - PL2303TA |
| Industry Standards | USB 2.0/1.1 RS232 |
| Interface | Serial |
| Port Style | Cable Adapters |
| Ports | 1 |
| Performance | |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 512 Bytes |
| Flow Control | None, Xon/Xoff, RTS/CTS, DCD/DTR/DSR |
| Max Baud Rate | 128 Kbps |
| Parity | None, Odd, Even, Mark, Space |
| Serial Protocol | RS-232 |
| Stop Bits | 1, 1.5, 2 |
| Connector(s) | |
| Connector Type(s) | 1 - USB B (4 pin) Female |

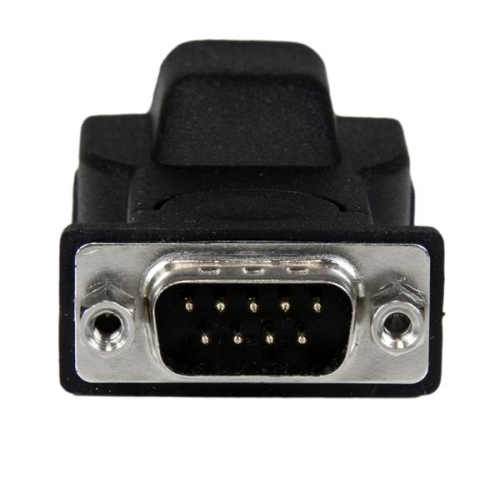

| 1 - DB-9 (9 pin, D-Sub) Male | |
| Software | |
| OS Compatibility | Windows XP, Vista, 7, 8, 8.1, 10 Windows Server 2003, 2008 R2, 2012, 2016 Mac OS 10.6 to 10.12 Linux 3.5.x to 4.11.x LTS Versions only |
| Special Notes / Requirements | |
| System and Cable Requirements | Available USB 1.1 (or above) port |
| Power | |
| Power Source | USB-Powered |
| Environmental | |
| Humidity | 5~95% RH (Non-Condensing) |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -10°C to 80°C (14°F to 176°F) |
| Physical Characteristics | |
| Cable Length | 6 ft [1.8 m] |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 0.9 in [22 mm] |
| Product Length | 2.3 in [59 mm] |
| Product Weight | 1.2 oz [35 g] |
| Product Width | 1.3 in [32 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 7 oz [198 g] |

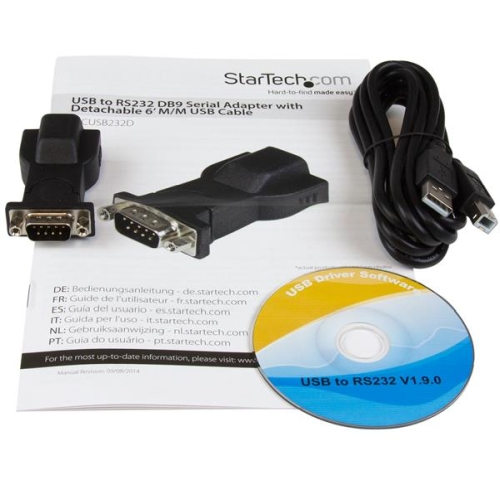

| What's in the Box | |
| Included in Package | 1 - USB to RS232 Adapter |
| 1 - 6ft USB Cable - A to B | |
| 1 - Driver CD | |
| 1 - Instruction Manual | |
