StarTech USB867WAC22 USB 3.0 AC1200 Dual Band Wireless-AC Network Adapter - 802.11ac WiFi Adapter
SKU: BG09801
Model Name: USB867WAC22
Availability:
IN STOCK
Sale Price: $149.70 inc. GST
Quantity:

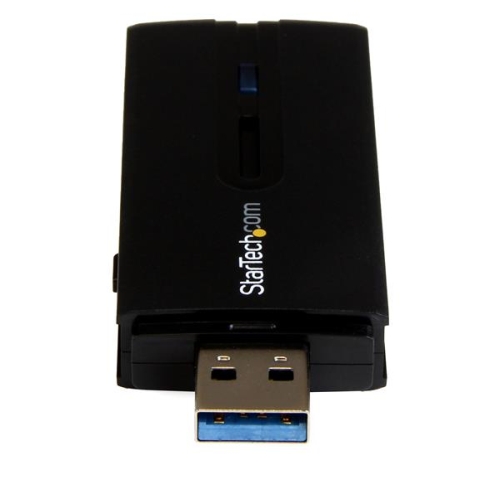

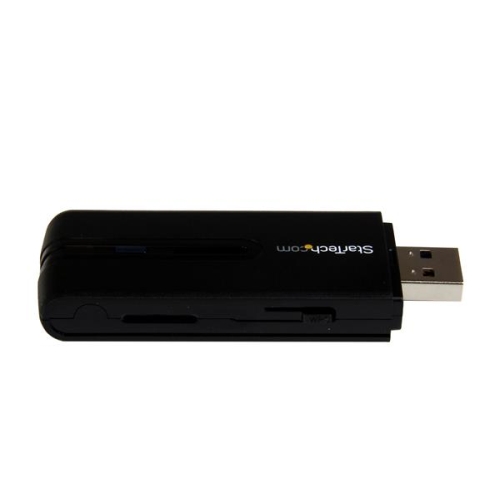

USB 3.0 AC1200 Dual Band Wireless-AC Network Adapter - 802.11ac WiFi Adapter

The USB867WAC22 USB 3.0 AC1200 Wireless Network Adapter lets you add Wireless-AC connectivity to a desktop or laptop computer through USB 3.0.

With network applications like streaming HD video, online conferencing, file transfers and gaming becoming more demanding, this Wireless-AC adapter gives you exceptional speed and range for your office or home wireless network when paired with an 802.11ac router. The dual band WiFi adapter supports maximum data rates of up to 867 Mbps on the 5GHz band (3x the speed of Wireless-N), plus up to 300 Mbps on the 2.4GHz band.

This versatile network card features a 2T2R (2 transmitter, 2 receiver) antenna design, with a physical WPS button for secure, one-touch device registration. To integrate with all of your networking devices, the adapter is also backward compatible with 802.11a/b/g/n networks.

Backed by a StarTech.com 2-year warranty, with free lifetime technical support.

The StarTech.com Advantage
  • Experience faster wireless speed and better coverage with 802.11ac compatibility
  • Ensure fast wireless with less interference through dual band 2.4 / 5 GHz operation
  • Connect to existing wireless networks with 802.11a/b/g/n backward compatibility
Features
  • Wireless AC1200 compatible (867 Mbps + 300 Mbps)
  • Compliant with 802.11 a/b/g/n/ac standards
  • USB 3.0 host interface
  • Dual band 2.4 / 5 GHz support (802.11ac is 5 GHz only)
  • 2 Transmitter/2 Receiver (2x2:2) antenna configuration
  • Supports WEP (64-128-bit), WPA and WPA2 wireless security
  • WPS hardware button
  • Supports WMM Quality of Service
  • Supports Soft AP mode
Warranty Information
Warranty 2 Years
Hardware
Antenna Configuration 2x2:2 (TxR:S)
Bus Type USB 3.0
Chipset ID Realtek - RTL8812AU
Industry Standards IEEE 802.11ac Draft 2.0, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b
Interface Wireless Ethernet
Performance
Frequency Range 2.400GHz ~ 2.484GHz
5.180GHz ~ 5.805GHz
Full Duplex Support Yes
Maximum Data Transfer Rate 867 Mbps (5 GHz)
300 Mbps (2.4 GHz)
Modulation DSSS with DBPSK and DQPSK, CCK with long and short preamble, OFDM with BPSK, QPSK, 16QAM and 64QAM, 256QAM
Security Features WEP Data Encryption
  WPA and WPA2-PSK Data Encryption
  TKIP/AES
  WPA and WPA2 Enterprise Data Encryption
Connector(s)
Connector Type(s) 1 - USB Type-A (9 pin) USB 3.0 Male
  1 - Wireless AC (IEEE 802.11ac)
Software
OS Compatibility Windows XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2016
Mac OS X 10.4 to 10.12
Linux kernel 3.2 to 3.5.0
Special Notes / Requirements
Note Soft AP mode supported in Windows XP - 8.1
System and Cable Requirements Available USB port
Environmental
Humidity 10~90% RH
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature 0°C to 70°C (32°F to 158°F)
Physical Characteristics
Color Black
Enclosure Type Plastic
Product Height 0.4 in [10 mm]
Product Length 3.1 in [80 mm]
Product Weight 0.6 oz [16 g]
Product Width 1.1 in [29 mm]
Packaging Information
Shipping (Package) Weight 3.8 oz [108 g]

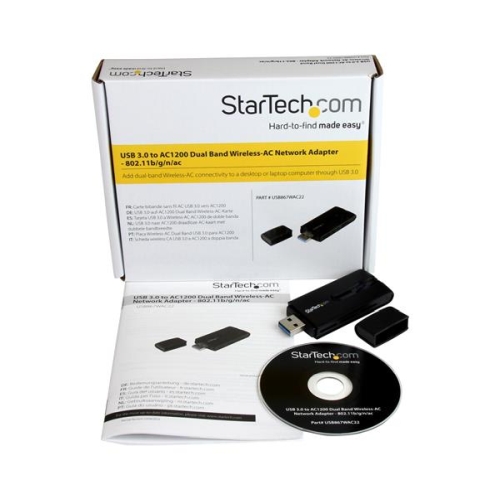

What's in the Box
Included in Package 1 - Driver CD
  1 - Instruction Manual
  1 - USB Wireless Adapter
