StarTech ST4300U3C3 4 Port USB 3.0 Hub plus 3 Dedicated USB Charging Ports (2 x 1A & 1 x 2A) - Wall Mountable Metal Enclosure
|
||||||||||||

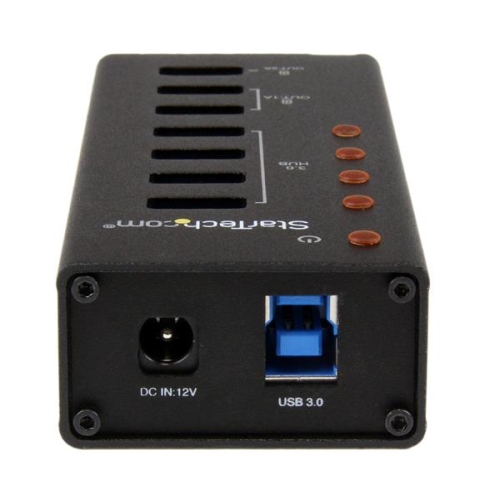

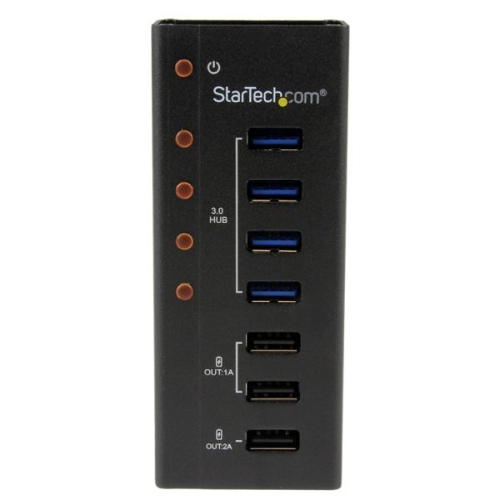

The ST4300U3C3 USB 3.0 Hub enables simultaneous data hub and USB charging functionality by adding three dedicated USB charge ports, as well as four USB 3.0 data ports, for a total of seven ports, all through a single USB 3.0 host connection.
The USB hub ports are compliant with the SuperSpeed USB 3.0 specification, offering data transfer rates up to 5 Gbps, and are backward compatible with USB 2.0 and 1.x specifications.
This externally powered USB hub also integrates 3 dedicated USB charging ports, providing 2 x 1A and 1 x 2A ports, enabling both data hub and USB charging station functionality. Support for USB Battery Charging Specification 1.2 lets you charge most mobile devices, including the Apple iPhone, iPad, Microsoft Surface™, Samsung Galaxy Tab™ and more.
Designed for easy access to the ports when connecting or disconnecting devices, the hub features an upright port orientation, in a compact and durable metal enclosure. For added flexibility, the hub includes a bracket for wall-mounted installations.
The StarTech.com Advantage| Warranty Information | |
|---|---|
| Warranty | 2 Years |
| Hardware | |
| Bus Type | USB 3.0 |
| Chipset ID | VLI - VL812 |
| Fast-Charge Port(s) | Yes |
| Industry Standards | USB Battery Charging Specification Rev. 1.2 |
| Ports | 7 |
| USB-C Device Port(s) | No |
| USB-C Host Connection | No |
| Performance | |
| Maximum Data Transfer Rate | 5 Gbps |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| Connector(s) | |
| Connector Type(s) | 1 - USB Type-B (9 pin) USB 3.0 Female |
| 3 - USB Type-A (4 pin) USB 2.0 Female | |
| 4 - USB Type-A (9 pin) USB 3.0 Female | |
| Software | |
| OS Compatibility | OS Independent; No additional drivers or software required |
| Special Notes / Requirements | |
| Note | If connected to a USB 2.0 host port, performance may be limited |
| System and Cable Requirements | Available USB 3.0 port |
| Indicators | |
| LED Indicators | 1 - Power |
| 4 - Hub Port Connection LEDs | |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 1.3 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 3 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 36 |
| Power Source | AC Adapter Included |
| Environmental | |
| Humidity | 20~80% RH |
| Operating Temperature | 5°C to 35°C (41°F to 95°F) |
| Storage Temperature | -20°C to 50°C (-4°F to 122°F) |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum |
| Form Factor | Desktop |
| Product Height | 0.9 in [24 mm] |
| Product Length | 4.3 in [110 mm] |
| Product Weight | 4.6 oz [131 g] |
| Product Width | 1.8 in [45 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 19.7 oz [558 g] |

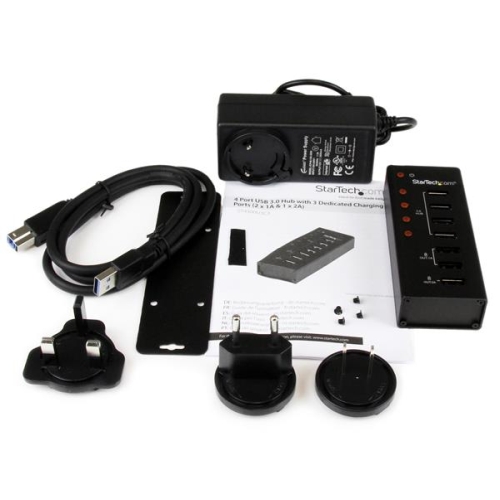

| What's in the Box | |
| Included in Package | 1 - USB Charging Hub |
| 1 - USB 3.0 Cable | |
| 1 - Wall Mount Bracket (w/ Screws) | |
| 4 - Rubber Feet | |
| 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand | |
| 1 - Instruction Manual | |
