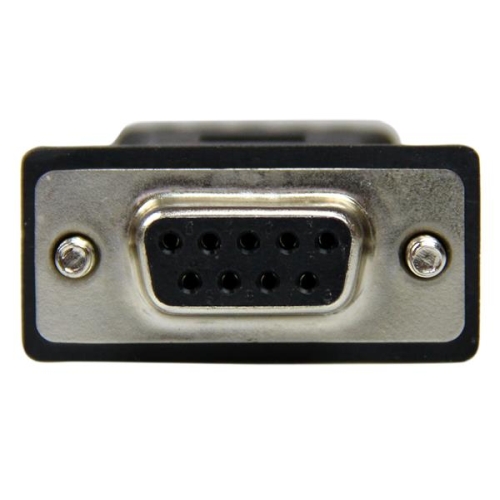

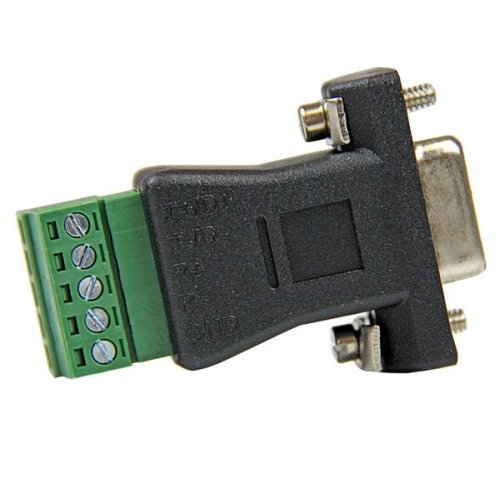

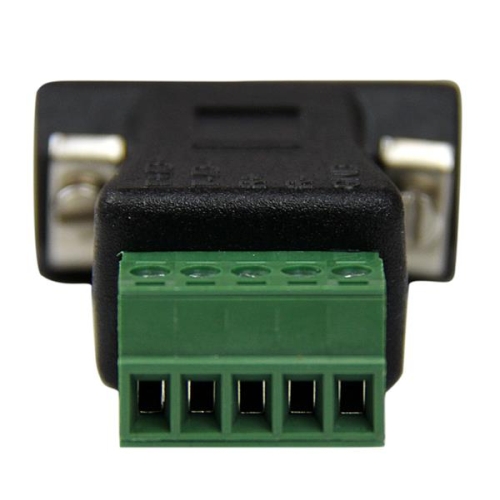

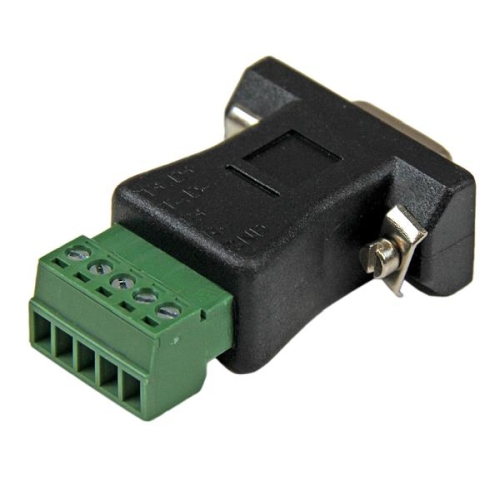

StarTech DB92422 RS422 RS485 Serial DB9 to Terminal Block Adapter
SKU: AA85667
Model Name: DB92422
Availability:
IN STOCK
Sale Price: $68.00 inc. GST
Quantity:

RS422 RS485 Serial DB9 to Terminal Block Adapter

The DB92422 DB 9 to Terminal Block adapter converts an RS-422 or RS-485 DB 9 male serial connector to a terminal block connector.

The 5-pin 3.5mm Terminal Block connector supports screw-type wiring to meet the standard for industrial wiring applications. Backed by Lifetime warranty.

Features
  • Converts a DB9 male RS422/485 port to a 5 pin terminal block
  • Supports four wire RS422, RS485, and two wire RS485 modes
  • Supports 3.5mm 5 pin terminal blocks
  • Signal Ground over Terminal blocks supported
  • Meets Screw-type industrial wireing standards
Warranty Information
Warranty 2 Years
Connector(s)
Connector Type(s) 1 - DB-9 (9 pin, D-Sub) Female
  1 - Terminal Block (5 Wire)
Environmental
Humidity 0~95% RH
Operating Temperature -40°C to 85°C (-40°F to 185°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Physical Characteristics
Color Black
Product Height 0.6 in [15.4 mm]
Product Length 1.9 in [48.9 mm]
Product Weight 0.7 oz [20 g]
Product Width 1.3 in [34.2 mm]
Packaging Information
Shipping (Package) Weight 0.1 lb [0.1 kg]
What's in the Box
Included in Package 1 - DB9 female to terminal block
