StarTech ICUSB232SM3 0.9m USB to RS232 DB9 Serial Adapter Cable - M/M
|
The ICUSB232SM3 3ft USB to Serial Adapter Cable lets you connect DB9 RS232 serial devices to your Mac or PC laptop or desktop computer through an available USB port, as though the computer offered an onboard DB9M connector.

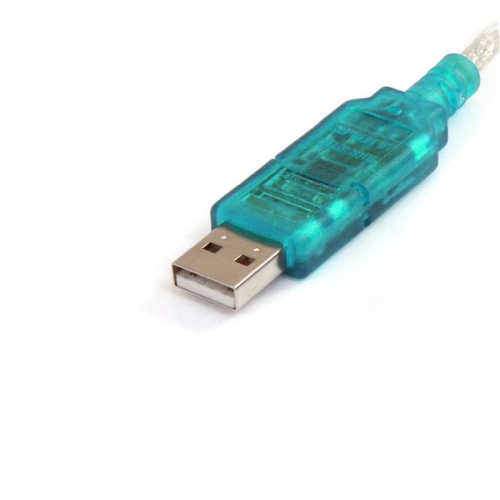

Unlike typical USB to serial converter cables where the conversion takes place at the DB9 end, the StarTech.com ICUSB232SM3 features a converter chip on the USB end. Converting at the USB source overcomes the 15ft. technical limit of USB cables, allowing for a much greater serial DB-9 extension cable (50ft.+ is possible depending on the application) if necessary.
Simple to install and use, this USB to Serial adapter is a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com AdvantageWarranty Information | |
---|---|
Warranty | Lifetime |
Hardware | |
Bus Type | USB 2.0 |
Chipset ID | Prolific - PL2303HXD |
Industry Standards | RS232, USB 1.1/2.0 |
Interface | Serial |
Port Style | Cable Adapters |
Ports | 1 |
Performance | |
FIFO | 192 Bytes |
Max Baud Rate | 921.6 Kbps |
Serial Protocol | RS-232 |
Connector(s) | |

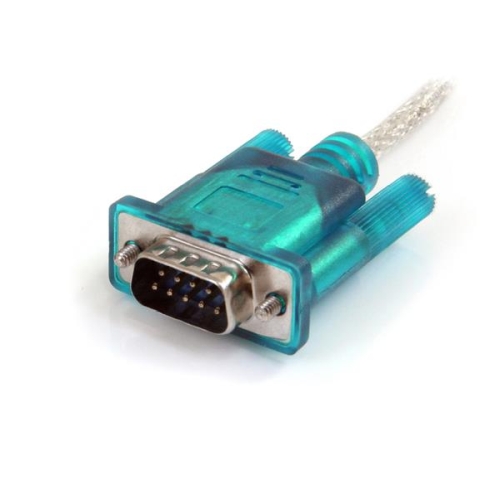

Connector Type(s) | 1 - DB-9 (9 pin, D-Sub) Male |
1 - USB Type-A (4 pin) USB 2.0 Male | |
Software | |
OS Compatibility | Windows CE 4.2, 5.2, 98SE, ME, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server 2003, 2008 R2, 2012, 2016 Mac OS 10.6 to 10.12 Linux 2.4.x to 4.11.x LTS Versions only |
Environmental | |
Humidity | 0~65% RH |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Storage Temperature | -20°C to 80°C (-4°F to 176°F) |
Physical Characteristics | |
Cable Length | 3 ft [0.9 m] |
Enclosure Type | Plastic |
Product Height | 0.6 in [15 mm] |
Product Length | 36 in [914 mm] |
Product Weight | 1.9 oz [54 g] |
Product Width | 1.4 in [35 mm] |
Packaging Information | |
Shipping (Package) Weight | 0.2 lb [0.1 kg] |
What's in the Box | |
Included in Package | 1 - USB to Serial Converter |
2 - Cable Nuts |
