StarTech ST7200USBM Mountable Rugged Industrial 7 Port USB Hub
SKU: AA84401
Model Name: ST7200USBM
Availability:
IN STOCK
Sale Price: $230.20 inc. GST
Quantity:

Mountable Rugged Industrial 7 Port USB Hub

This sturdy, industrial grade USB 2.0 hub can be wall mounted or installed onto a DIN rail for convenient access to its 7 female USB 2.0 ports, providing a work area, server room, or industrial environment with USB 2.0 connectivity.

With support for Hi-Speed USB 2.0 data transfer rates of up to 480 Mbps, this 7 port USB hub is backwards compatible with USB 1.1 specifications and can be powered through the host USB bus, or self powered using a three wire terminal block connector (7-24V).

The StarTech.com Advantage
  • A single USB host connection provides 7 additional USB ports with per port surge protection
  • Surface and DIN mounting options and terminal block power input to suit a wide range of industrial applications
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support
Features

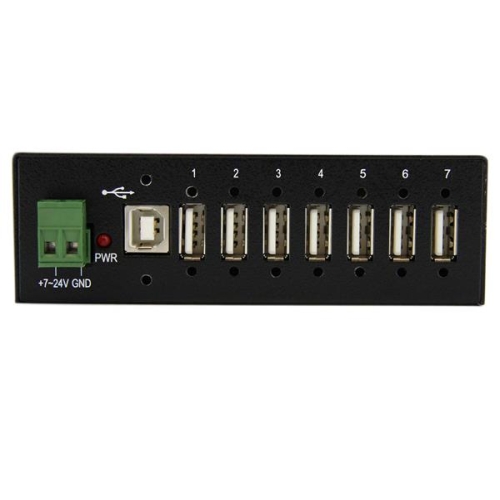

  • Provides 7 USB 2.0 ports
  • USB bus powered or external terminal block with support for 7 ~ 24VDC input
  • Compact and lightweight design with surface or DIN rail mounting options

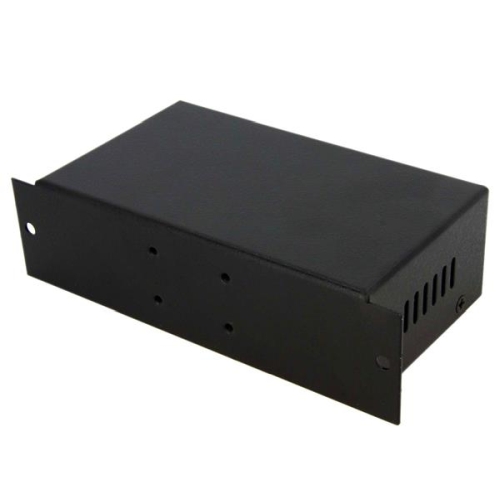

  • Industrial strength, all-metal enclosure
  • High Speed USB 2.0 compliant, with transfer rates up to 480 Mbps
  • 15KV ESD protection
  • Plug-and-Play and Hot-Swap compatible
  • Includes a 2 meter screw-locking USB cable
Warranty Information
Warranty 2 Years
Hardware
Chipset ID Terminus - FE2.1
Industry Standards USB 2.0
Interface USB 2.0
Ports 7
Performance
Maximum Data Transfer Rate Up to 480Mbps
MTBF 170,227 Hours
Surge Protection 15KV ESD protection
Connector(s)
External Ports 1 - Terminal Block (2 Wire)
  1 - USB B (4 pin) Female
  7 - USB Type-A (4 pin) USB 2.0 Female
Software
OS Compatibility OS independent; No software or drivers required
Special Notes / Requirements
System and Cable Requirements Any computer with a USB 2.0 port
Indicators
LED Indicators 1 - Power
Power
Input Voltage 7 ~ 24 DC
Power Source Terminal Block
Environmental
Humidity 5~95% RH
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Physical Characteristics
Color Black
Enclosure Type Steel
Product Height 1.4 in [36.3 mm]
Product Length 5.2 in [133 mm]
Product Weight 17.6 oz [500 g]
Product Width 2.4 in [61.5 mm]
Packaging Information
Shipping (Package) Weight 1.1 lb [0.5 kg]

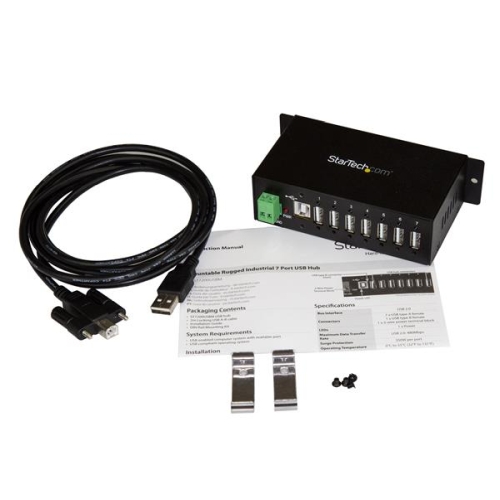

What's in the Box
Included in Package 1 - USB 2.0 Hub
  2 - DIN rail mounting bracket
  1 - USB-B w/screw lock to USB-A cable
  1 - Screw kit
  1 - Instruction Manual
