StarTech USB2AAEXT20M 20m USB 2.0 Active Extension Cable - M/F
SKU: AA84202
Model Name: USB2AAEXT20M
Availability:
IN STOCK
Sale Price: $204.10 inc. GST
Quantity:

20m USB 2.0 Active Extension Cable - M/F

The USB2AAEXT20M 20m Active USB 2.0 Extension Cable offers one USB-A male connector and one USB-A female connector, and provides an active extension of USB 2.0 devices of up to 20-meters (66-feet).

An all-in-one cable for overcoming distance restrictions as well as power source limitations, the active USB 2.0 extension cable incorporates bus-powered active circuitry to ensure performance beyond the length limits of standard USB cables. Plus you can daisy chain 2 cables for a total USB extension of up to 40-meters.

If necessary, the USB device can be powered from a wall outlet using the Universal AC power adapter (provided with the cable).

The USB2AAEXT20M repeater cable supports the full USB 2.0 bandwidth of 480 Mbps, and is backed by StarTech.com's 2-year Warranty.

The StarTech.com Advantage
  • No USB signal loss, even at a distance of up to 66 feet (20 meters)
  • Power your USB devices directly from the USB port or through the included universal external power adapter
  • Daisy chain 2 cables together for reaching connection distances of up to 40-meters between your USB 2.0 devices
Features
  • USB bus-powered
  • Universal external power source also included
  • Blue LED indicator x1 for Extension Cable and USB port connection status monitoring
  • Fully shielded for error-free connections
  • Plug-and-play, no driver required
  • Compatible with PC Windows 8/7/Vista/XP and Mac computer systems
Technical Specifications:
Warranty Information
Warranty 2 Years
Physical Characteristics
Cable Length 65.6 ft [20 m]
Color Black
Product Length 65.6 ft [20 m]
Product Weight 30.6 oz [866 g]
Hardware
Cable Jacket Type PVC - Polyvinyl Chloride
Connector Plating Nickel
Connector(s)

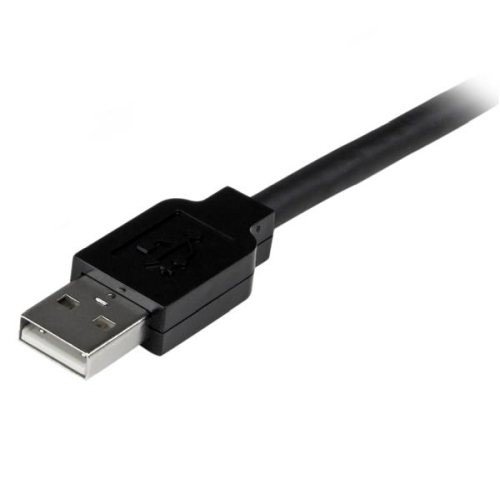

Connector A 1 - USB A (4 pin) Male

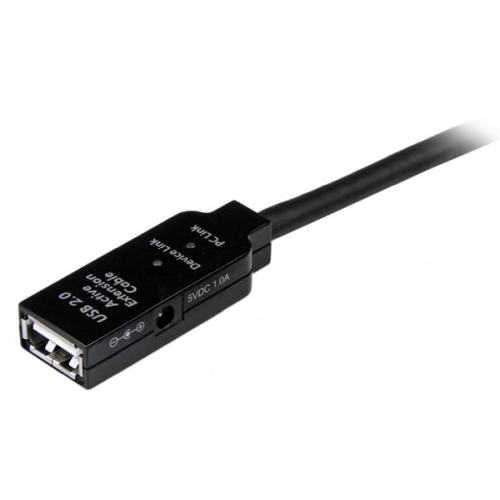

Connector B 1 - USB A (4 pin) Female
Special Notes / Requirements
Note Cascade two USB2AAEXT20M devices together for further extension
Power
Center Tip Polarity Positive
Input Current 0.35 A
Input Voltage 110 ~ 240 AC
Output Current 1A
Output Voltage 5 DC
Plug Type H
Power Source AC Adapter Included
Packaging Information
Package Quantity 1
Shipping (Package) Weight 2.2 lb [1 kg]
What's in the Box

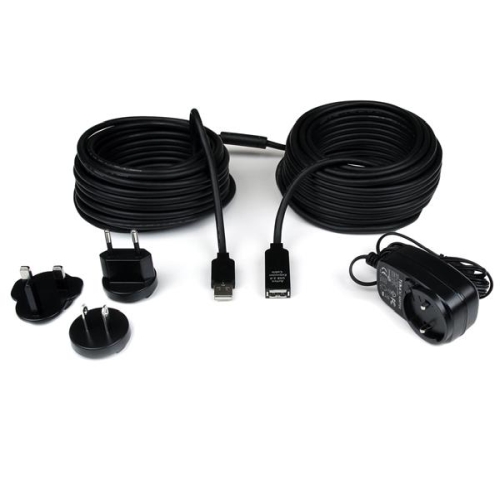

Included in Package 1 - 20 m USB 2.0 Active Extension Cable - M/F
  1 - Universal Power Adapter
