StarTech ICUSB2324I 4 Port USB to DB9 RS232 Serial Adapter Hub – Industrial DIN Rail and Wall Mountable
SKU: AA84115
Model Name: ICUSB2324I
Availability:
IN STOCK
Sale Price: $252.80 inc. GST
Quantity:

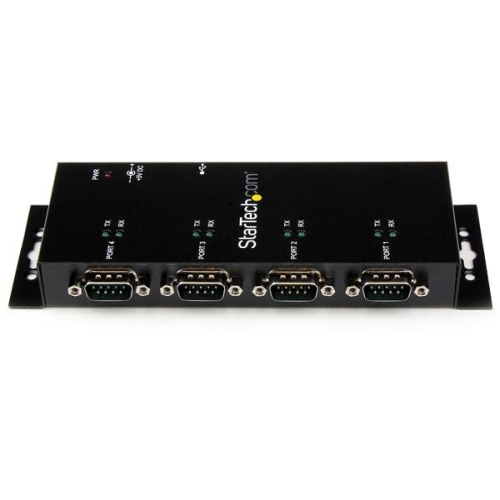

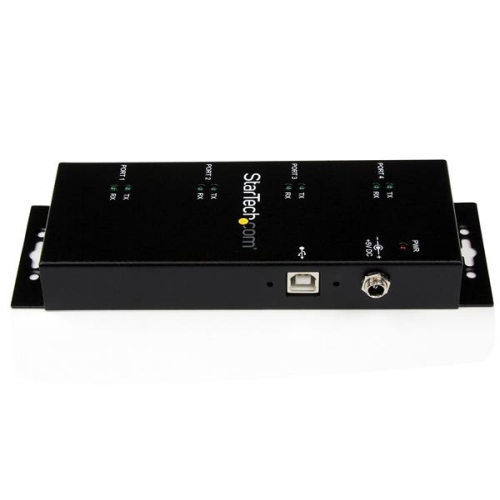

4 Port USB to DB9 RS232 Serial Adapter Hub – Industrial DIN Rail and Wall Mountable

The ICUSB2324I 4-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into four RS232 serial ports, enabling you to connect to, monitor and control your serial devices.

Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.

This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.

The StarTech.com Advantage
  • Integrated wallmount brackets and included DIN Rail clips for versatile mounting options
  • Rugged all-metal enclosure for added durability in harsh environments
  • Easy plug and play installation, with our USB Powered adapter - no power outlet required
Features
  • USB to 4-Port Straight-Through RS232 Serial Adapter
  • Rugged metal construction
  • Wall-mountable, with included DIN Rail clips
  • COM retention: COM Port assignments maintained across reboot
  • Baud Rate up to 921.6 Kbps
  • Powered by an available USB port - no external power adapter required
Warranty Information
Warranty 2 Years
Hardware
Bus Type USB 2.0
Chipset ID FTDI - FT4232HL
Interface Serial
Port Style External Hub
Ports 4
Performance
Data Bits 7, 8
FIFO 256 Bytes
Max Baud Rate 921.6 Kbps
Maximum Data Transfer Rate 921.6Kbps
MTBF 282713.5 hours
Parity Odd, Even, Mark, Space, None
Serial Protocol RS-232
Stop Bits 1, 2
Connector(s)
Connector Type(s) 1 - USB B (4 pin) Female
  4 - DB-9 (9 pin, D-Sub) Male
Software
OS Compatibility Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS 10.6 to 10.13
Linux 2.4.x to 4.11.x LTS Versions only
Indicators
LED Indicators 4 - Each, Tx/Rx Activity indicators
Power
Plug Type M
Power Source USB-Powered
Environmental
Humidity 5~95% RH
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Physical Characteristics
Color Black
Enclosure Type Steel
Product Height 1 in [26 mm]
Product Length 5.9 in [150 mm]
Product Weight 15.9 oz [450 g]
Product Width 2.6 in [66.5 mm]
Packaging Information
Shipping (Package) Weight 1.1 lb [0.5 kg]
What's in the Box
Included in Package 1 - USB to RS-232 Serial Adapter
  1 - DIN rail kit
  1 - 6 ft USB A to B cable
  1 - Driver CD
  1 - Instruction Manual
