StarTech ICUSB2324X 4 Port Wall Mountable USB to Serial Adapter Hub
SKU: AA84084
Model Name: ICUSB2324X
Availability:
IN STOCK
Sale Price: $241.20 inc. GST
Quantity:

4 Port Wall Mountable USB to Serial Adapter Hub with COM Retention

The ICUSB2324X 4 Port Professional Grade USB Serial Adapter converts a single USB port to four RS232 serial ports allowing you to connect to, monitor and control your serial devices. Rugged metal construction and sturdy wall-mount brackets provide a robust solution for both harsh industrial environments and simple desktop installations.

Powered by USB, the device does not require a power outlet for most standard applications. For installations requiring power through the RS232 ports, optional DC connector and terminal block connections are included. Once connected, the adapter retains assigned serial COM port values, allowing the same values to automatically be re-assigned to the ports provided by the adapter in the event it is disconnected, then re-connected to the host computer.

This innovative Serial adapter offers a professional grade solution for connecting legacy or industrial RS232 serial devices to more modern computers, or computers with unused USB ports – perfect for connecting serial modems, barcode scanners or any device with serial sync through USB, eliminating the expense of upgrading serial peripherals for USB compatibility.

The StarTech.com Advantage
  • Multiple ports with COM port retention give you hassle-free control of several serial devices without having to remember where each one was last connected
  • Rugged all-metal enclosure for added durability in harsh environments
  • Easy plug and play installation with our USB Powered adapter - no power outlet required
Features
  • USB to 4 Port Straight-Through RS232 Serial Adapter
  • Rugged metal construction
  • Wall-mountable
  • COM port settings are retained for serial devices plugged into different USB ports and across reboot
  • Baud Rate up to 230 Kbps
  • Powered by an available USB port - no external power adapter required

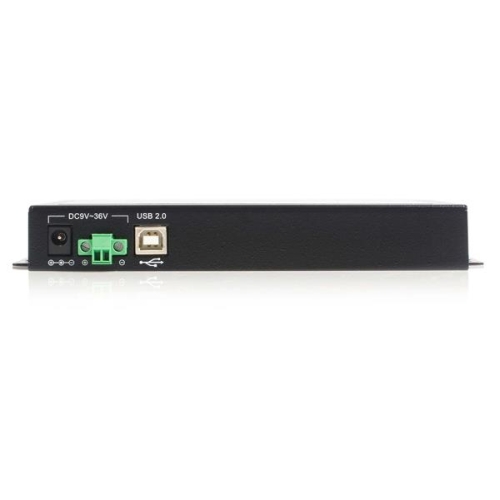

  • Optional DC jack or terminal block power connections
  • Designed to make serial port expansion quick and easy
  • Provides dual buffers for upstream and downstream data transfer
  • Supports automatic handshake mode
  • Enables and disables enumerations
Warranty Information
Warranty 2 Years
Hardware
Bus Type USB 2.0
Chipset ID Texas Instruments - TIUSB3410
Interface Serial
Port Style External Hub
Ports 4
Performance
FIFO 32 Bytes
Max Baud Rate 230.4 Kbps
Serial Protocol RS-232
Connector(s)
Connector Type(s) 1 - USB B (4 pin) Female

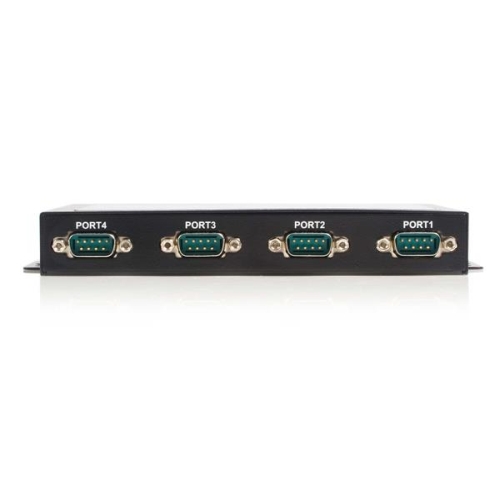

External Ports 4 - DB-9 (9 pin, D-Sub) Male
Software
OS Compatibility Windows XP, Vista, 7, 8
Windows Server 2003, 2008 R2, 2012, 2016
Special Notes / Requirements
System and Cable Requirements 1 USB 1.1 (or above) port
Power
Input Current 600mA minimum
Input Voltage 9 ~ 36 DC
Plug Type N
Power Source Not Included (not required for standard applications)
Environmental
Humidity 5~85% RH
Operating Temperature -10°C to 80°C (14°F to 176°F)
Storage Temperature -20°C to 100°C (-4°F to 212°F)
Physical Characteristics
Color Black
Enclosure Type Steel
Product Height 1 in [25 mm]
Product Length 6.5 in [165.2 mm]
Product Weight 20.9 oz [593 g]
Product Width 4.6 in [118 mm]
Packaging Information
Shipping (Package) Weight 1.8 lb [0.8 kg]

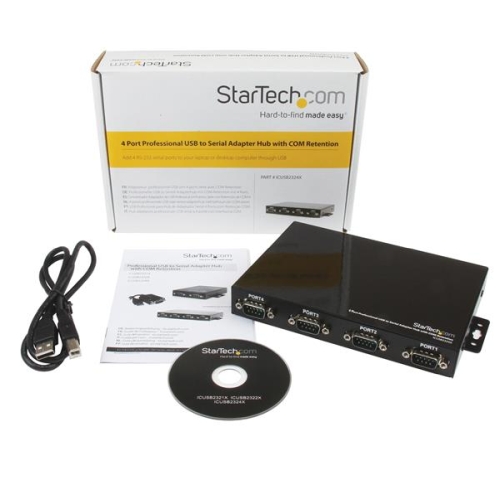

What's in the Box
Included in Package 1 - USB to RS-232 Serial Adapter
  1 - 3ft USB A to B cable
  1 - Driver CD
  1 - Instruction Manual
