StarTech ICUSB2321X 1Port Pro USB to Serial Adapter w/COM Retention
SKU: AA83387
Model Name: ICUSB2321X
Availability:
IN STOCK
Sale Price: $107.40 inc. GST
Quantity:

1 Port Professional USB to Serial Adapter Cable with COM Retention

The ICUSB2321X Professional grade USB Serial Adapter cable converts a USB 2.0 port into an RS232 serial port allowing you to connect to, monitor and control your serial devices. A durable, single cable design makes this the perfect solution for mobile technicians/administrators that require serial connectivity. Once connected, the USB to serial adapter retains assigned serial COM port values, allowing the same values to automatically be re-assigned to the port provided by the adapter in the event it is disconnected, then re-connected to the host computer.

This innovative adapter offers a professional grade solution for connecting legacy or industrial RS232 serial devices to more modern computers, or computers with unused USB ports – perfect for connecting serial modems, barcode scanners or any device with serial sync through USB, eliminating the expense of upgrading the serial peripheral for USB compatibility.

The StarTech.com Advantage
  • Simple installation and operation with COM port retention provides robust serial connectivity for legacy devices with minimal hassle
  • Easy plug and play installation with USB Powered device - no power outlet required
  • Extensive list of compatible operating systems makes this device perfect for almost any RS232 application
Features
  • USB to Straight-Through RS232 Serial Adapter
  • COM Port assignments maintained across reboot
  • Single cable design for portability
  • Baud Rate up to 230 Kbps
  • Powered by an available USB port - no external power adapter required
  • Designed to make serial port expansion quick and easy
  • Provides dual buffers for upstream and downstream data transfer
  • Supports automatic handshake mode
  • Enables and disables enumerations
Warranty Information
Warranty 2 Years
Hardware
Bus Type USB 2.0
Chipset ID Texas Instruments - TIUSB3410
Interface Serial
Port Style Cable Adapters
Ports 1
Performance
FIFO 32 Bytes
Max Baud Rate 230.4 Kbps
Serial Protocol RS-232
Connector(s)

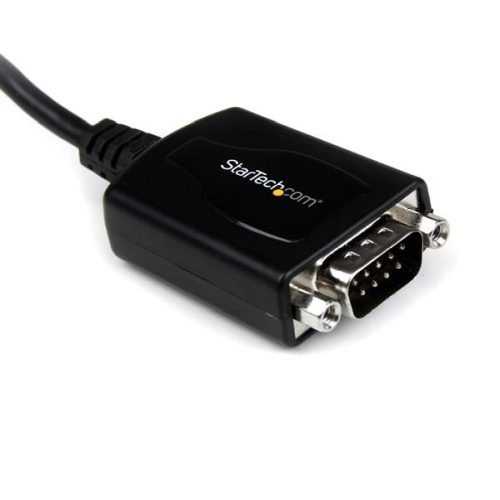

Connector Type(s) 1 - DB-9 (9 pin, D-Sub) Male

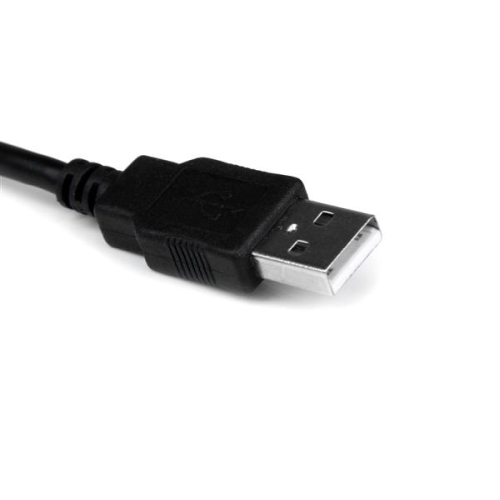

  1 - USB Type-A (4 pin) USB 2.0 Male
Software
OS Compatibility Windows XP, Vista, 7, 8
Windows Server 2003, 2008 R2, 2012, 2016
Special Notes / Requirements
System and Cable Requirements One available USB 1.1 (or above) port
Environmental
Humidity 5~85% RH
Operating Temperature -10°C to 80°C (14°F to 176°F)
Storage Temperature -20°C to 100°C (-4°F to 212°F)
Physical Characteristics
Cable Length 1 ft [0.3 m]
Color Black
Enclosure Type Plastic
Product Height 0.5 in [13 mm]
Product Length 16.5 in [420 mm]
Product Weight 1.2 oz [33.4 g]
Product Width 1.4 in [35 mm]
Packaging Information
Shipping (Package) Weight 0.3 lb [0.1 kg]

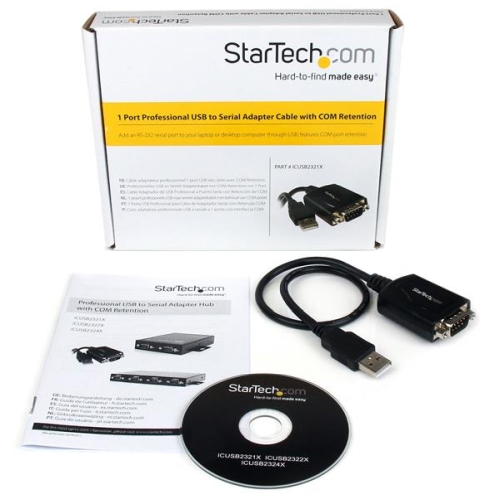

What's in the Box
Included in Package 1 - USB to Serial Adapter
  1 - Driver CD
  1 - Instruction Manual
