StarTech ICUSB2322F 2 Port FTDI USB to Serial RS232 Adapter Cable wCOM Retention
SKU: AA83356
Model Name: ICUSB2322F
Availability:
IN STOCK
Sale Price: $153.00 inc. GST
Quantity:

2 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention

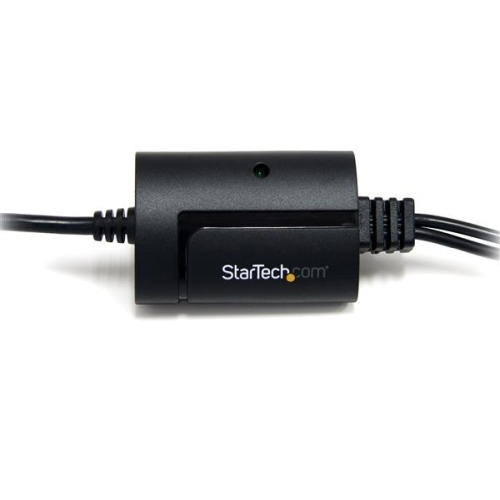

The ICUSB2322F 2-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into 2 RS232 serial DB9 ports to connect, monitor and control your serial devices.

This compact adapter features COM retention, allowing the same COM port values to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. Unlike most USB-serial adapters, this one uses the FTDI chipset, which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.

This USB-serial adapter is compatible with a broad list of Operating Systems, including Windows, Windows CE, Mac OS and Linux, making this product the perfect solution for integrating into mixed environments.

The StarTech.com Advantage
  • Simple installation and operation with COM port retention provides robust connectivity for serial devices
  • Portable USB-Powered design requires no bulky power adapter or outlet
  • The FTDI chipset is highly customizable and compatible, making it the ideal solution for any setup
Features
  • Single cable design for portability
  • Wall mountable design
  • Integrated FTDI USB UART Chip
  • COM Port assignments maintained across reboot
  • Compatible with Windows, Mac OS and Linux
  • Baud Rate up to 921.6 Kbps
  • Powered by the USB port - no external power adapter required
  • Designed to make serial port expansion quick and easy
  • 6-foot cable length for connecting to devices without having to be too close
Warranty Information
Warranty 2 Years
Hardware
Bus Type USB 2.0
Chipset ID FTDI - FT2232D
Interface Serial
Port Style Cable Adapters
Ports 2
Performance
Data Bits 7, 8
FIFO 128 Bytes
Max Baud Rate 921.6 Kbps
Parity None, Odd, Even, Mark, Space
Serial Protocol RS-232
Stop Bits 1, 2
Connector(s)

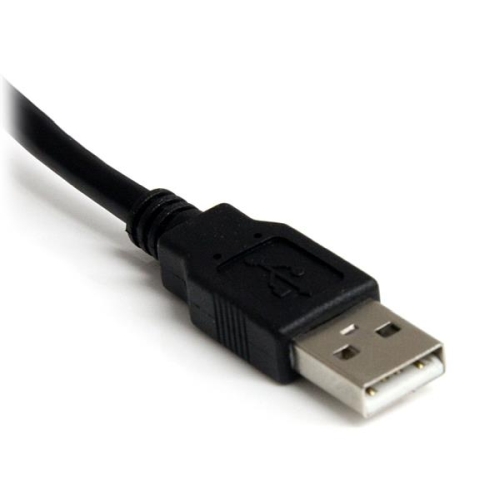

Connector Type(s) 1 - USB Type-A (4 pin) USB 2.0 Male

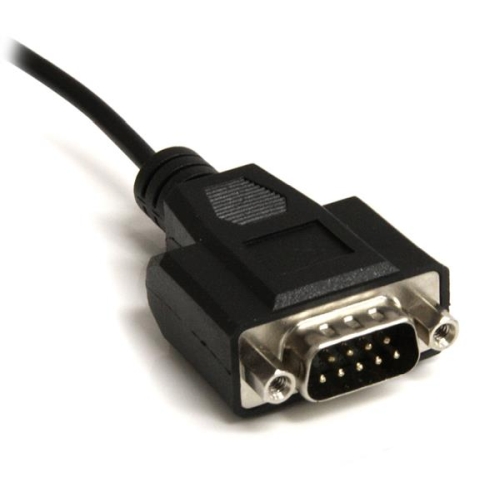

  2 - DB-9 (9 pin, D-Sub) Male
Software
OS Compatibility Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS 10.6 to 10.12
Linux 2.4.x to 4.4.x LTS Versions only
Special Notes / Requirements
System and Cable Requirements One available USB 1.1 (or better) port
Power
Power Source USB-Powered
Environmental
Humidity 5~95% RH
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Physical Characteristics
Cable Length 6 ft [1.8 m]
Color Black
Enclosure Type Plastic
Product Height 0.8 in [20 mm]
Product Length 84 in [2133 mm]
Product Weight 5.6 oz [159 g]
Product Width 1.8 in [45 mm]
Packaging Information
Shipping (Package) Weight 0.5 lb [0.2 kg]
What's in the Box
Included in Package 1 - 2 Port USB to RS-232 Serial Adapter
  1 - Wall Mounting Kit
  1 - Driver CD
  1 - Instruction Manual
