StarTech ICUSB422 1.8m Professional RS422/485 USB Serial Cable Adapter w/COM Ret
SKU: AA83354
Model Name: ICUSB422
Availability:
IN STOCK
Sale Price: $163.20 inc. GST
Quantity:

1.8 m Professional RS422/485 USB Serial Cable Adapter w/ COM Retention

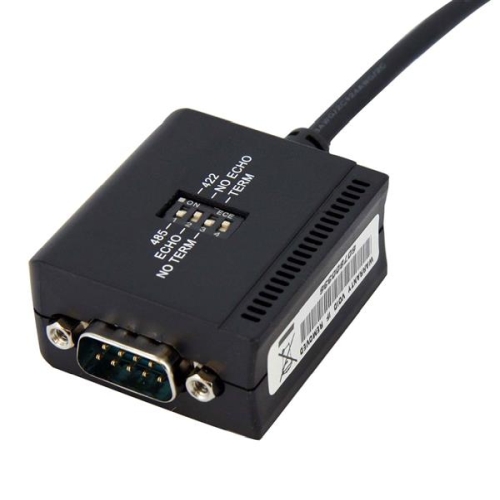

The ICUSB422 6ft Professional RS422/485 USB Serial Cable Adapter with COM Port Retention lets you connect RS422 or RS485 serial devices to your USB-enabled computer. The adapter features a 9-pin (DB9) male serial connector as well as dipswitch controls for easy port configuration, and requires minimal software.

The serial adapter is USB-powered, eliminating the aggravation of requiring an external power adapter. With COM port retention, assigned port settings are saved, so you can disconnect and reconnect the adapter with virtually no configuration required on the host computer.

The ICUSB422 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
  • USB Powered - no power outlet required, and no cumbersome AC adapter to carry around
  • Supports high speed RS-422/RS-485 communication up to 921.6kbps; 400% faster than most USB to RS-232 adapters
  • COM retention saves the assigned port settings for the device, so disconnecting/reconnecting is hassle-free
Features
  • USB to Straight-Through RS422/485 Serial Adapter
  • Supported baud rates from 300bps to 921.6 Kbps
  • Being able to rename devices no matter how many are plugged in
  • Supports COM Port retention
  • Configurable port for RS422 or RS485 support
  • Supports RS-485 Auto Transceiver Turn Around by Unique Featured ATTA Hardware
  • Backwards compatible with USB 1.1
  • Integrated adapter and cable eliminates the need for additional cables
  • Two interface modes; 4 wire RS422(TxD+/-, RxD+/-), and 2 wire RS485 (DATA+, DATA-)

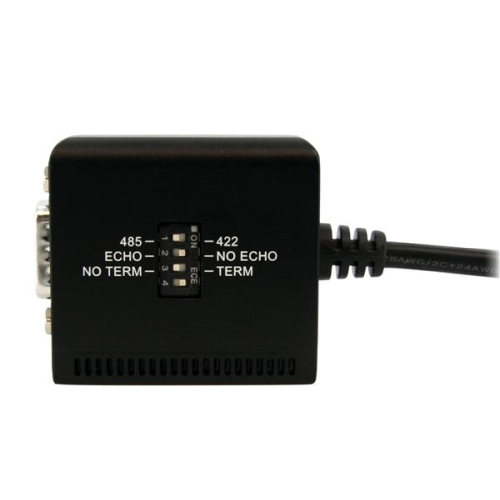

  • 120 OHM terminator that can be Enabled/Disabled by DIP switch
  • Transmission Echo for RS485 collision detection
Warranty Information
Warranty 2 Years
Hardware
Bus Type USB 2.0
Chipset ID FTDI - FT232RL
Interface Serial
Port Style Cable Adapters
Ports 1
Performance
Data Bits 7, 8
FIFO 256 Bytes
Max Baud Rate 921.6 Kbps
Parity Even, Odd, None
Serial Protocol RS-422/485
Stop Bits 1, 2
Connector(s)

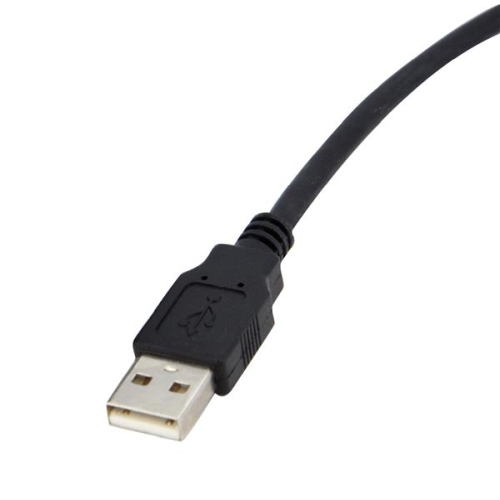

Connector Type(s) 1 - USB Type-A (4 pin) USB 2.0 Male

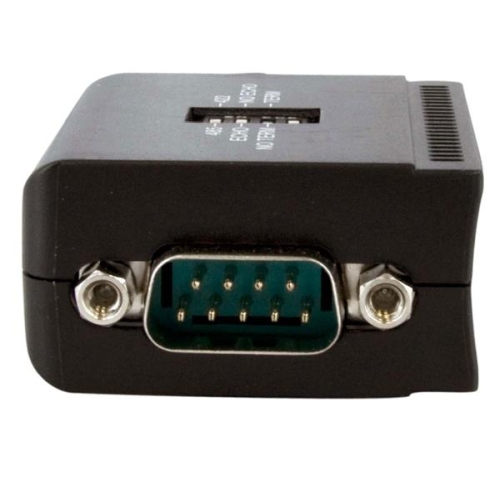

External Ports 1 - DB-9 (9 pin, D-Sub) Male
Software
Microsoft WHQL Certified Yes
OS Compatibility Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS 10.6 to 10.12
Linux 2.4.x to 4.11.x LTS Versions only
Environmental
Humidity 5~95% RH
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Physical Characteristics
Cable Length 6 ft [1.8 m]
Color Black
Enclosure Type Plastic
Product Height 0.9 in [22.1 mm]
Product Length 1.8 in [45 mm]
Product Weight 3.5 oz [100 g]
Product Width 1.6 in [41.5 mm]
Packaging Information
Shipping (Package) Weight 0.5 lb [0.2 kg]
What's in the Box

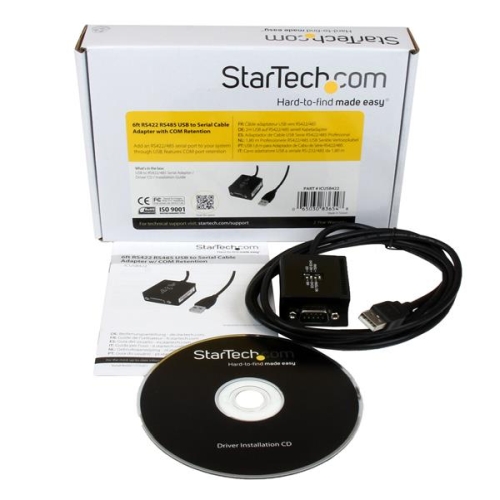

Included in Package 1 - USB to RS422/485 Serial Adapter
  1 - Driver CD
  1 - Installation Guide
