StarTech.com ICUSB2321FIS 1 Port FTDI USB to Serial RS232 Adapter Cable
SKU: AA83282
Model Name: ICUSB2321FIS
Availability:
IN STOCK
Sale Price: $254.00 inc. GST
Quantity:

1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention

The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices.

This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.

Compatibility with a broad list of Operating Systems including Windows, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.

The StarTech.com Advantage
  • The FTDI chipset is highly customizable and compatible, making it the ideal solution for any setup
  • Portable USB-Powered design requires no bulky power adapter or outlet
  • Simple installation and operation with COM port retention provides robust serial connectivity for legacy devices
Features
  • Integrated FTDI USB UART Chip
  • Baud Rate up to 115.2Kbps
  • COM Port assignments maintained across reboot
  • Powered by the USB port - no external power adapter required
  • Single cable design for portability
  • Designed to make serial port expansion quick and easy
  • Compatible with Windows, Mac OS and Linux
  • 6-foot cable length for connecting to devices without having to be too close
  • USB to Straight-Through RS232 Serial Adapter
Warranty Information
Warranty 2 Years
Hardware
Bus Type USB 2.0
Chipset ID FTDI - FT232RL
Interface Serial
Port Style Cable Adapters
Ports 1
Performance
Data Bits 7, 8
FIFO 256 Bytes
Max Baud Rate 115.2 Kbps
MTBF 836981.2 hours
Parity None, Odd, Even, Mark, Space
Serial Protocol RS-232
Stop Bits 1, 2
Connector(s)

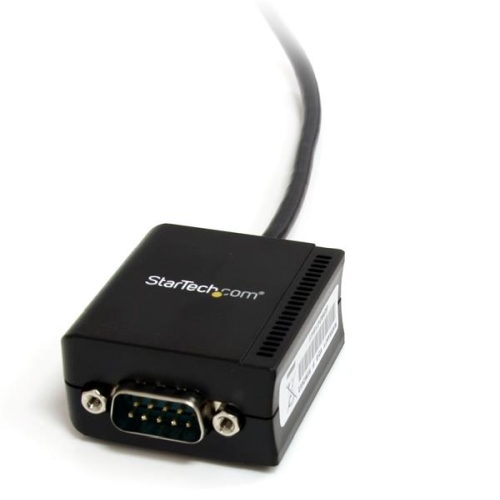

Connector Type(s) 1 - DB-9 (9 pin, D-Sub) Male

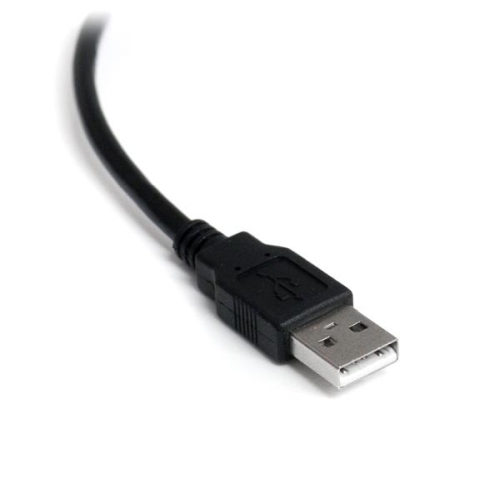

  1 - USB Type-A (4 pin) USB 2.0 Male
Software
OS Compatibility Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS 10.6 to 10.12
Linux 2.4.x to 4.4.x LTS Versions only
Special Notes / Requirements
System and Cable Requirements One available USB 1.1 (or better) port
Power
Power Source USB-Powered
Environmental
Humidity 5~95% RH
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Physical Characteristics
Cable Length 6 ft [1.8 m]
Color Black
Enclosure Type Plastic
Product Height 0.9 in [22 mm]
Product Length 1.8 in [45 mm]
Product Weight 7.1 oz [200 g]
Product Width 1.6 in [41.5 mm]
Packaging Information
Shipping (Package) Weight 0.5 lb [0.2 kg]

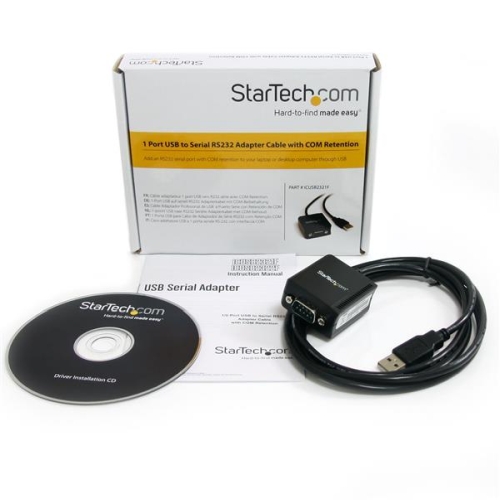

What's in the Box
Included in Package 1 - USB to RS-232 Serial Adapter
  1 - Driver CD
  1 - Instruction Manual
