StarTech ICUSB2324 4 Port USB to RS232 Serial DB9 Adapter Hub
SKU: 4716086
Model Name: ICUSB2324
Availability:
IN STOCK
Sale Price: $228.10 inc. GST
Quantity:

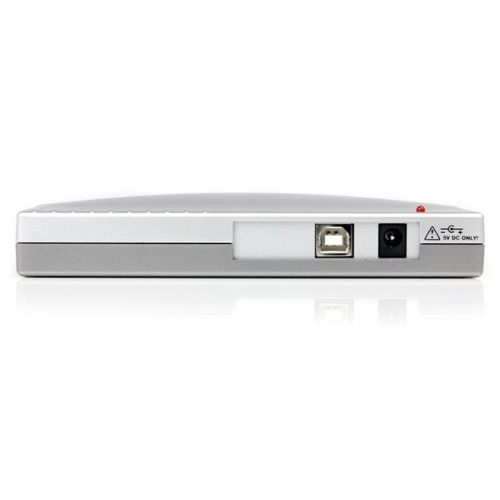

4 Port USB to RS232 Serial DB9 Adapter Hub

This 4 Port USB to RS232 Serial Hub lets you connect up to four RS232 serial devices to your Mac or PC laptop or desktop computer through a single USB port, as though the computer offered built-on DB9M serial connectors.

The RS232 Serial Hub is compactly designed to preserve valuable workspace, and is bus-powered to eliminate the need for an external power adapter.

A cost-effective solution that bridges the compatibility gap between modern USB-capable computers and legacy RS232 serial peripherals, this dependable USB/RS232 Serial Adapter hub is backed by StarTech.com's Lifetime Warranty.

The StarTech.com Advantage
  • Add four additional RS-232 serial ports to any computer with a free USB port
  • Provides serial connectivity to legacy free systems lacking RS-232 serial ports
  • Supports wakeup and power management modes
Features
  • Bus powered, no external power adapter required
  • Easy Plug-and-Play installation
  • Fully compliant with USB 1.1 specifications and compatible with USB 2.0

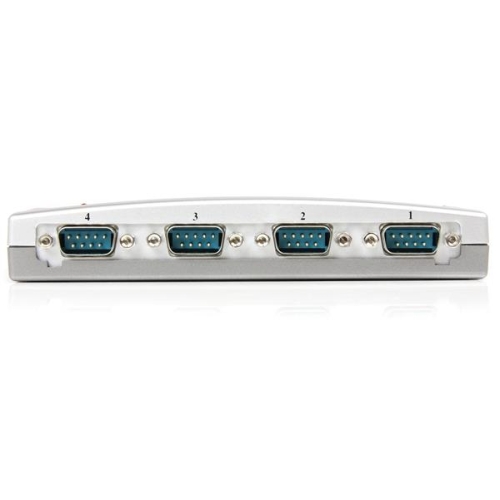

  • Provides you with four additional Straight-Through RS232 serial ports
Warranty Information
Warranty Lifetime
Hardware
Bus Type USB 2.0
Chipset ID FTDI - FT232RL
Industry Standards RS232
  USB 1.1
Interface Serial
Port Style External Hub
Ports 4
Performance
FIFO 256 Bytes
Max Baud Rate 921.6 Kbps
Serial Protocol RS-232
Connector(s)
Connector Type(s) 1 - USB Type-A (4 pin) USB 2.0 Male
External Ports 4 - DB-9 (9 pin, D-Sub) Male
Software
OS Compatibility Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS 10.6 to 10.12
Linux 2.4.x to 4.11.x LTS Versions only
Special Notes / Requirements
System and Cable Requirements One free USB port
Power
Power Consumption (In Watts) 1 ~ 1.5W
Environmental
Humidity 5~95% RH
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20 to 85°C (-4 to 185°F)
Physical Characteristics
Cable Length 6 ft [1.8 m]
Enclosure Type Plastic
Product Height 1 in [26 mm]
Product Length 5.9 in [150 mm]
Product Weight 3.9 oz [110 g]
Product Width 2.6 in [66.5 mm]
Packaging Information
Shipping (Package) Weight 0.8 lb [0.4 kg]

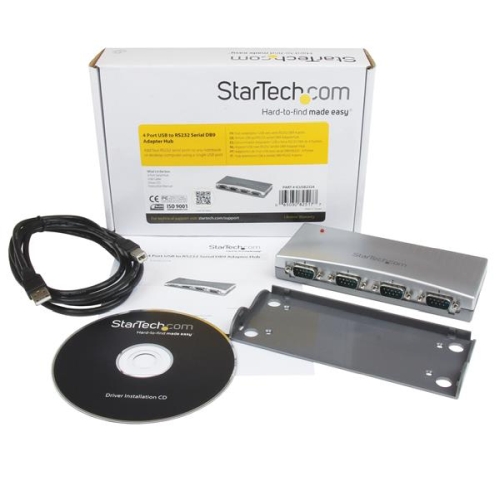

What's in the Box
Included in Package 1 - 4 Port Serial Hub
  1 - USB Cable
  1 - Driver CD
  1 - Instruction Manual
