StarTech ICUSB232PRO 0.3m USB to RS232 Serial DB9 Adapter Cable w/ COM Retention
SKU: 4151770
Model Name: ICUSB232PRO
Availability:
IN STOCK
Sale Price: $89.80 inc. GST
Quantity:

0.3 m USB to RS232 Serial DB9 Adapter Cable with COM Retention

The ICUSB232PRO 1 ft USB to RS232 Serial DB9 Adapter Cable with COM Retention offers a professional grade solution for connecting legacy or industrial RS232 serial devices to a laptop or desktop computer through USB - eliminating the expense of upgrading serial peripherals for compatibility.

A time-saving and convenient USB/Serial solution, the adapter retains assigned serial COM port values in nonvolatile memory, allowing the same values to automatically be assigned to the adapter serial port if disconnected and reconnected, or disconnected from one USB port and installed in another.

A versatile connectivity solution that bridges legacy serial peripheral devices with newer USB-capable computers, the USB to Serial adapter offers broad operating system compatibility including Windows, Linux and Mac OS, for easy integration into mixed environments.

The StarTech.com Advantage
  • COM port settings are retained for serial devices plugged into different USB ports saving time
  • Easy plug and play installation with our USB Powered adapter - no power outlet required
Features
  • USB to Straight-Through RS232 Serial Adapter
  • Supports data transfer rates of up to 920kpbs
  • COM Port assignments maintained across reboot
  • Powered by an available USB port - no external power adapter required
  • Provides dual buffers for upstream and downstream data transfer
  • Supports remote wake up and power management control
  • Supports automatic handshake mode
Warranty Information
Warranty 2 Years
Hardware
Bus Type USB 2.0
Chipset ID Prolific - PL-2303
Interface Serial
Port Style Cable Adapters
Ports 1
Performance
Max Baud Rate 921.6 Kbps
Serial Protocol RS-232
Connector(s)

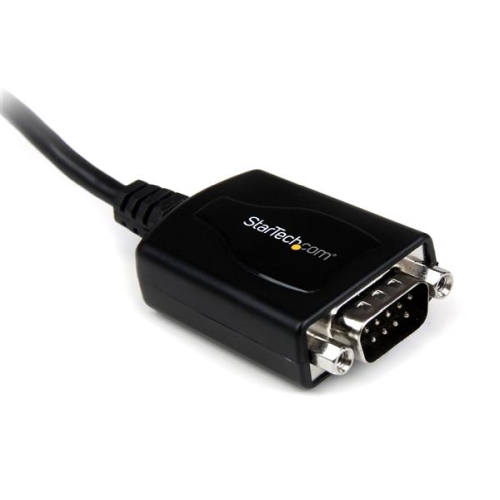

Connector Type(s) 1 - DB-9 (9 pin, D-Sub) Male

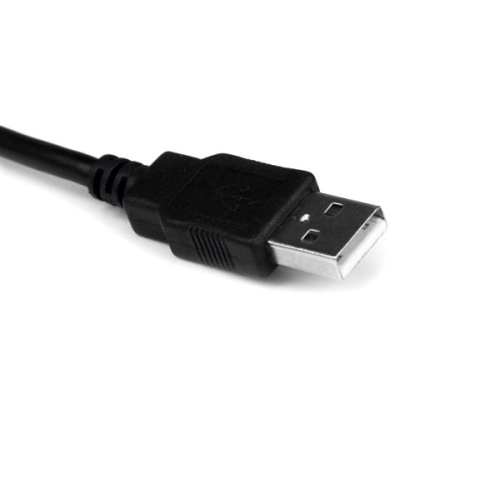

  1 - USB Type-A (4 pin) USB 2.0 Male
Software
OS Compatibility Windows PocketPC 2003 / 2000, Windows Mobile 5/6, CE 4.2/5.2, Embedded System 2009, XP Embedded, POS Ready 2009, 98SE, 2000, ME, XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2016
Mac OS X 10.6 to 10.12
Linux 2.4.x to 4.4.x LTS Versions only
Special Notes / Requirements
System and Cable Requirements PC with an available USB 1.1 (or above) port
Environmental
Humidity 5~85% RH
Operating Temperature -10°C to 80°C (14°F to 176°F)
Storage Temperature -20°C to 100°C (-4°F to 212°F)
Physical Characteristics
Cable Length 1 ft [0.3 m]
Color Black
Enclosure Type Plastic
Product Height 0.6 in [15 mm]
Product Length 15.7 in [400 mm]
Product Weight 2.5 oz [70 g]
Product Width 1.3 in [34 mm]
Packaging Information
Shipping (Package) Weight 0.3 lb [0.1 kg]

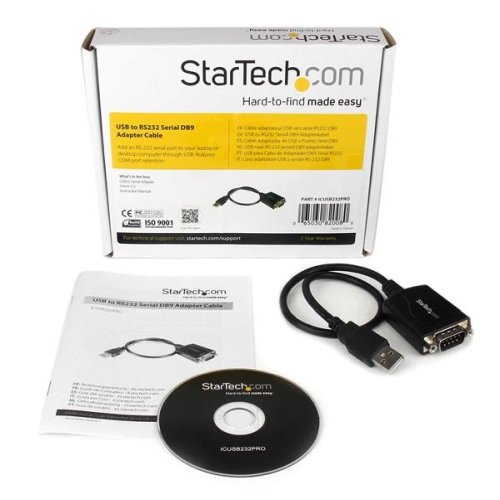

What's in the Box
Included in Package 1 - USB to Serial Adapter
  1 - Driver CD
  1 - Instruction Manual
