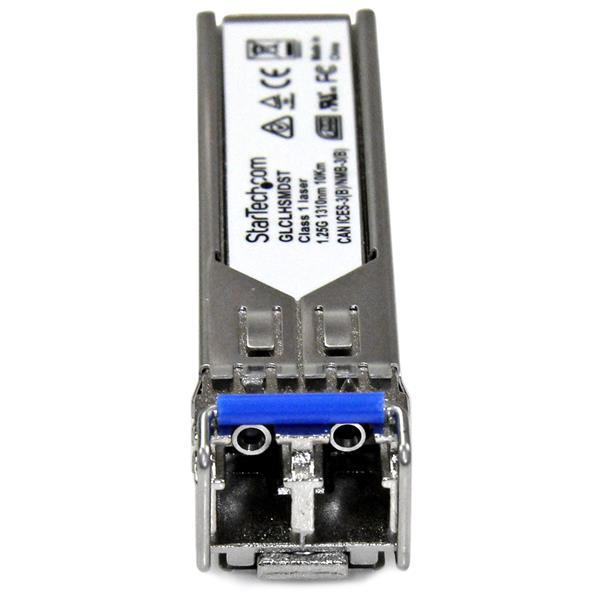

StarTech GLCLHSMDST Cisco Compatible SFP Transceiver Module 1000BASE LX/LH
SKU: UB19755
Model Name: GLCLHSMDST
Availability:
IN STOCK
Sale Price: $127.90 inc. GST
Quantity:
Features
  • 100% compatibility with Cisco GLC-LH-SMD guaranteed
  • StarTech.com SFP modules are backed by a lifetime warranty
  • Meets or exceeds OEM specifications and Multi-Source Agreement (MSA) industry standar
  • Low power consumption of less than 1 W
  • Hot-swappable with fiber-optic modules

The GLCLHSMDST is a Cisco GLC-LH-SMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX/LH compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

  • Wavelength: 1310 nm
  • Maximum Data Transfer Rate: 1.25 Gbps
  • Type: Single Mode / Multi Mode Fiber
  • Connection Type: LC Connector
  • Maximum Transfer Distance: 10 km (6.2 mi)
  • MTBF: 200,000 hours
  • Power Consumption: Less than 1 Watt
  • Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

Applications:

  • Replacing defective or damaged SFP modules in Cisco switches and routers
  • Expand your network to remote segments
Specifications:
Warranty Information
Warranty Lifetime
Hardware
Compatible Brand Cisco
Industry Standards IEEE 802.3z 1000BASE-LX/LH
Performance
Auto MDIX Yes
Compatible Networks 1000 Mbps (1 Gbps)
DDM Yes
Fiber Operating Mode Full-Duplex
Max Transfer Distance 10 km (6.2 mi)
Maximum Data Transfer Rate 1.25 Gbps
MTBF 200,000 hours
Type Single Mode / Multi Mode
Wavelength 1310nm
Connector(s)
Local Unit Connectors 1 - Fiber Optic LC Duplex Female
Special Notes / Requirements
Note For use in Gigabit fiber networking equipment and media converters
System and Cable Requirements MSA or Cisco compliant SFP port
Power
Power Consumption (In Watts) < 1 W
Environmental
Humidity 5~95% RH
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Physical Characteristics
Color Silver
Enclosure Type Aluminum
Product Height 0.3 in [8 mm]
Product Length 2.3 in [58 mm]
Product Weight 0.6 oz [18 g]
Product Width 0.5 in [12 mm]
Packaging Information
Shipping (Package) Weight 3.4 oz [95 g]
What's in the Box
Included in Package 1 - SFP transceiver
