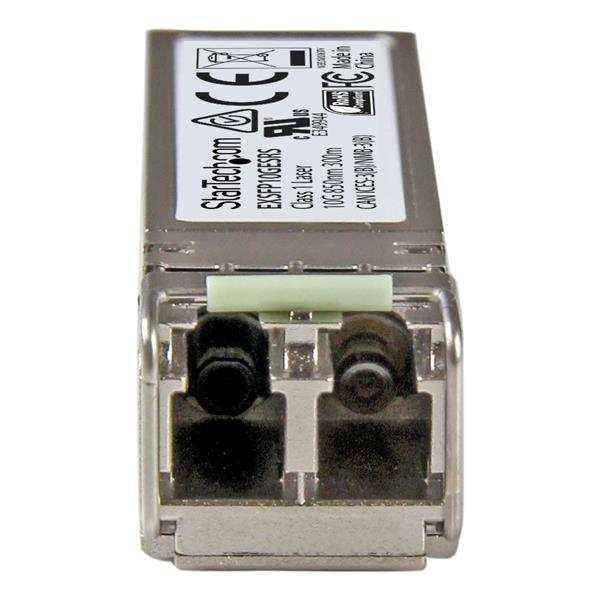

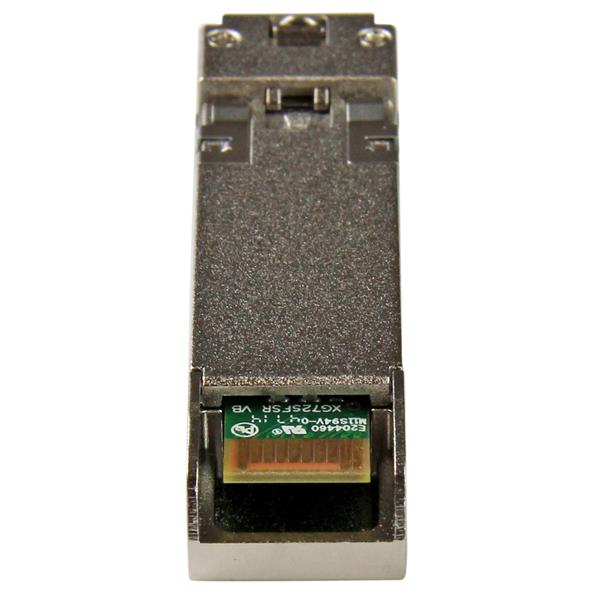

StarTech EXSFP10GESRS Juniper Compatible SFP+ Transceiver Module - 10GBASE-SR
SKU: BG39998
Model Name: EXSFP10GESRS
Availability:
IN STOCK
Sale Price: $458.30 inc. GST
Quantity:

Overview

The EXSFP10GESRS is a Juniper EX-SFP-10GE-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper® brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).

Technical Specifications:

  • Wavelength: 850 nm
  • Maximum Data Transfer Rate: 10 Gbps
  • Type: Multimode Fiber
  • Connection Type: LC Connector
  • Maximum Transfer Distance: 300 m (984 ft)
  • MTBF: 1,967,709 hours
  • Power Consumption: Less than 1.2 Watts
  • Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Technical Specifications

Product Numbers
Ingram Micro Australia 3578229
UPC Code 065030869959

Warranty Information
Warranty Lifetime
Hardware
Compatible Brand Juniper
Industry Standards IEEE 802.3ae 10GBASE-SR
WDM No
Performance
Compatible Networks 10 Gbps
DDM Yes
Fiber Operating Mode Full-Duplex
Max Transfer Distance 300 m (984 ft)
Maximum Data Transfer Rate 10 Gbps
MTBF 1,967,709 hours
Type Multi Mode
Wavelength 850nm
Connector(s)
Local Unit Connectors 1 - Fiber Optic LC Duplex Female
Special Notes / Requirements
Note For use in 10 Gigabit fiber networking equipment and media converters
System and Cable Requirements MSA or Juniper compliant SFP+ port
Power
Power Consumption (In Watts) < 1.2 W
Environmental
Humidity 5~95% RH
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Physical Characteristics
Color Silver
Enclosure Type Aluminum
Product Height 0.5 in [12.6 mm]
Product Length 2.3 in [58.4 mm]
Product Weight 0.7 oz [19 g]
Product Width 0.5 in [13.9 mm]
Packaging Information
Shipping (Package) Weight 47
What's in the Box
Included in Package 1 - SFP+ transceiver
