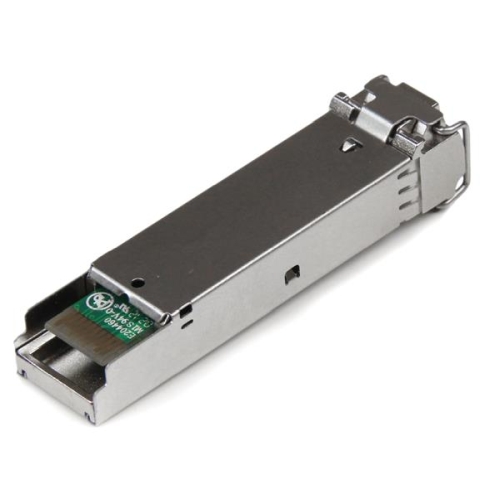

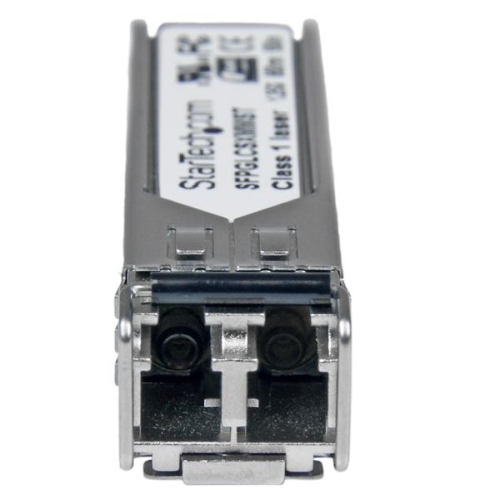

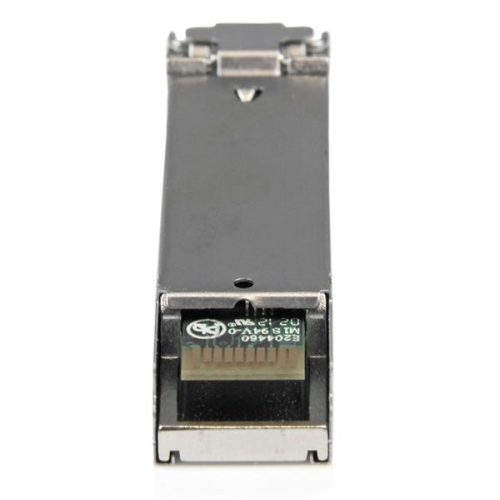

StarTech SFPGLCSXMMST 1.25Gbps Gigabit Fiber SFP Transceiver MM LC 550M
|
The SFPGLCSXMMST Cisco Compatible Gigabit Fiber SFP Transceiver Module MM LC - 550m (1804 ft) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a Multimode LC port on your Gigabit fiber networking equipment or fiber media converter.
Supporting data rates up to 1.25 Gbps, this LC Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
This 850nm multi-mode SFP module is compatible with the Cisco GLC-SX-MM transceiver. Also a perfect accessory for the StarTech.com PCI Express Open SFP NIC (PEX1000SFP2), or Gigabit POE Open SFP Media Converter (ET1110PSE) products.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com AdvantageWarranty Information | |
---|---|
Warranty | Lifetime |
Hardware | |
Industry Standards | IEEE 802.3z 1000BASE-SX |
WDM | No |
Performance | |
Compatible Networks | 1000 Mbps (1 Gbps) |
DDM | No |
Fiber Operating Mode | Half/Full-Duplex |
Fiber Type | Multi Mode |
Max Transfer Distance | 550 m (1804 ft) |
Maximum Data Transfer Rate | 1.25 Gbps |
MTBF | 3,381,761 hours |
Wavelength | 850nm |
Connector(s) | |
Local Unit Connectors | 1 - Fiber Optic LC Duplex Female |
Special Notes / Requirements | |
Note | For use in Gigabit fiber networking equipment and media converters |
System and Cable Requirements | MSA or Cisco compliant SFP port |
Environmental | |
Humidity | 30~70% RH |
Operating Temperature | 0°C to 70°C (32°F to 158°F) |
Storage Temperature | -40°C to 85°C (-40°F to 85°F) |
Physical Characteristics | |
Product Height | 0.4 in [10 mm] |
Product Length | 2.4 in [60 mm] |
Product Weight | 0.6 oz [16 g] |
Product Width | 0.5 in [12 mm] |
Packaging Information | |
Shipping (Package) Weight | 0.1 lb [0 kg] |
What's in the Box | |
Included in Package | 1 - 1.25 Gbps Multimode LC SFP |
